Product details

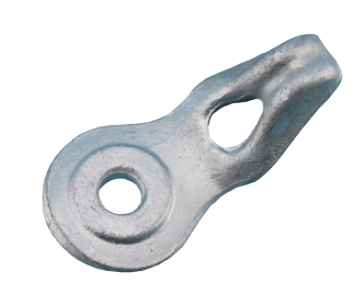

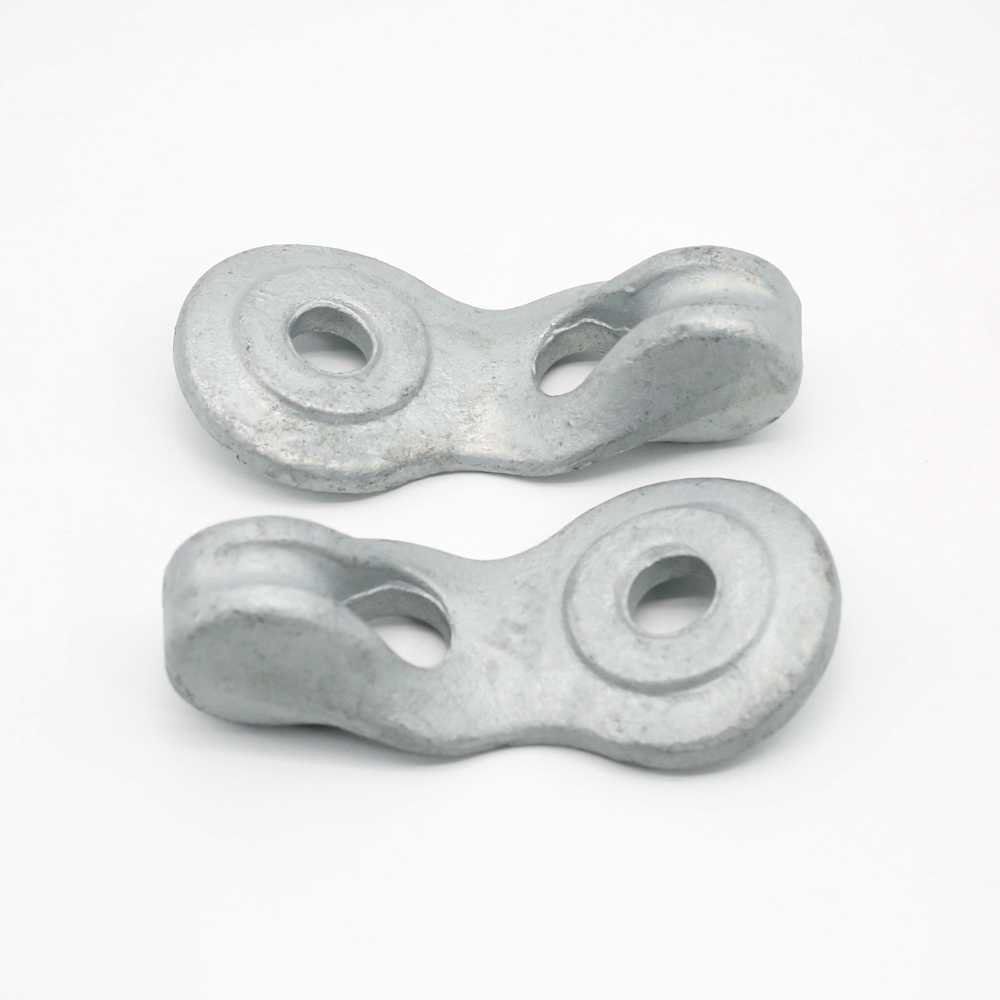

Angle Thimble Standard Eyelet Bolt

Angle thimble eyelets are mostly used to attach to thru-bolt or thread ends of angle or straight thimble eye bolts mainly for down guying. It is also a fastener as well as pole line hardware. It is made from forged steel material. In its finished state, it is hot dip galvanized in order to meet the right specifications.

Eyelets, also known as Bolt Eyes, are used under the head or nut of a bolt. All are compatible with the strength of the bolts used with them.

Straight Thimble Eyelets are used for span guys while Angle Thimble Eyelets are used for down guys. Standard Eyelets are used for deadending. Standard Eyelets and Straight Thimble Eyelets have a slotted hole for ease in inserting the bolt.

Material: Hot Dip Galvanized

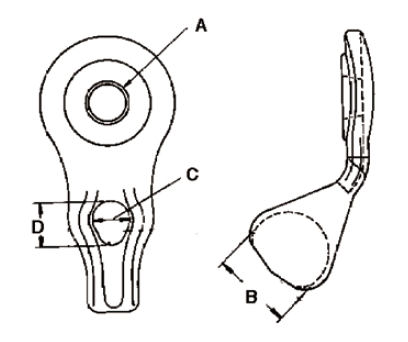

Angle Thimble Eyelet Specification

Part No.	Bolt Size	A	B	C	D	Weight
Part No.	Inch	Inch	Inch	Inch	Inch	Kg / Pcs
D0458	5/8	11/16	1.5	11/16	13/16	0.525
D0434	3/4	13/16	1.5	11/16	13/16	0.515

Buy Angle Thimble Eyelet from Yokelink

Yokelink Angle Thimble Eyelet are used for attaching to thru-bolt or thread end of straight or angle thimbleye bolt for down guying. It is made from drop forged steel, the finish is Hot dip galvanized to meet ASTM A153 specification

When you need Angle Thimble Eyelets, refer to above our catalog. We offer them in a full selection of sizes, provide the bolt size or part number to get a quote on these Angle Thimble Eyelets, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
