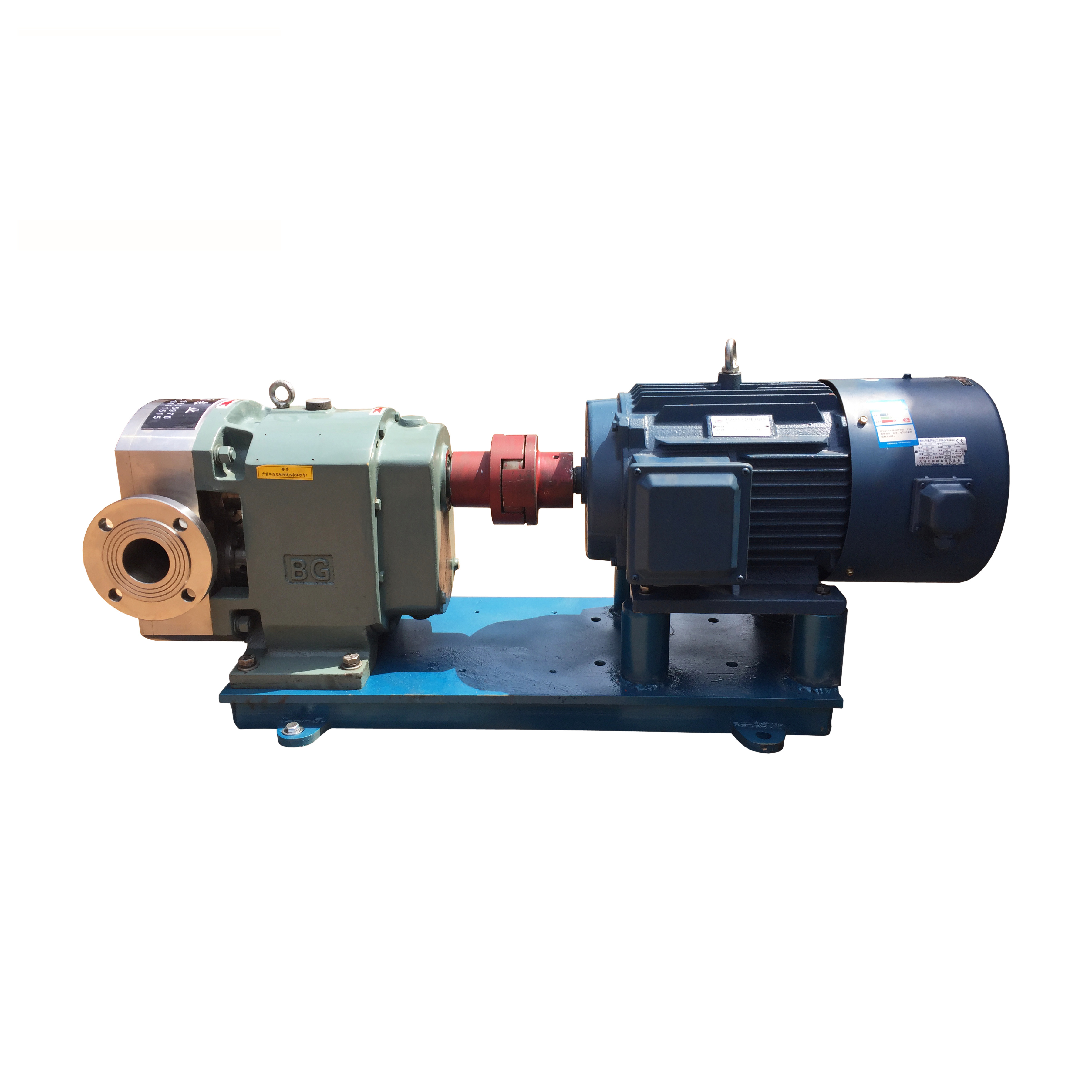

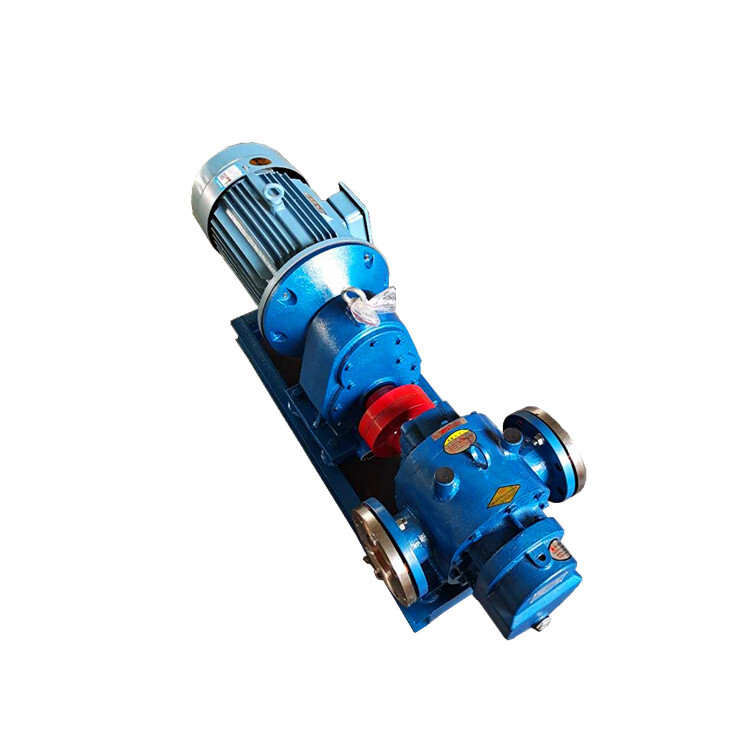

High viscosity rotor pump, syrup pump, heat preservation rotor pump1

3 year ago

25 0 

3 year

Product details

Product Overview

* LC series Roots rotor pump

LC high viscosity rotor pump has: low revolution, high efficiency, small volume, large flow, small power consumption, strong
self-priming ability, no oil, easy to use and other characteristics.It can be widely used for transporting petroleum and petroleum
products (gasoline can be changed into copper pump blade) and various oils and liquids in factories.Such as crude oil, paint,
lubricating oil, glass glue, fatty acid, toothpaste and light alkaline (soap processing) liquid etc.;Food processing can transport
a variety of liquids, such as soybean milk, yeast, sugar, etc.Loading and unloading various tankers and tankers, such as fast,
high efficiency, easy to use, can reverse and reverse work.
LC high viscosity Root pump, solve the transfer of asphalt and condensed oil from the system, in the pump shell surface or end cap
with insulation layer, the use of steam or thermal oil circulation pump studio heat preservation, so as to pump continuous work
and intermittent work, provide convenient and good conditions.

FEATURES AT A GLANCE

Product features
1. Roots pump has compact structure, few parts, convenient maintenance and operation, and reliable operation.
2, roots pump rotor relative sliding speed is very low, smooth operation, less wear, small noise, long service life.
3. Roots pump has large suction side area, slow change of volume between teeth, small pressure pulsation, high suction capacity,
up to 6m high.

High Viscosity Rotor Pump Syrup Pump Heat Preservation Rotor Pump9

High Viscosity Rotor Pump Syrup Pump Heat Preservation Rotor Pump8

Right elevation

Left elevation

High Viscosity Rotor Pump Syrup Pump Heat Preservation Rotor Pump10

Front elevation

PRODUCT SPECIFICATIONS

Model	Capacity m³/h	Pressure Mpa	Diameter mm	Power KW
LC-10/0.6	10	0.6	40	3
LC-18/0.6	18	0.6	65	5.5
LC-38/0.6	38	0.6	80	7.5
LC-50/0.6	50	0.6	100	11
LC-80/0.6	80	0.6	150	30
LC-100/0.6	100	0.6	200	37

PRODUCT CONFIGURATION

High Viscosity Rotor Pump Syrup Pump Heat Preservation Rotor Pump11

CHANGCHAI high power engine

High Viscosity Rotor Pump Syrup Pump Heat Preservation Rotor Pump12

Imported EATON control valve

Japan Shimadzu hydraulic motor

SALES AND SERVICE NETWORK

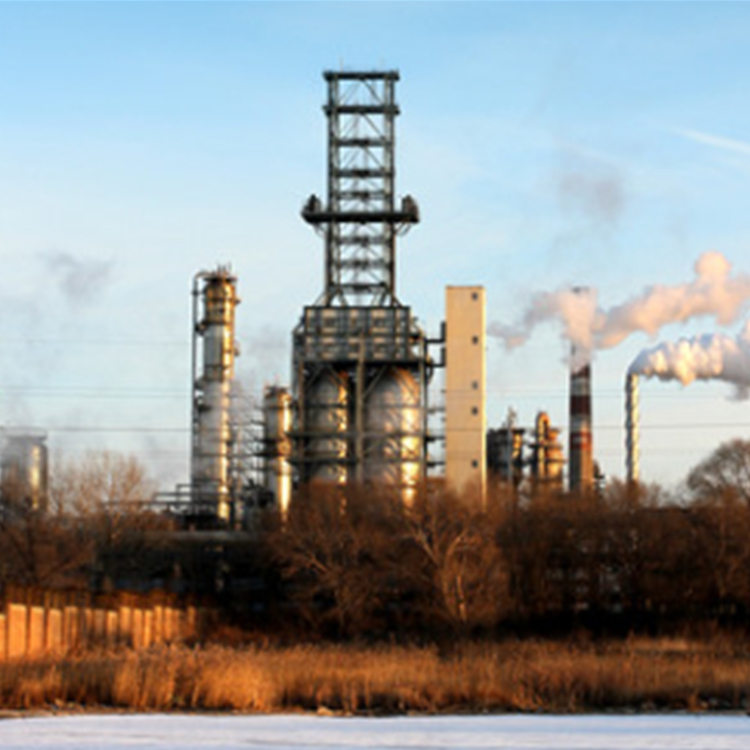

Successful Project

Project in Thailand

Project in India

Project in Russia
