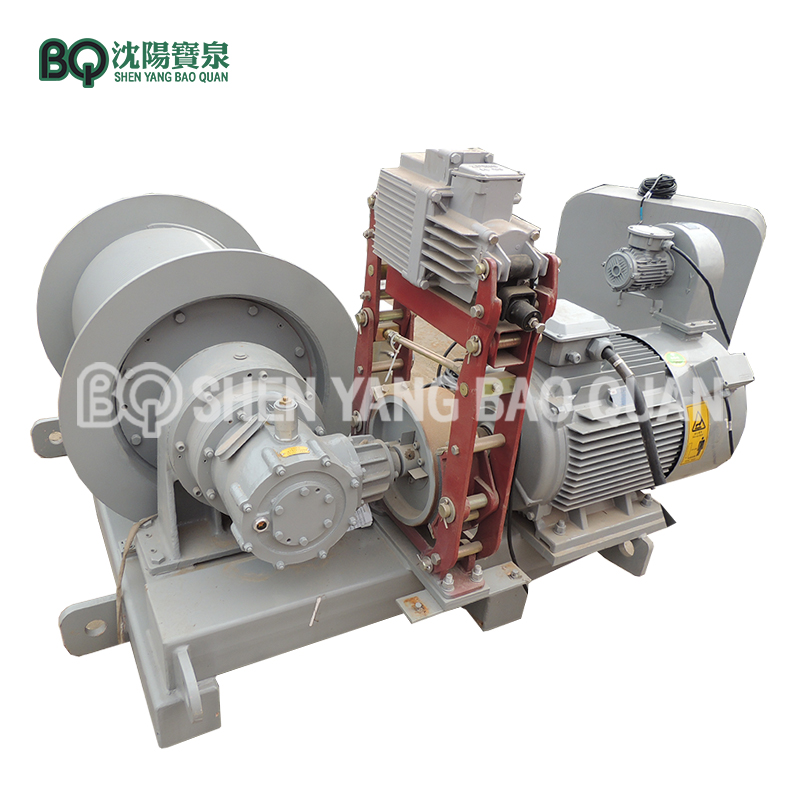

Tower Crane Parts : 45JLF25A Hoisting Mechanism

Tower crane mechanism is one of the most important tower crane parts. Tower crane has three common mechanisms that is hoisting mechanism, trolleying mechanism, and slewing mechanism. Tower crane hoisting mechanism with the model of 45JLF25A Hoist Mechanism is popular used for 10 ton tower crane. Tower Crane Hoist Motor is 45kw.

Product Parameter (specification) of the Tower Crane Hoisting Mechanism:

Hoisting Mechanism
  • Type : 45JLF25A
  • Motor Power : 45 KW
  • Reducer Ratio : 38.5
  • Rated Load : 10 t
  • Rated Single Rope Speed : 80m/min(50Hz)
  • Rope Diameter : φ14mm
  • Rope Capacity : 615m
  • Weight : 1495 kg
