Horizontal steel coils strapping machine

4 month ago

2 0 

Shenzhen Packway Technology Development Co., LTD

2 year

Product details

Superworker(DGR) strapping machine can provide customers with 10 kinds of strapping machine heads, 3 kinds of connection joint ways(Sealing, punching and welding). The high safety and high stability are the most important factors we cherish, which can not only guarantee workers' personal safety, but also reduce running faults, greatly imporve the entire production. Now DGR strapping machines have been applied by most of Chinese steel factories as well as overseas metallurgy companies.

We will provide tailored strapping solutions for every user until you are satisfied. Otherwise, DGR will also provide installation, commissioning and training service, until the equipment operates normally and devotes to production.

Pneumatic tensioning seal type automatic strapping machine head

1. Power source

-Electric: AC380V, belt feeding motor 2.2kW, logic motor 1.1kW, reduction ratio 1:120.

-Pneumatic: tensioning cylinder, belt brake cylinder, pinch roller cylinder, buckle pressing cylinder, buckle feeding cylinder.

2. Binding speed

-It takes about 9.8s for the binding machine head to finish one steel strap binding.

3. Connection way

-Sealing connection, max load 200 buckles once.

4. Tensioning force of steel belt

-Max.20000N(Adjustable)

5. Common consumables

-Belt feeding roller, belt cutter, buckle bitting jaws components.

6. The maintenance of entire machine

-Suggest 6 months a minor maintenance, 12 months a major maintenance.

7. Common Maintenance

-According to normal equipment standards.

8. Specifications of steel belt

-Width: 19/25/32mm; thickness: 0.8~1.2mm.

9. Applying environment

-Super high temperature, normal temperature, low temperature, and all kinds of complicated environment.

10. Application

-Hot-rolled coil/plate, high strength steel, cold-rolled coils, steel ingots, super heavy pipe piles.

11. Strength of connection joint

-About 75% of the steel strap itself.

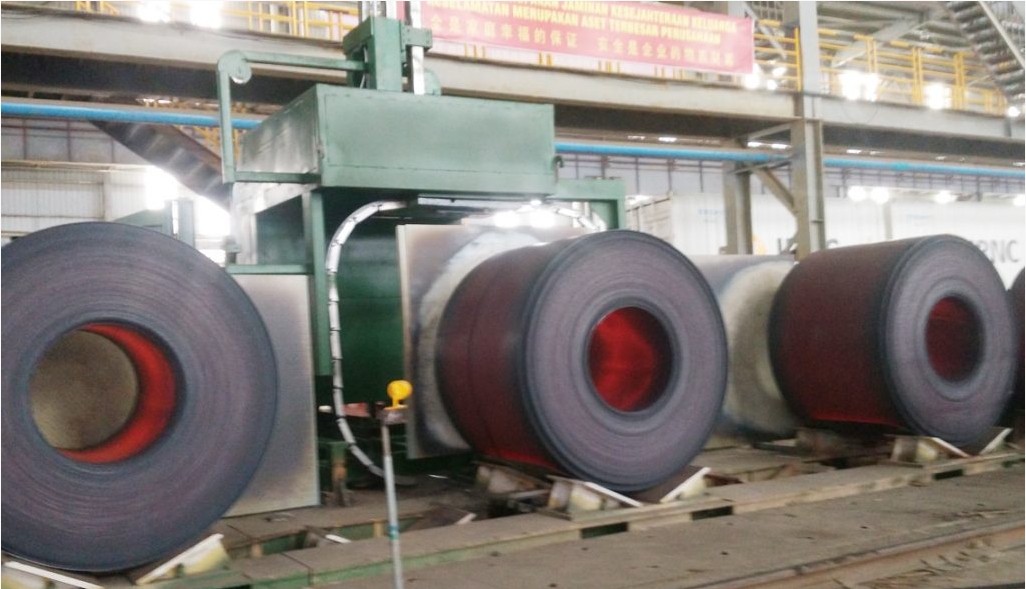

Hot-rolled steel coils strapping

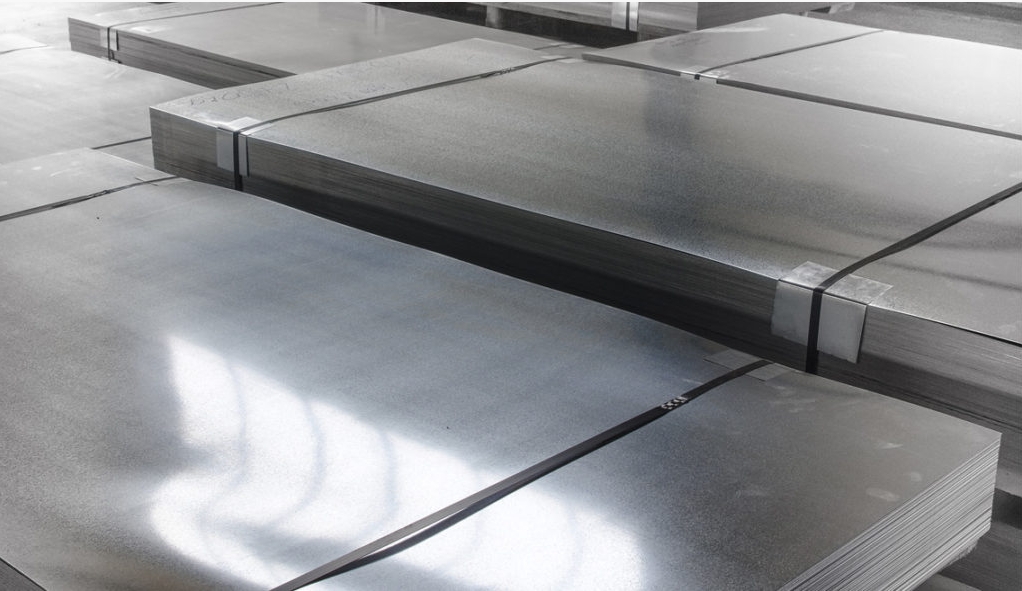

Steel plates strapping
