Black Liquor Filter For Paper Making

Description:

After papermaking raw materials are cooked by alkaline pulping, the black liquor in the pulp must be extracted. It is used for alkali recovery, but no matter what kind of black liquor extraction equipment is used, there are more or less fibers or various residues in black liquor (especially when the filter screen of the extraction equipment is broken or the pipe or the valve is damaged, etc., it may cause more fibers in the black liquor)

During evaporative concentration, these fibers tend to deposit on the tube (plate) wall of the evaporator,Scale the heating tube (plate) and affect the evaporation efficiency. Therefore, before the black liquor is sent to the alkali recovery,the fiber should be removed through the black liquor filtration equipment first, and the fiber content of the black liquor is required to be reduced to below 60 or 40 mg/L to meet the requirements of the evaporation station.

This machine is a new type of advanced equipment for filtering pulping black liquor in the modern world. It absorbs nearly a new generation of black liquor filtration equipment developed on the basis of the new technology introduced in the period. It adopt high new structures such as high-speed rotors and microporous filter drums. Working under pressure is better than traditional screen.

Besides,we can also produce Pressure Screen and Parts for paper mills,screen basket, screen rotor,Wedge Wire Screen Plate,Stainless steel Impeller, Automatic Filter, Bag Filter,Scraper Self-cleaning Filter, Multi Media Filter,Quartz Sand Filter,Caldle Filter,Ultra Precision Filter,Cartridge Filter And Parts,.

Main applications:

The pressure type outflow black liquor filter is mainly used for black liquor filtration in chemical pulping process.

Main Features:

1.Bubbling rotor, energy saving and good cleaning effect

2.High opening rate of microporous hole screen basket, high fiber interception eficiency

3.High operating pressure (max to 1.6Mpa)

4.Double-side mechanical seal ensure safety and reliable

5.Optimized device structure, installation occupies less space

Technical Parameters:

Model	HT-0.38	HT-0.51	HT-0.76	HT-1.06	HT-1.42	HT-1.67	HT-2.27
Screen Area (m2)	0.38	0.51	0.76	1.06	1.42	1.67	2.27
Screen Concentration (ppm)	300-1000
Hole Size(mm)	0.08-0.15
Power (Kw)	37-45	45-55	55-75	75-90	110-132	132-160	132-600

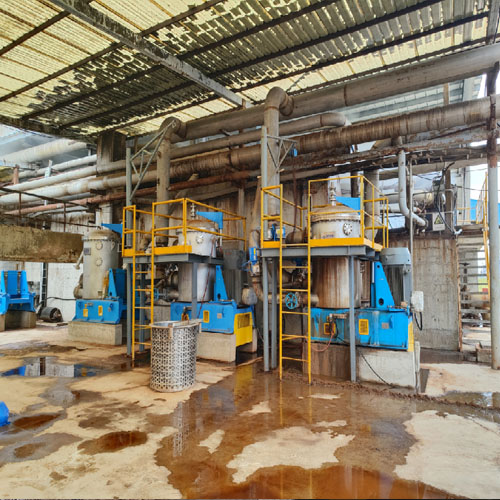

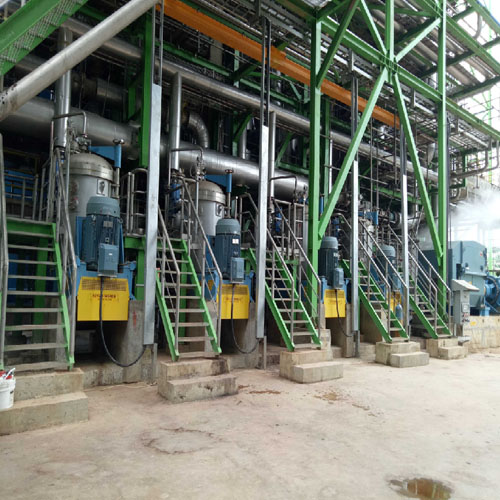

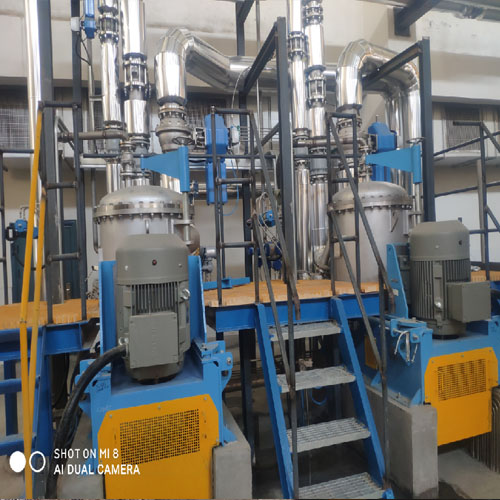

Customer Site Installed our Black Liquor Filter Machine:
