Albany brand is a very famoust brand of high performance industrial doors in the world. Albany PVC high speed doors are famous for its professional tailor made design and high level quality. But according to customers feedback in many countries, many clients meet some problems and difficulty when they want to purchase Albany PVC high speed doors. First problem is high price. For many clients especially in developped countries, it is unaffordable to buy Albany PVC high speed doors for their industrial facility. Second issue is long delivery time, namely around several month. This may be not be acceptable for many ongoing projects schedule. Third issue is that, it is very difficult to get replacement parts when the door is failure or damaged.
To solve such difficulty, Kenvo Door now produces similar design PVC high speed doors as Albany brand. Our lead time is normally 15 days only from order date. This saves around two or three month time for clients. The unit price is only 20-30% of Albany high speed rolling doors . This saves big purchase cost for clients directly at the beginning. For future maintenance, we adopt advanced Servo technology motor and controller to achieve similar level of stability with Albany PVC high speed doors. And what's more, we will also directly offer free spare parts according to order quantity. If free spare parts are not enough, clients can also get more spare parts as their need, in very low price and short time. This will reduce long term cost obviously of using PVC high speed doors for overseas industrial clients.
How to operate Albany style high speed door?
Is Albany style speed door safe for people and vehicles ?

More data you may want to know
SPECIFICATIONS |
DATA |
Max Size |
W6000mm*H6000mm |
Application: |
both Exterior and Interior use |
Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable max 2.5m/s ) |
Running Frequency | Max 400 cycles per hour (1 cycle=1 opening & 1 closing) |

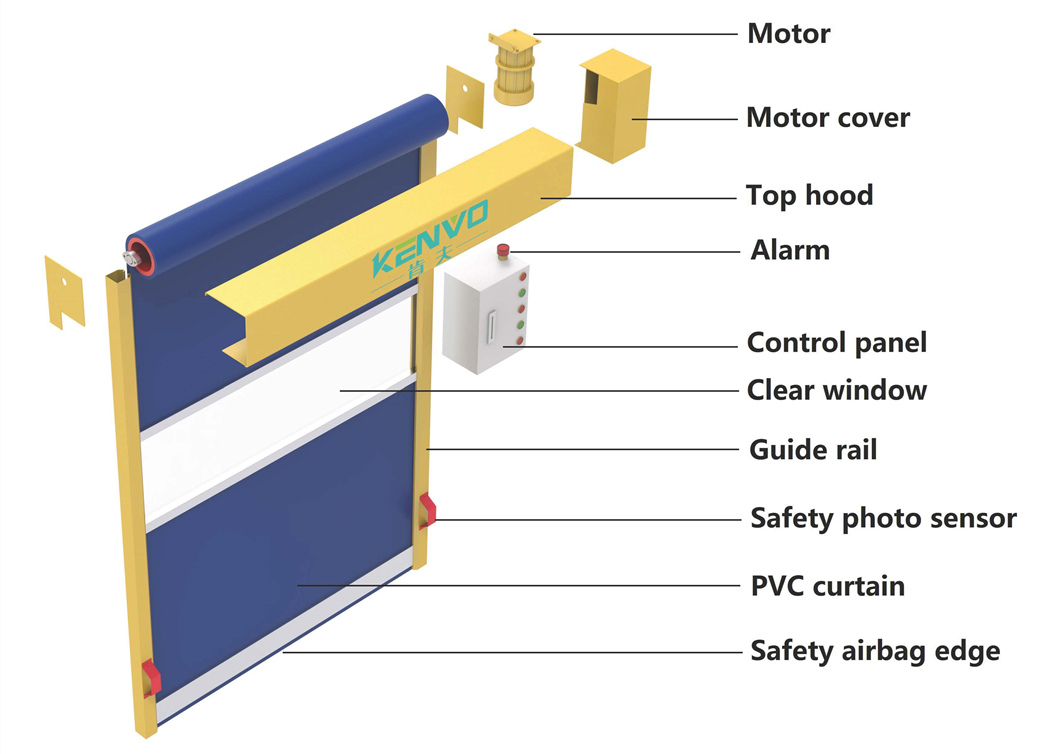

Side Track & Top Cover |
Standard Material: galvanized steel with surface powder coating; Side tracks: 125mm*T1.5mm CNC forming shape Top cover & Motor cover: T1.2mm CNC forming shape |
Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W |
Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
Operation Device |
Standard: wall-mounted control buttons at both sides Optional: Touchless hand detector, Touchless foot detector, Motion radar sensor, Loop vehicle detector, Pull-cord switch, Remote control |

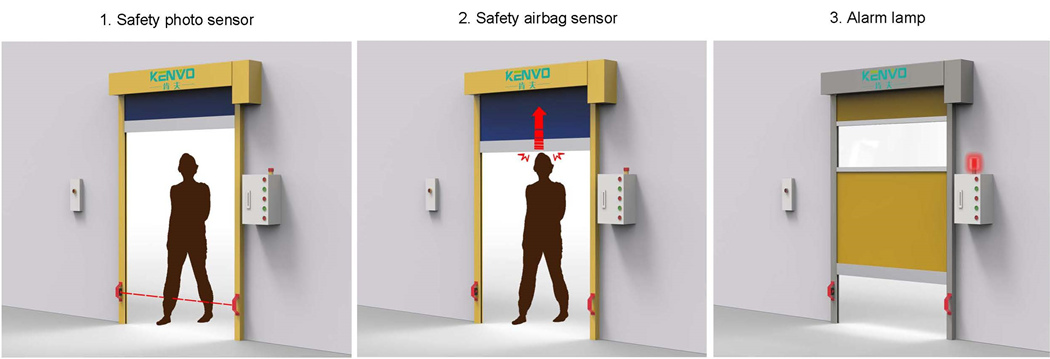

Safety Device |
1.Safety photo cell sensor 2.Wireless safety edge sensor 3. Alarm lamp |
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.0mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors:
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
