roller shutter
3 year ago
|
NO. |
name |
quantity |
|
Main roll former |
||
|
1 |
Un-coiler (2 tons ) MANUAL |
2 |
|
2 |
Main roll former |
2 |
|
3 |
Saw cutter |
2 |
|
4 |
PLC control cabinet |
2 |
|
5 |
Output table with rollers(6 meters) |
2 |
Main parameter
1. Running material: Aluminum & Pre-painted Steel
2. Forming speed:6-15m/min
3. Forming steps: 16(as per drawing A)
Forming steps: 8(as per drawing B)
4. Thickness: 0.8mm-1mm
5.Roller material: GCr15、 HRC 60.Quchend; roller diameter φ120
6. Material of shaft: #45 steel, China standard
7. Drive system: chains Transmission system,
8. Main Motor Power: 5.5 KW
9. Cutting system: Flying saw cutting (3KW), cut off after forming.
10. PLC Control system: TOUCH SCREEN: DELTA
PLC: DELTA
INVERTER: DELTA
ENCODER: OMRON
Low components of electricity: Schneider Germany
11. Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work place
12. Un-coiler: manual un-coiler: 2 tons capacity.

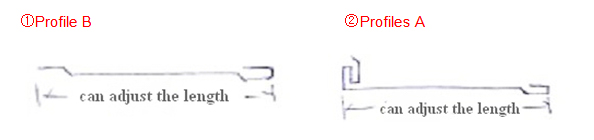

13. Drawings of profile
14. Dimension of Profile A: 6500*900*900MM Weight: 4Tons
Dimension of Profile B: 3000*900*900MM Weight: 2.5Tons
15. The picture of profiles:

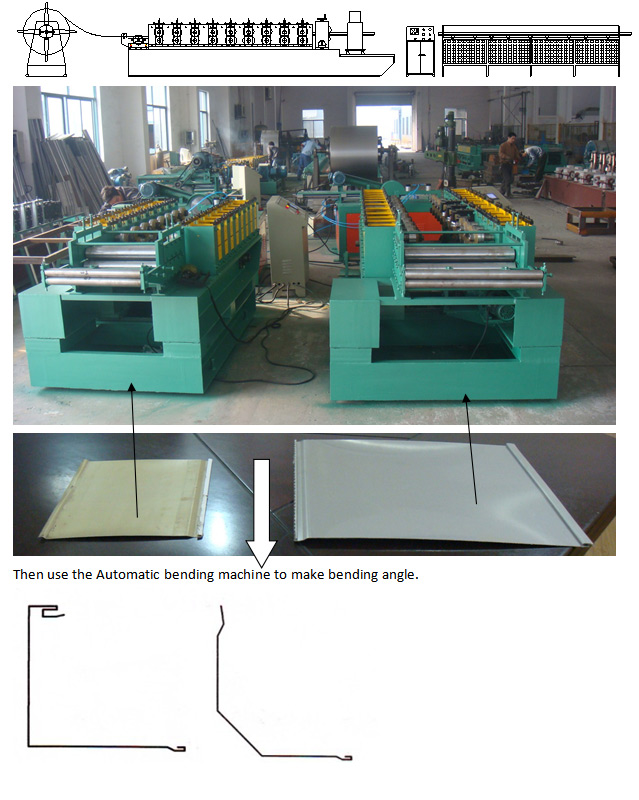

16. Main consist of the machine
Un-coiler ----- Feeding device ----- PLC control -----Roll forming ----- Pneumatic flying saw device--- Run out table
