WF pulverizer
3 year ago
Main application
The air cooled pulverizer machine utilizes the relatively high-speed operation between the movable chain disc and the fixed one, so that the materials are crushed by the impact of the gear plate, the friction and collision of the materials with each other.Crushed material can be discharged directly from the grinding chamber through the discharge port.The grinding machine is equipped with a high speed rotary cutter, so that the air flow in the crushing room is strong enough to eliminate heat in the crushing room,so the crushing machine runs smoothly, the chamber will not overheat.
TECHNICAL DATA
|
Model
|
150
|
250
|
350
|
500
|
|
Capacity（kg/h）
|
20-80
|
30-200
|
50-300
|
80-500
|
|
Size of input granules（mm）
|
< 10
|
< 10
|
< 12
|
< 15
|
|
Size of output granules(mesh)
|
12-120
|
12-120
|
12-120
|
12-120
|
|
Motor power（kw）
|
2.2
|
5.5
|
7.5
|
11
|
|
Speed of principal （axis r/mim）
|
3000
|
2900
|
2900
|
2800
|
|
Weight（kg）
|
185
|
195
|
200
|
320
|
|
Overall size（L×W×H）（mm）
|
550×420×1400
|
770×750×1500
|
870×750×1608
|
960×750×1750
|

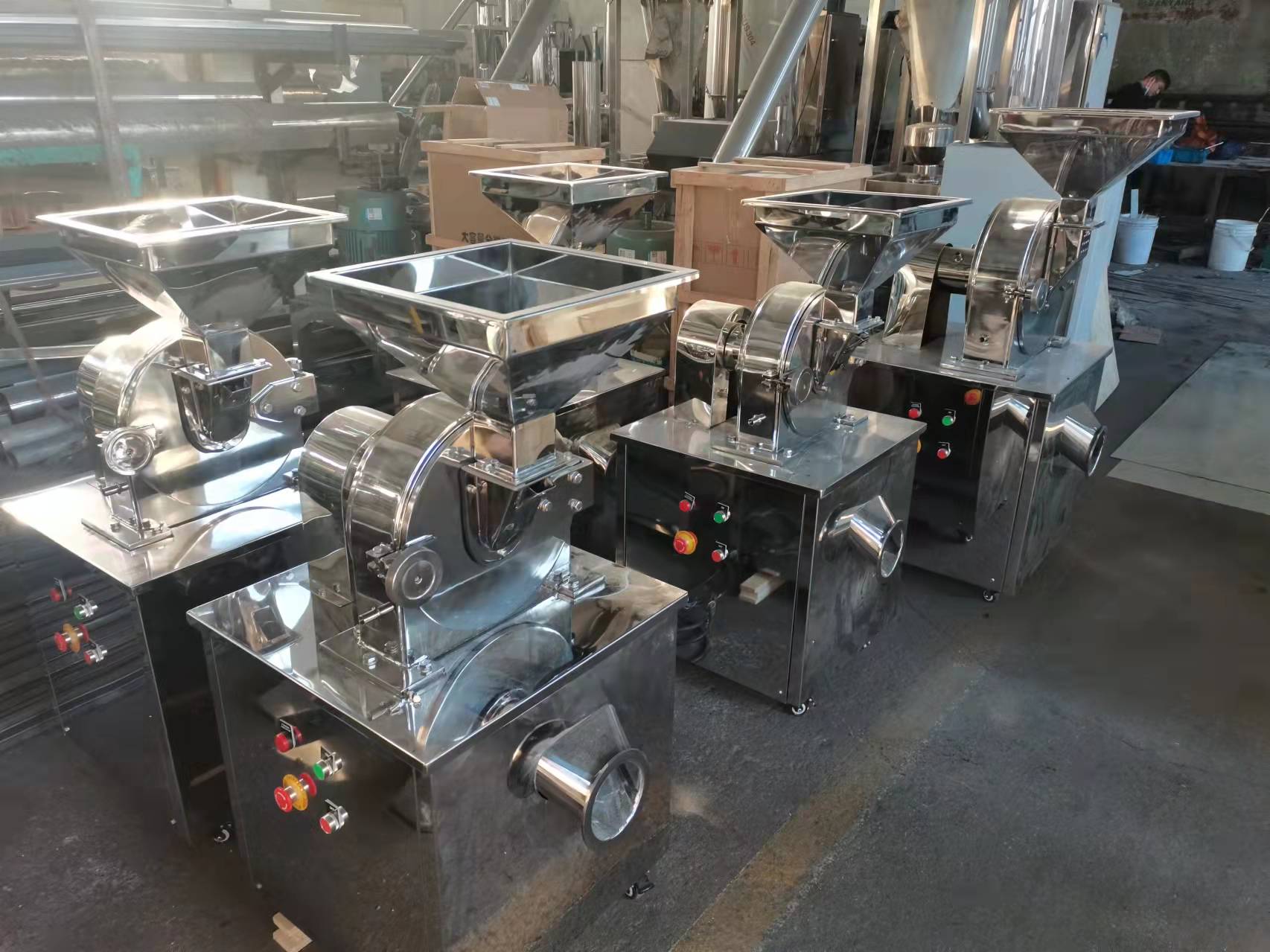

PRODUCT DISPLAY
