Encoder
4 year ago

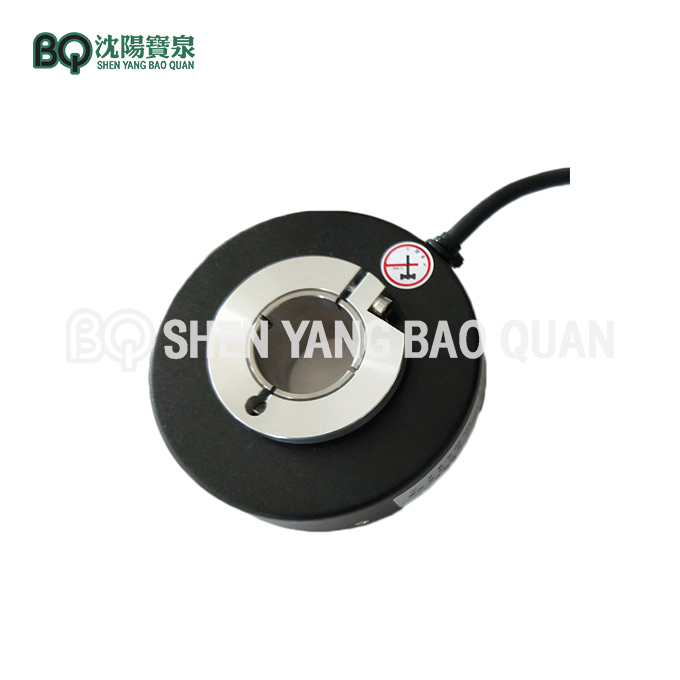

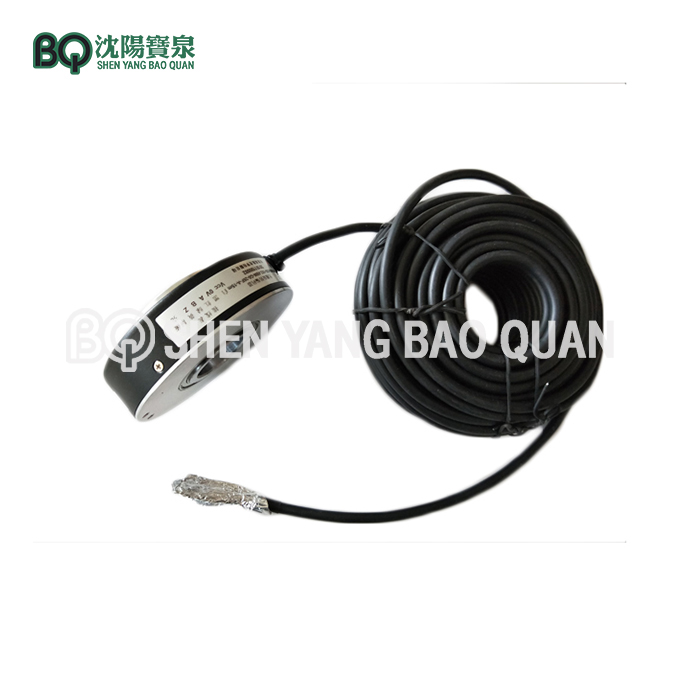

Incremental Encoders for Tower Crane
Precise optical sensor technology and rugged magnetic inductive technology:The incremental encoder for precision mechanical and rotational displacement records and accurate transmission
of electrical signals provides the essential foundation for reliable digital positioning control.
Simple structure, robust construction, superior performance:The incremental encoder can work in very harsh environments, such as high impact (vibration) tremble, easy contaminated,highandlow temperature changes.
High accuracy,wide range of applications:
The incremental encoder can provide economical and reliable automation solutions for users.
Machine characteristics
Way shaft
hollow shaft
Sensing method
Optical
Max. resolution
≤3000 PPR
Supply voltage
5VDC，5-30VDC，9-26VDC
Power consumption(no load)
max. 125 mA
Pulse frequency
max. 300 KHz
Shaft diameter
Φ30、Φ35、Φ38、Φ40、Φ42、Φ45 mm
Protection
IP54/IP65
Speed
max. 3000RPM
Shaft loading
max. 100 N Axial ； max. 200 N Radial
Starting torque
<0.1Nm
Materials
Hollow shaft ：Stainless steel
Flange ：Aluminum alloy
Housing：Aluminum alloy
Working temperature
-40℃…+85℃
Storage temperature
-40℃…+85℃
Weight
approx. 1kg ( Cable2m)
