ground screw drilling

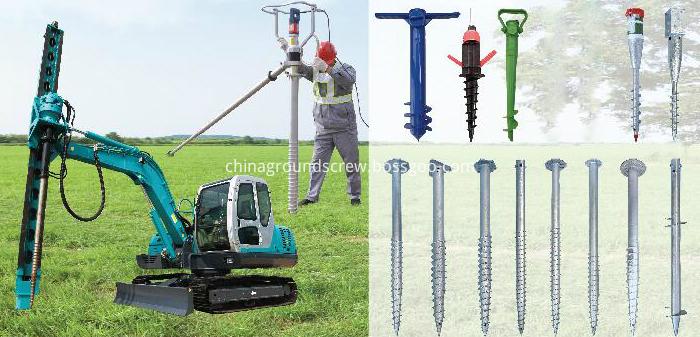

Ground Screw Foundation are suitable for natural ground, also can be installed in rock and tarred surfaces.And the use of Ground Screw Pile not depend on the weather condition,not damage to surrounding landscape,so Ground Pile has been widely used in construction engineering.Including the ground installation of photovoltaic solar panels.

Automatic pipe cutting machine for steel pipe cutting,automatic pipe cutting machine ,smooth cut,precise length of steel pipe.Automatic welding robot welding part of Screw Pile,automatic welding can reduce the different of manual operation,automatic welding neat,continuous,smooth.Automated machines have greatly improved production efficiency and product quality.

Length of the F Series Ground Screw : 550-6000 mm .

Steel Screw Pile's diameter: 48 mm, 68 mm, 76 mm, 89 mm, 114 mm, according to clients' request.

Thickness of Screw Pile : 2.75 mm, 3.00 mm, 3.75 mm, 4.00 mm.

Flange diameter: 200 mm, thickness: 8 mm or according to clients' request.

Surface treatment : Hot dip galvanized, according to DIN EN ISO 1461-1999, thickness of coating zinc: more than 80 micron.The dense zinc layer protects the Steel Ground Screw from external corrosion in the outdoor use.

Common size of Flange Ground Screw are like the below :

76*3*1000*200*8

76*3*1200*200*8

76*3*1500*200*8

76*3*1800*200*8

76*3*2000*200*8

76*3*2500*200*8

89*3.75*1200*200*8

89*3.75*1800*200*8

89*3.75*2000*200*8

114*4*1500*200*8

114*4*1800*200*8

114*4*2000*200*8

114*4*3000*200*8
