diamond stretched expanded metal polished stainless steel expanded metal mesh1
3 year ago
Alibaba sale diamond stretched expanded metal/polished stainless steel expanded metal mesh
Expanded metal is, also known as metal mesh, expanded metal mesh, iron sheet, diamond mesh heavy expanded metal , pedal mesh, perforated metal , aluminum mesh, stainless steel wire mesh, granary wire mesh , antenna metal mesh, filter mesh, loudspeaker mesh and so on. It is expanded material having grids form after processed by punching and shearing machine.

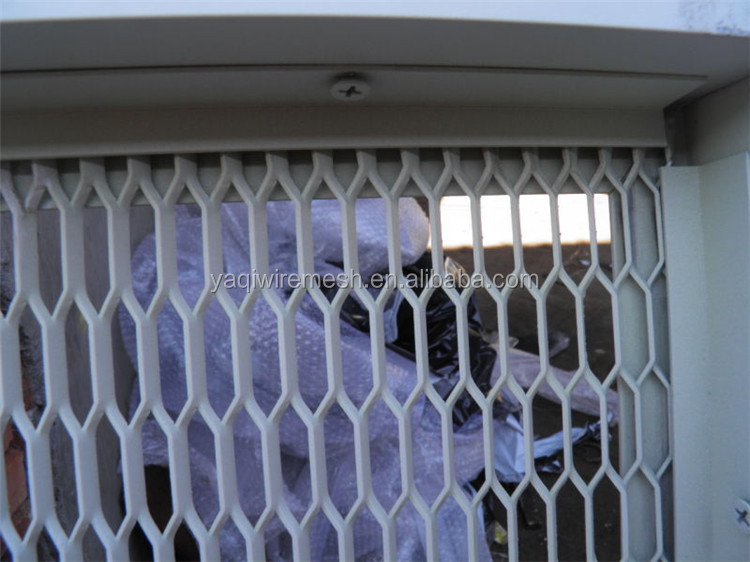

Expanded metal fence is available in both medium and high security grades. It is made from special carbon steel, stainless steel or aluminum to increase tensile strength with diamonds small enough that it is virtually difficult to cut, climb or crawl under.
This type of fencing offers greater strength and durability than traditional chain-link or wood fencing.Expanded metal fence advantages also include low wind-resistance, wear-resistance,one-piece construction and ventilation properties.
<1>Expanded metal mesh Material
Low carbon steel, stainless steel, aluminum, copper, nickel plate, aluminum-magnesium alloy and so on.
<2> Expanded metal mesh Features
Stamping, stretching, beautiful, and durable.
<3> Expanded metal mesh Surface treatment

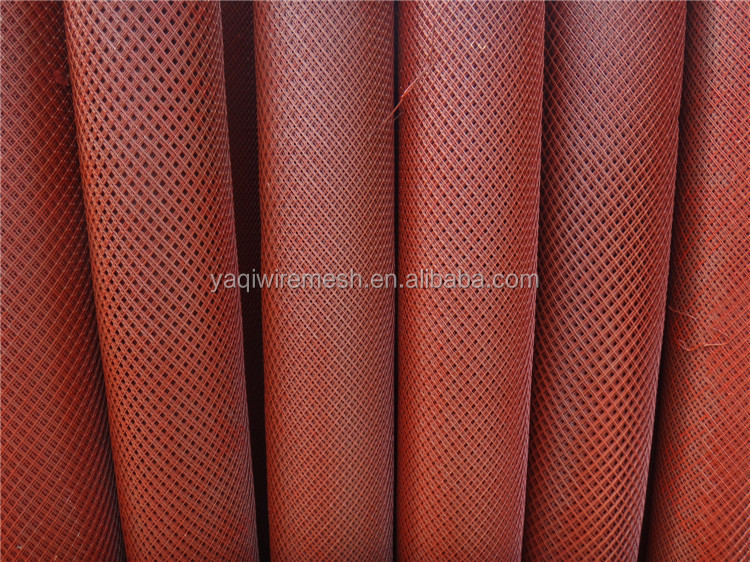

PVC coated,hot-dipped ,
galvanized,anodic oxidation
and spraying antirust paint
<4>Expanded metal mesh Specification
| Thickness(mm) | SWD(mm) | LWD(mm) | Strand(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
