High Quality Double Horizontal Wire Fence 5/6/5 Double Wire Mesh Fence Panels1
4 year ago
Double Horizontal Wire Fence 565 – Strong Garden Protection with Modern Clean Lines
8/6/8mm Double Wire | 200x50mm Mesh | 1.0-2.4m Height | HDG+Powder Coated | Safe Edges
Get a Quote: Provide panel height, post type, coating color, total linear metres, and destination port. Quote in 12h.
565 Double Wire Garden Fencing Overview
Double horizontal wire fence 565 uses 8mm twin horizontal wires and 6mm vertical wires for superior rigidity and a clean, snag-free surface ideal for garden boundaries. All vertical wire ends are concealed inside the horizontal channels, making it safe for children and pets while maintaining an open view.
ANJIA panels are hot-dipped galvanized then powder coated in any RAL color, offering 15+ years of weather resistance. The 200x50mm mesh excludes rabbits and stray animals yet lets light through. Pre-punched posts and clamp brackets allow fast installation; custom heights and widths available.

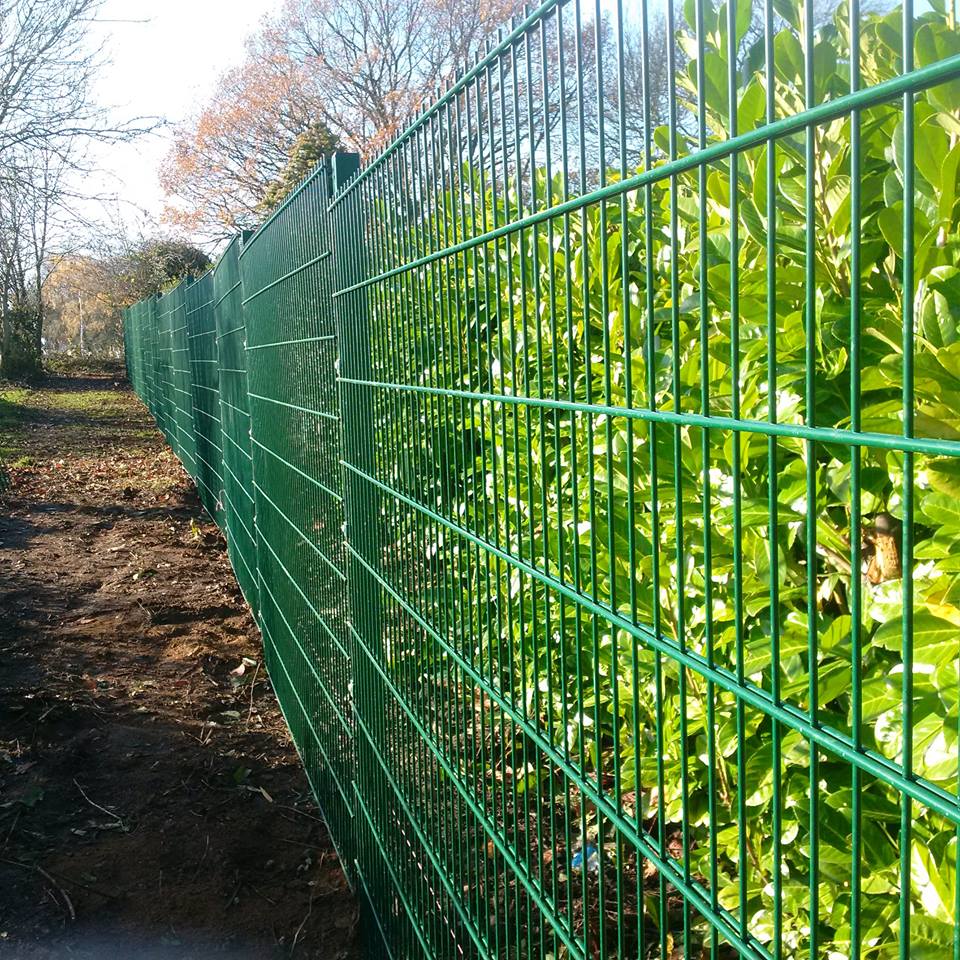

565 double horizontal wire fence panel
Why Choose 565 Double Wire Fence
Twin 8mm horizontal wires sandwich the 6mm verticals, keeping panels flat and sag-free even on long runs.
All vertical wire tips are tucked inside horizontal tubes – no sharp ends, safe for play areas and gardens.
200x50mm mesh blocks rabbits, hares, and small dogs while letting sunlight and airflow through to plants.
HDG core + UV-stable polyester powder coat resists sprinklers, fertilizer, and sun for 15+ years. RAL color matching available.
565 Double Wire Fence Specifications
| Parameter | Specification |
|---|---|
| Product Name | 565 Double Horizontal Wire Fence Panel |
| Wire Configuration | 8/6/8mm (horiz. double 8mm, vertical 6mm); also 5/6/5mm |
| Mesh Aperture | 200x50mm (opt. 150x50, 100x50mm) |
| Panel Height | 1.0/1.2/1.5/1.8/2.0/2.4m |
| Panel Width | 2.0m, 2.5m (custom length) |
| Post Type | Square 60x60, 80x80mm; round 60mm dia. |
| Coating | HDG + polyester powder coated (RAL colors) |
| Fixing System | Flat clamp bars + tamper-proof bolts |
| Standards | ISO 9001, EN 10223-6, BS 1722-14 |
Garden & Landscape Applications
Request a Garden Fence Quote
- Panel height and total linear metres of your boundary
- Wire configuration: 8/6/8mm (565) or 5/6/5mm
- Powder coat color (RAL 6005 green, RAL 9005 black, etc.)
- Post type and gate needs
- Quantity and destination port
Send these details. ANJIA returns factory quote, CAD layout, and container plan within 12 hours.
Packing & Delivery
Packing: Steel pallets with foam separators + waterproof film.
Container: 20GP ~300-400 panels; 40HQ ~700-900 panels.
Lead Time: 15-20 days (stock sizes); custom RAL +5 days.
OEM/ODM: Custom heights, mesh, posts, and branded packaging.
Quality Control
Raw Material: Wire tensile & coating weight checked.
In-Process: Weld strength, mesh alignment, powder adhesion tested.
Final: Flatness, color match, packing inspection. SGS/BV inspection welcomed.
Related Products
3D Curved PVC Fence, Flat Welded Mesh Panel, 358 Anti-Climb Fence, Chain Link Fence, Temporary Fence, Garden Gate, Razor Wire, Gabion Basket
Double Wire Fence FAQ
It refers to wire diameters: 5mm horizontal doubles and 6mm verticals. ANJIA also offers 8/6/8mm for heavier duty.
No. UV-stabilized polyester coating over HDG lasts 15-20 years without peeling or significant color loss in outdoor conditions.
The 200x50mm mesh stops rabbits and similar. For rats or mice we can supply 50x50mm mesh – specify your target pest when inquiring.
Standard single-wire mesh flexes and sags. The 565 double horizontal wire design creates a rigid frame that stays flat for decades.
Single/double swing and sliding gates are available with the same 565 mesh and powder finish, including hinges, latch, and drop bolt.
ANJIA Group – Welded Wire Fence Factory Since 1996
72,000sqm ISO 9001 facility in Anping, China. Specialized in double wire, 3D curved, and security fencing. In-house galvanizing and powder coating. Exported to 80+ countries. Use the inquiry form to request a quote or free sample.
Plan Your Garden Fence – Get Factory Pricing Now
Reply in 12h · Free CAD Layout · 15-20 Days Delivery · ISO 9001
