steel ground screw making
4 year ago
U Type Ground Screw with U shape connection,we have different designs on U shape flange,such as five holes,the other is with two or three holes that you can insert metal bar to screw the U Ground Screw by hand. easy to install. popular used in farm fence, lighting pole, flag pole and other field , no digging ,no concrete or driver .
Material of U Ground Screw:S 235 (Q 235)carbon steel.
Finish treatment: hot dipped galvanized(Average thickness≥80 micron).
Packing : Steel pallet or cartons.
Production Chart of Ground Screw Anchor:Cutting pipe length according to design, forming the pipe according to the design, welding nut, flange, blade and assemble, acid pickling and hot dip galvanized treatment, QC and packing, shipments.

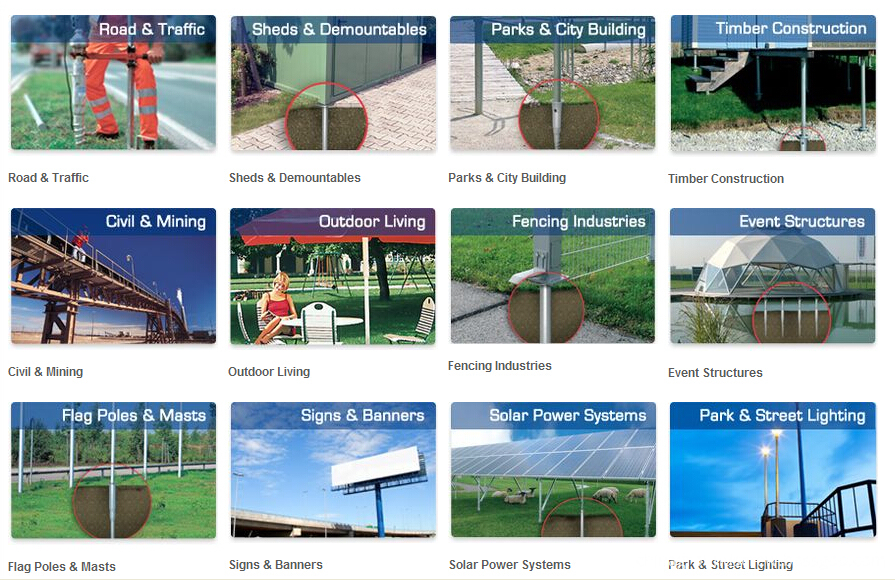

Range of Application:Fence,the simple house,advertising board,check mark field.
Model No.
Outer Diameter(mm)
Inner Diameter(mm)
Length(mm)
plate Thickness(mm)
U 71
71
67
565
1.7
U 71
71
67
735
1.7
U 91
91
67
550
1.7
U 91
91
67
555
1.7
U 91
91
67
735
1.7
U 91
91
67
870
2.0
U 101
101
67
735
1.7
U 101
101
67
870
2.0
