IP66 DC24V RGBW LED Flood Light TF1D-564mm

LED Flood Light, High Power Flood Light, Addressable Flood Light, Anti-glare LED Flood Lights, Narrow Beam Angle Flood Light, Architecture Flood Light

 Features

■ Compact design power outdoor RGBW LED floodlight for architectural, monument, bridges and landscape lighting applications.

■ High power Cree in whites and RGBW. Output power up to 108W.

■ High brightness contrast level for smooth and consistent color change effect.

■ Die cast aluminum alloy housing with efficient heat dissipation fins and anti-glare cover on deep-seated light emitters.

■ Stainless steel mounting frame and tilt adjustable up to 180°.

■ Customizable housing color and selection of other models in different power configurations.

■ DC24V input; DMX control; Ingress Protection IP66.

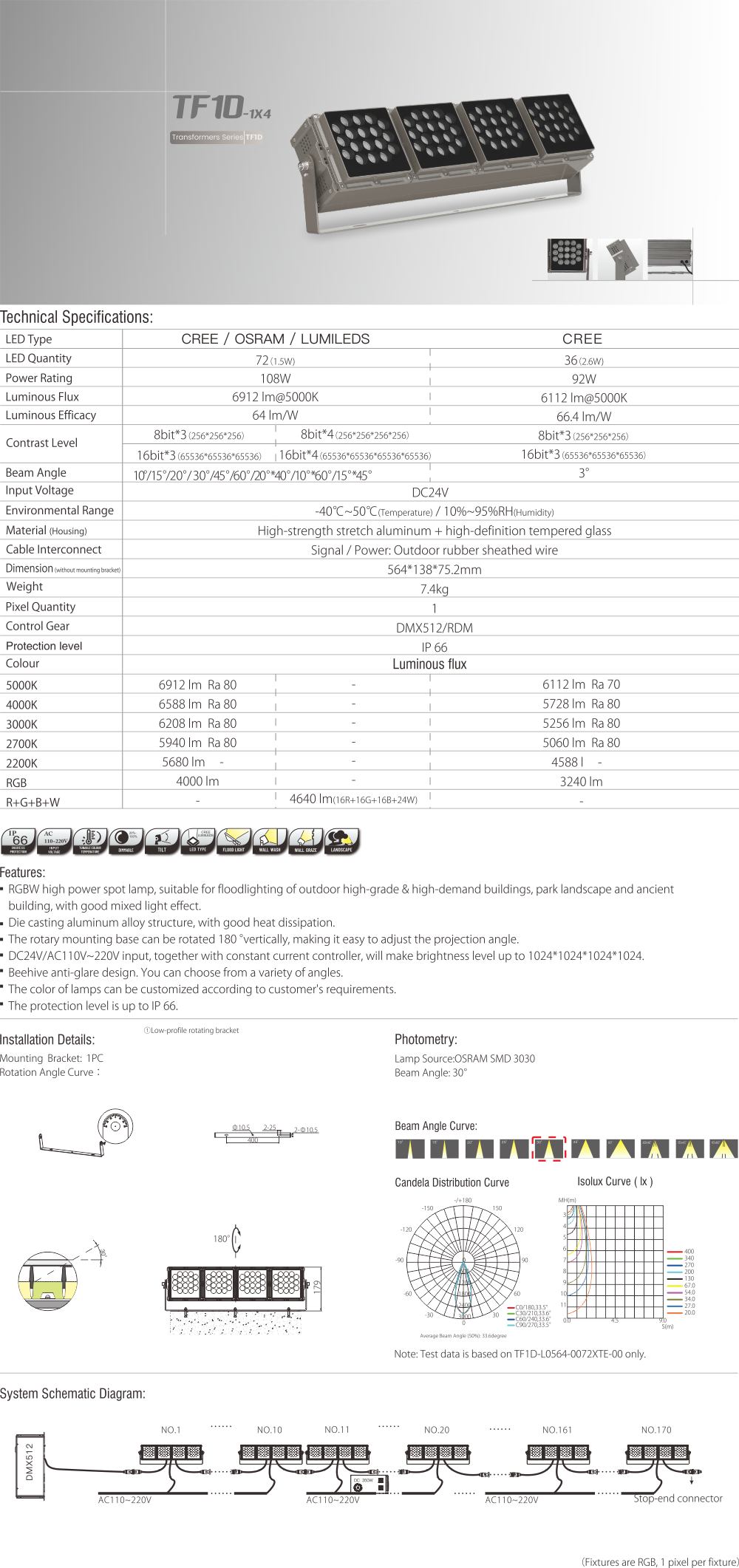

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 108W, Input Voltage:DC24V
■ CCT:RGBW(16R+16G+16B+24W), DMX512/RDM
■ LEDs:72(1.5W) LEDs
■ Beam Angle:10°/15°/20°/30°/45°/60°/20°*40°/10°*60°/15°*45°
■ Dimension(without bracket): 564*138*75.2mm(DC)
■ Protection: IP 66
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum Alloy +clear tempered glass diffuser
■ Cable length: 500mm with waterproof connectors
■ Cable (2 in/1 out)
■ Rotary bracket with 180D
■ Pixels:1
