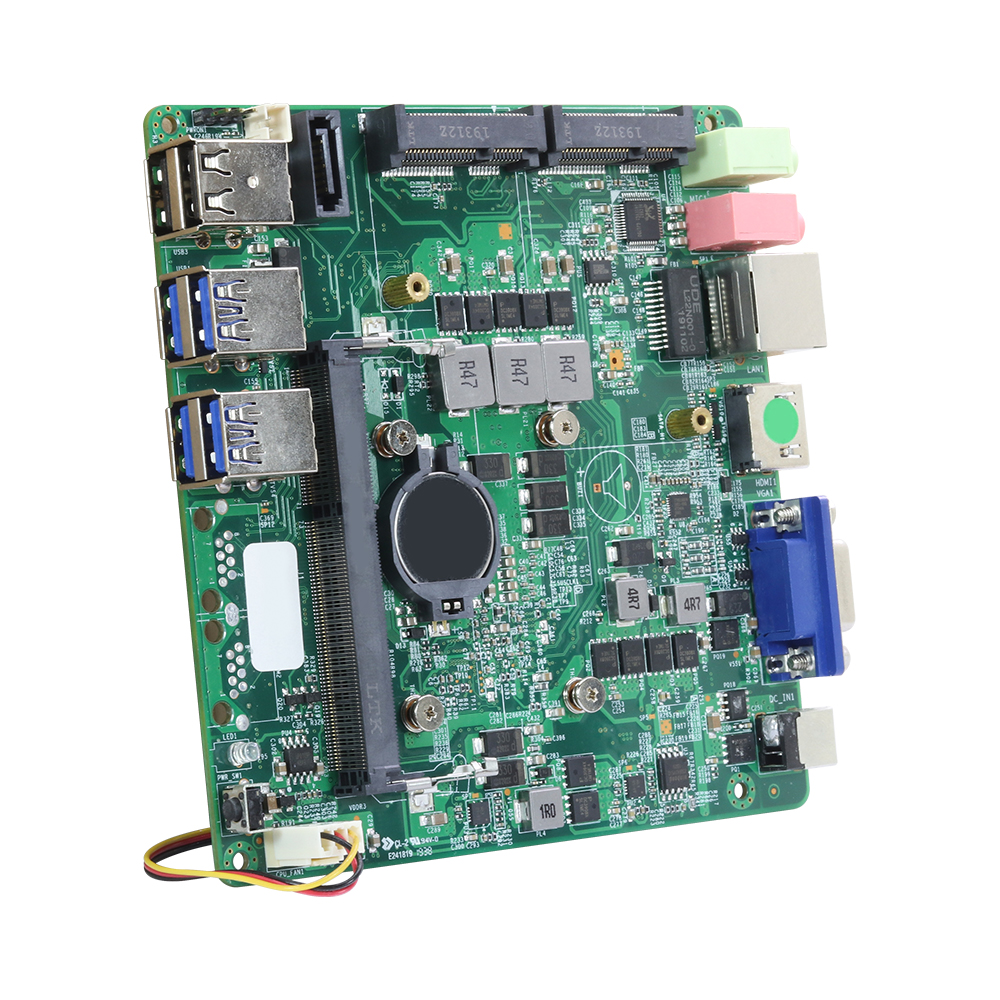

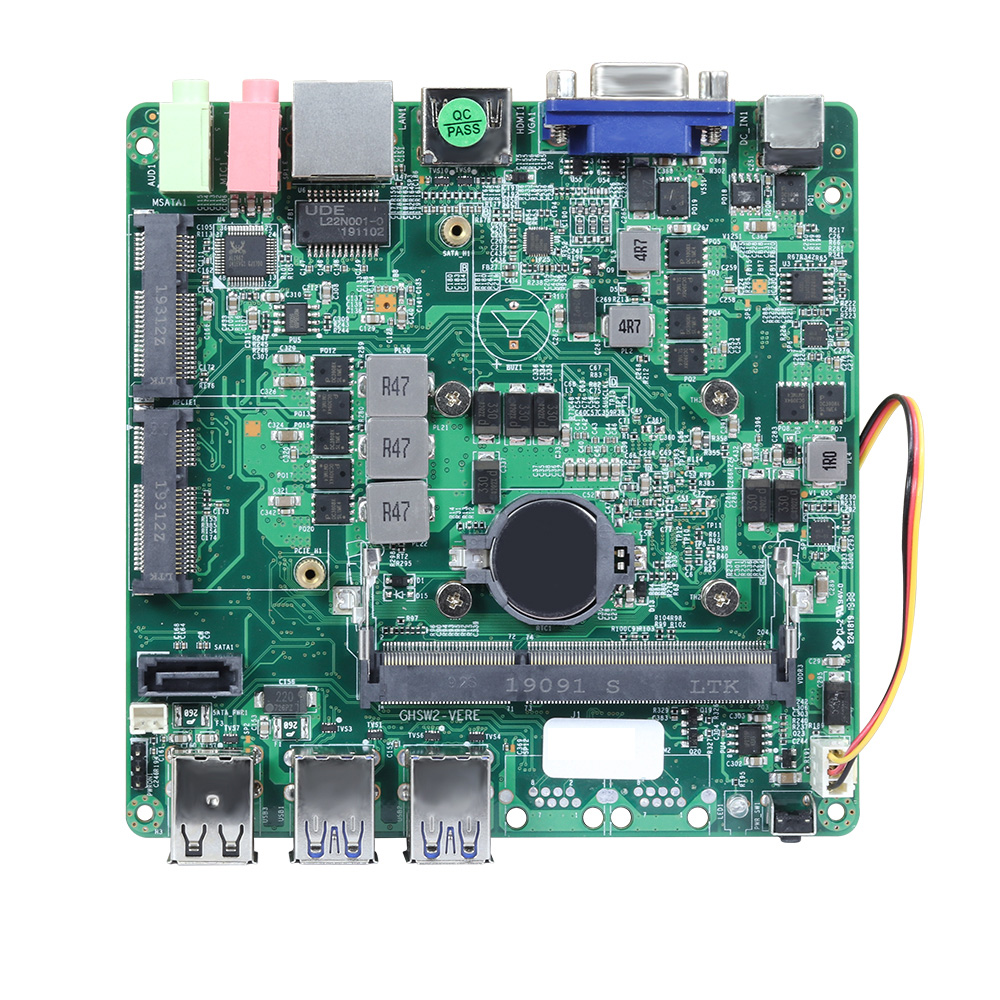

X30 motherboard

This 12x12 cm itx motherboard of mini computer with I5 4200U processor. This motherboard of mini Desktop with stable performance, fast speed, good compatibility, and small size, suitable for most of the mini computer case. This Personal computer motherboard, with 6USB interface, VGA,HDMI,LAN port, support one DDR3 memory interface,1 Msata hard disk interface,one 2.5" SATA interface.This motherboard of fanless mini Pc is easy connection between other device.

Product Details
CPU:  Intel Core Core i5 4200U
BIOS: American
Memory(RAM): DDR3L 204-pin SO-DIMM x 1, Support max up to 8GB
Hard Disk: 1x Full-height Msata socket +1*2.5" SSD/HDD socket
Ethernet port: 1 x RJ45 10/100/1000Mbps Realtek 8111H Gigabits Ethernet
WIFI: 1*Half-height PCIE socket
Power: Input: AC 100-240V 50-60Hz, Output: DC 12V  5A 60W
OS Supported: Win 10/8 /7, Linux, Ubuntu, Openelec, etc.
Cooling System: Fanless passive cooling with heat sink
Size:12cm*12cm
Chassis Material: Aluminum Alloy
Operating Temperature : -20~60℃
Storage Temperature: -30~70℃(15℃-35℃  Recommended)
Relative Humidity: 10%~90%@30℃ (without condensation)
