X30 Desktop Computer board

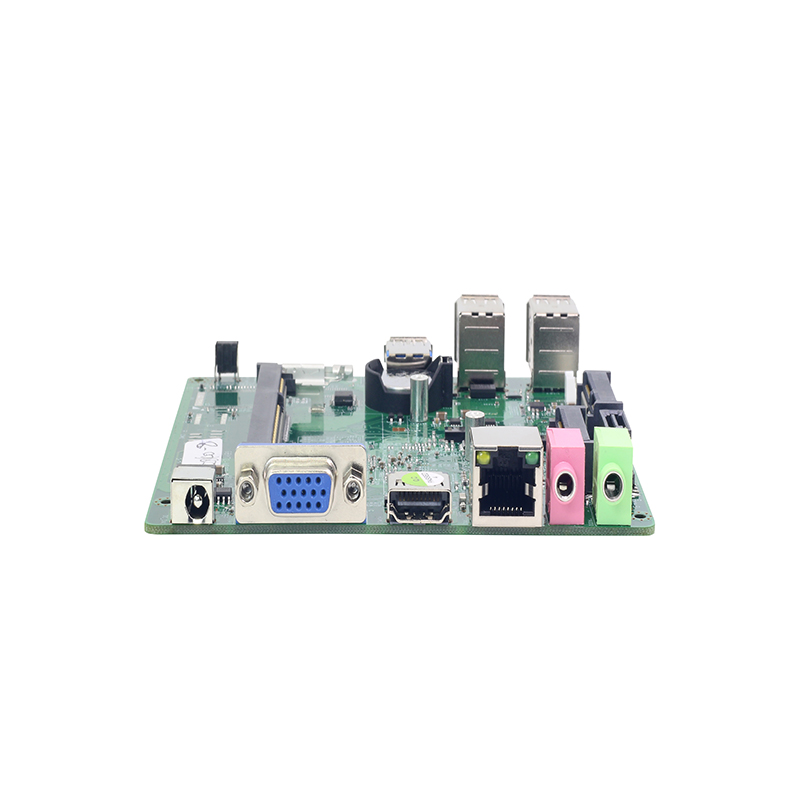

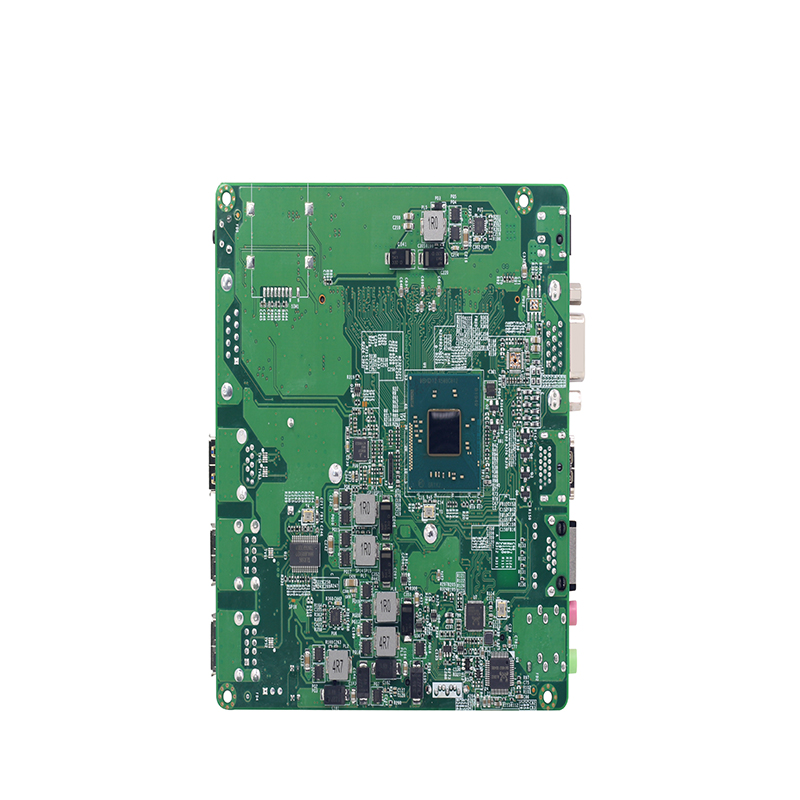

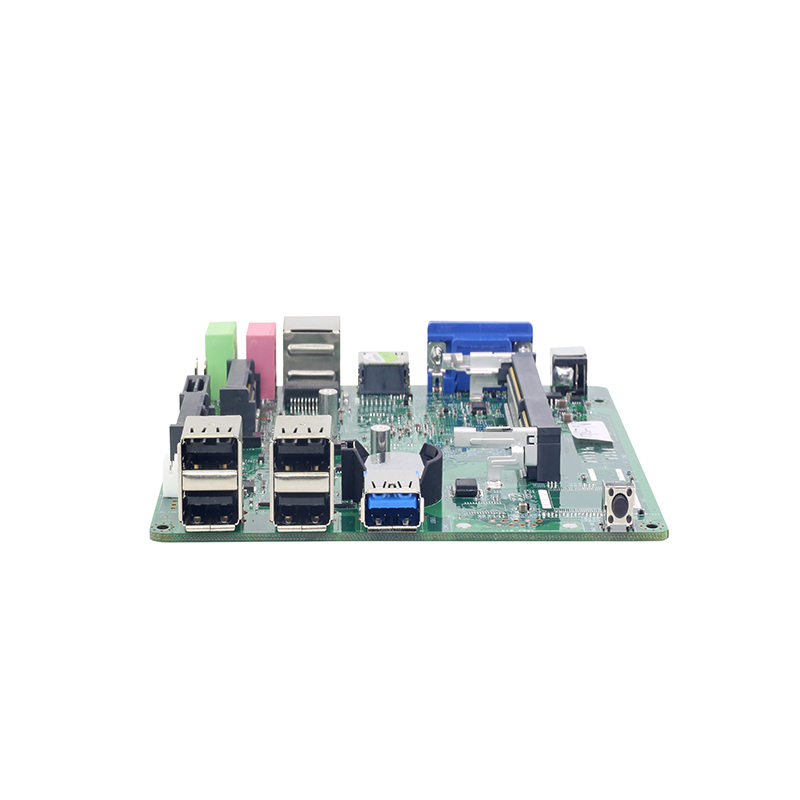

The motherboard of this Mini Computer with fanless cooling system, one is based on the Intel Bay-TRAIL low voltage platform, completely adopts the passive cooling mode of cooling fins, and is equipped with J1800 processor. The motherboard of Mini Desktop  provides users with one DDR3 memory slot, one mSATA port, one 2.5" SATA2 port, and one mPCI slot for WIFI. Fanless Mini Pc Motherboard with rich interfaces, 1* USB3.0 interface, there are some 4*USB2.0 interface, Ethernet interface, video output have HDMI interface and VGA interface.

Product Details
CPU:  Intel Celeron J1800,J1900,N2930,N2830,J2900
BIOS: American
Memory(RAM): DDR3L 204-pin SO-DIMM x 1, Support max up to 8GB
Hard Disk: 1x Full-height Msata socket +1*2.5" SSD/HDD socket
Ethernet port: 1 x RJ45 10/100/1000Mbps Realtek 8111H Gigabits Ethernet
WIFI: 1*Half-height PCIE socket
Power: Input: AC 100-240V 50-60Hz, Output: DC 12V  5A 60W
OS Supported: Win 10/8 /7, Linux, Ubuntu, Openelec, etc.
Cooling System: Fanless passive cooling with heat sink
Size:12cm*12cm
Chassis Material: Aluminum Alloy
Operating Temperature : -20~60℃
Storage Temperature: -30~70℃(15℃-35℃  Recommended)
Relative Humidity: 10%~90%@30℃ (without condensation)
