Vertical 10 multihead weigher dark red kidney beans flax seed packing machine multi-function packaging machines1
4 month ago
Product details
The vertical red date packaging machine is an automated packaging equipment designed for granular or block products such as red dates and dried fruits. It adopts an integrated process of vertical bag making-filling-sealing, which has the advantages of high efficiency, precision, and space saving. The following is an analysis of its specific advantages:
1. Efficient production and outstanding production capacity
Continuous operation: Automatically complete bag making, metering, filling, sealing, coding and other processes, with a packaging speed of 30-80 bags per minute (depending on the specifications), suitable for mass production of red dates.
Reduced manual intervention: Fully automated operation, only 1-2 people are required to monitor feeding and finished product output, saving more than 70% of labor costs.
24-hour operation capability: Equipped with a stable transmission system and wear-resistant components, it supports long-term continuous production.
2. Accurate measurement and reduced loss
High-precision weighing system: Using electronic scales or volumetric measurement, the error can be controlled within ±1%, ensuring that the weight of each bag of red dates is consistent (especially suitable for small-size retail packaging).
Adaptive adjustment: In view of the different sizes of red dates, some models are equipped with a vibration plate or a flexible filling device to reduce material jamming or damage.
Automatic error correction function: Overweight or underweight packaging is automatically removed to avoid waste of raw materials.
3. Flexible adaptation to diverse needs

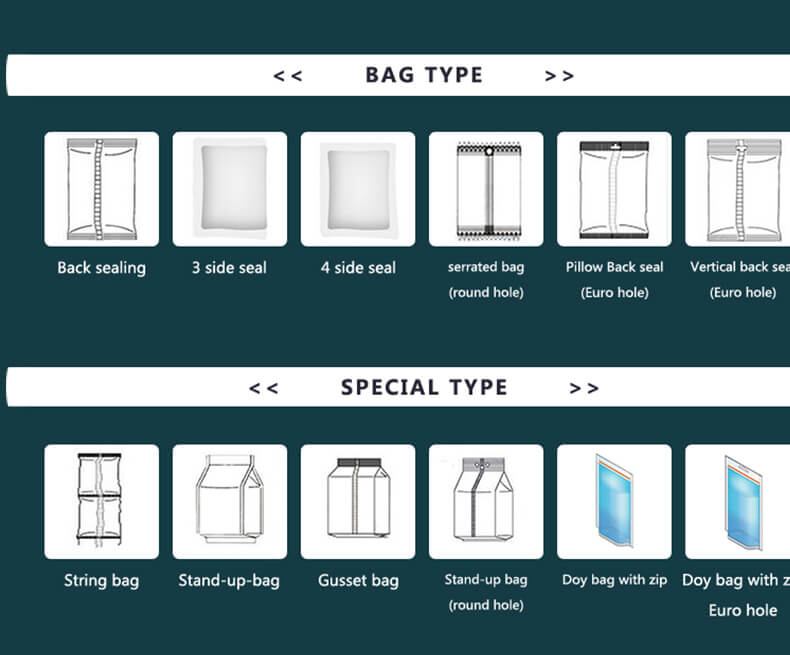

Multi-specification compatibility: By changing the mold or adjusting the parameters, quickly switch different packaging specifications (such as 100g family pack, 500g gift box packaging) and bag types (self-supporting bag, three-side seal, back seal, etc.).
Strong material adaptability: Supports materials such as aluminum foil, composite film, and breathable film to meet the needs of red dates for moisture-proof, anti-oxidation, and extended shelf life.
Functional scalability: It can integrate nitrogen filling preservation, vacuum sealing, QR code spraying and other functions to enhance product added value.
Applications:
Suitable for Meatball, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, frozen food, chicken leg,hardware and medicine such particle, platy, strip and irregular shape.

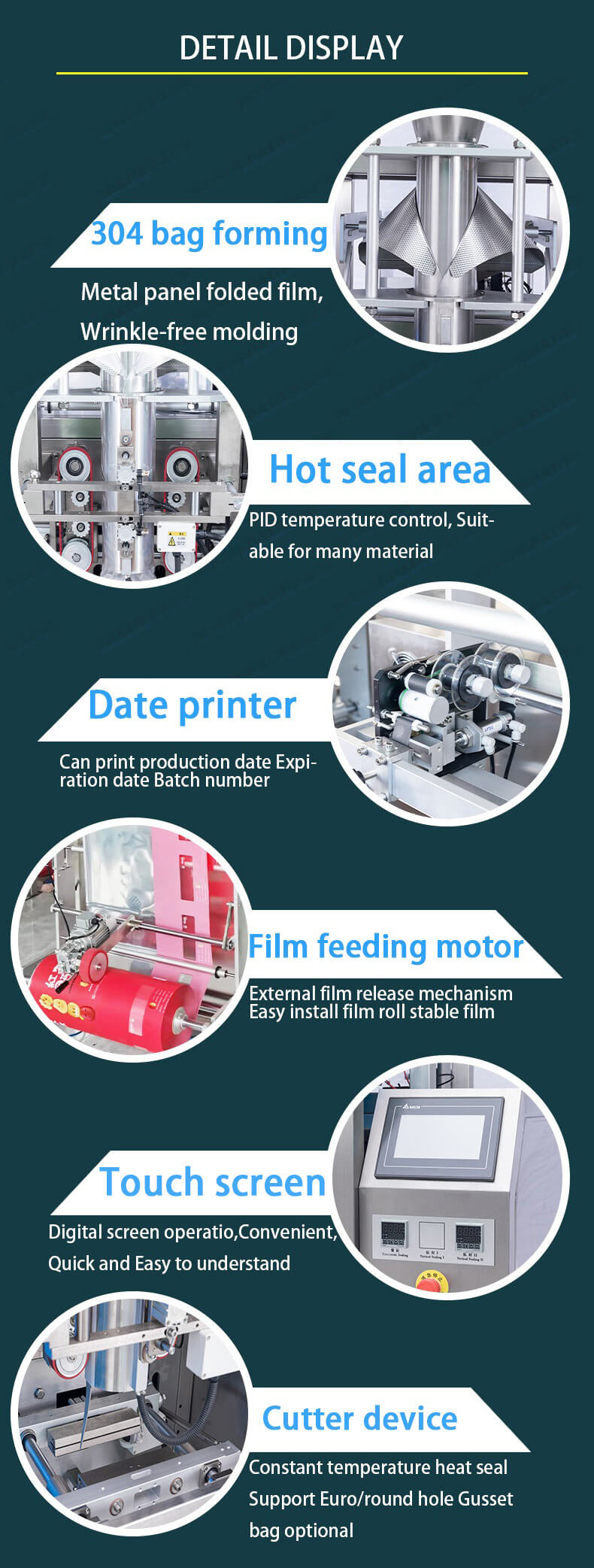

The details of the main parts:
Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Full implement the humanizes automatic operation
English and Chinese screen display
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment
Automatic calculation combination set weight
Precision electronic sensor, microcomputer,
automatic calculation combination set weight.

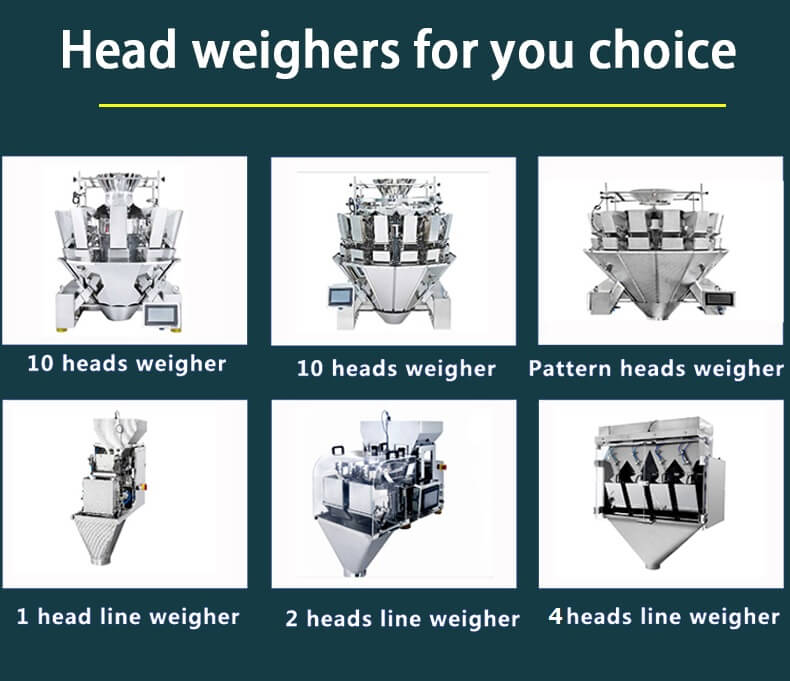

Can equip 2 heads, 4heads, 10 heads,14 heads,etc.More heads weigher , will have higher accuracy and faster speed.
automatic calculation combination set weight.
Can equip 2 heads, 4heads, 10 heads,14 heads,etc.More heads weigher , will have higher accuracy and faster speed.
Viabrator hopper
Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.
Use motor delivery the film
The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running
pulling film process, which is suitable for more
materials film rollers and can smoother film running
Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.
When the weighing hopper under the storage hopper is empty after discharging, the storage hopper is opened, the material is discharged to the weighing bucket, and the weighing bucket starts to weigh.
Support ribbon roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags
Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.
We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.The bag shape is formed by folding the rolled film through the metal panels on both sides.
The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.
Double pulling Film Structure
High quality grinding wheel,
Pull evenly,more beautiful packaging
Pull evenly,more beautiful packaging
Cutter sealing device:
Pull rod type sealing structure,stable sealing and make packing speed more fast.
Constant temperature heat sealing cutter is
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.
