English and Chinese screen display
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment
CE Automatic 250g 500g 1kg Small Tomato Red Chilli Garlic Baby Carrot Packing Machine Chilli Pepper Fruit Salad Packing Machine1
3 month ago
Product details
Suitable for Meatball, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, frozen food, chicken leg,hardware and medicine such particle, platy, strip and irregular shape.
Standard Features:
1. High-precision weighing and moisture-proof packaging
Dynamic weighing technology
Linear combination scales (more than 14 heads) handle irregular particles (such as grains) with an accuracy of ±0.5g; freeze-dried mushrooms use weighing-volume composite measurement with an error of <±1%.
Moisture-proof treatment
The packaging film has a built-in aluminum foil layer (water vapor permeability <0.1g/m²·24h), and nitrogen is filled to replace oxygen before sealing (residual oxygen content of freeze-dried mushrooms <3%).
Case A frozen mixed vegetable factory uses this model, and the mixed packaging accuracy of frozen green beans + corn kernels + carrot cubes reaches ±1.2%, reducing annual losses by 8 tons.
2. High-speed production and low-temperature tolerance
Low-temperature components
Key components (such as cutters and bearings) are made of low-temperature steel, and the lubricant can withstand -40℃, with a failure rate reduced by 70% compared with conventional models.
Hot and cold isolation
The sealing area is physically isolated from the freezing area, and the heat sealing temperature PID is precisely controlled (adjustable from 150-200℃) to avoid film tearing caused by alternating hot and cold
Automatic calculation combination set weight
Precision electronic sensor, microcomputer,
automatic calculation combination set weight.
Can equip 2 heads, 4heads, 10 heads,14 heads,etc.More heads weigher , will have higher accuracy and faster speed.
automatic calculation combination set weight.
Can equip 2 heads, 4heads, 10 heads,14 heads,etc.More heads weigher , will have higher accuracy and faster speed.
Use motor delivery the film
The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running
pulling film process, which is suitable for more
materials film rollers and can smoother film running
Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.
Support ribbon roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags
Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.
We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.The bag shape is formed by folding the rolled film through the metal panels on both sides.
The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.

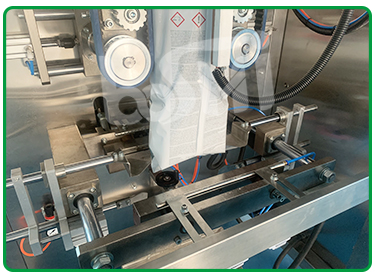

Double pulling Film Structure
High quality grinding wheel,
Pull evenly,more beautiful packaging
Pull evenly,more beautiful packaging
Cutter sealing device:
Pull rod type sealing structure,stable sealing and make packing speed more fast.
Constant temperature heat sealing cutter is
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.
The details of the main parts:
Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Full implement the humanizes automatic operation
