Automatic Packing Machine for Salt Rice and Beans 500g 1 kg 5 10kg Pouch Cooked Rice Sugar Bag Weighing Rice Packing Machine1

3 month ago

3 0 

FOSHAN BOSHI PACKING MACHINERY CO.,LTD

6 month

Product details

The details of the main parts:

Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting
parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Full implement the humanizes automatic operation

Advantages:

1. High-precision weighing, reducing waste

Technical features: Using multi-head combination scales (linear scales), through multiple weighing buckets working together, dynamically combining the optimal weight combination, the error can be controlled between ±0.1%~1%.

Application scenarios: Suitable for high-value materials (such as nuts, medicinal materials) or weight-sensitive industries (such as food, medicine), reducing cost losses caused by overweight.

Case: A nut production company saved about 5% of raw material costs annually by switching to a linear scale vertical packaging machine.

2. Significantly improved production efficiency

Speed advantage: The parallel weighing mode of the linear scale (such as a combination scale with more than 10 heads) can achieve high-speed packaging of 50-120 packages per minute, which is 3-5 times more efficient than the traditional single-head scale.

Continuous operation capability: Combined with the automatic feeding system, it supports 24-hour continuous production, especially suitable for large-volume order needs during the promotion period of e-commerce.

Data comparison: The measured data of a puffed food factory showed that the daily production capacity increased from 8 tons to 22 tons after replacing the linear scale.

Packing machine touch screen

English and Chinese screen display
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment

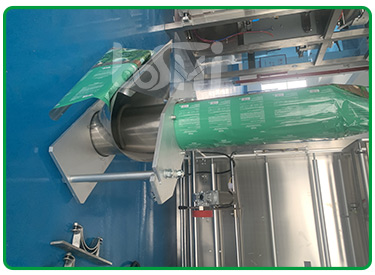

Install film structure

Use motor delivery the film

The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running

Z Type feeding elevator

Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.

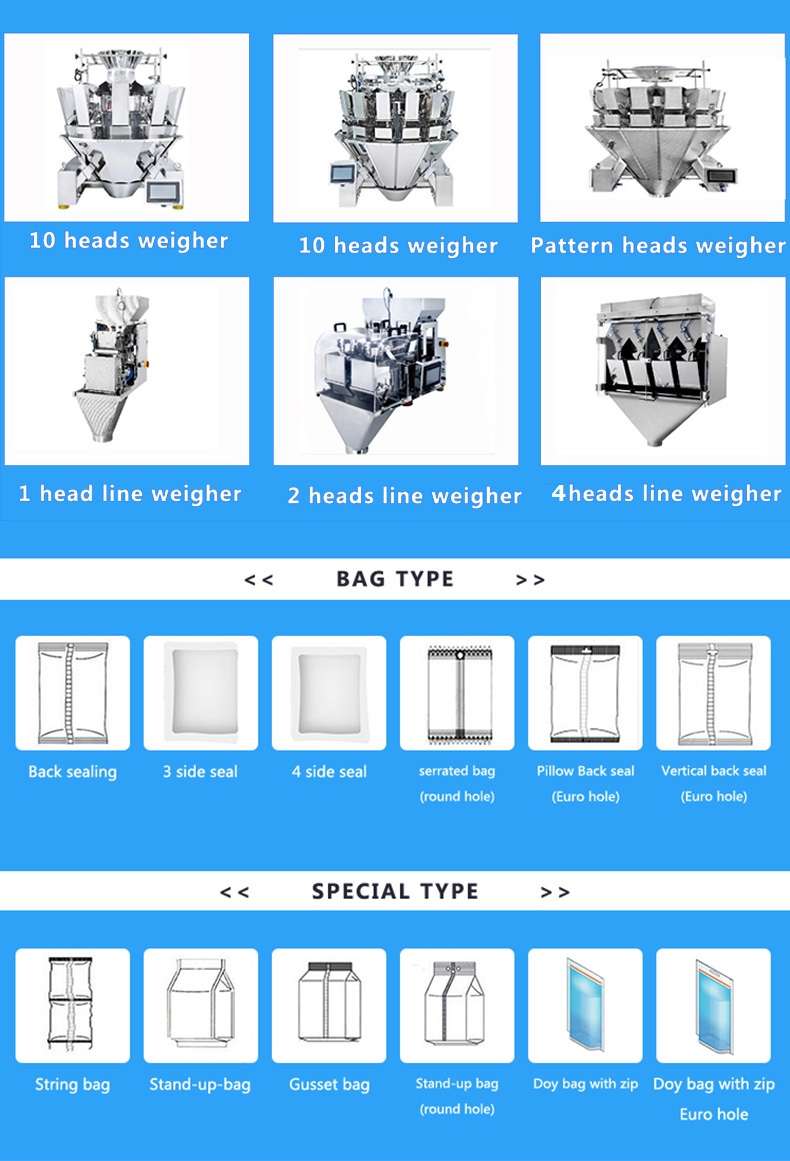

Multi-head weigher

When the weighing hopper under the storage hopper is empty after discharging, the storage hopper is opened, the material is discharged to the weighing bucket, and the weighing bucket starts to weigh.

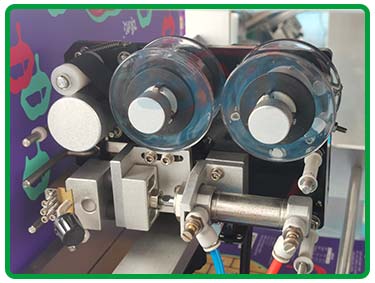

Date printer

Support ribbon roll date printer

*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags

Bag forming tubes

Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.

We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.

Mid-sealing structure

The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.

Double pulling Film Structure

High quality grinding wheel,
Pull evenly,more beautiful packaging

Cutter sealing device:

Pull rod type sealing structure,stable sealing and make packing speed more fast.

Constant temperature heat sealing cutter is
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.
