CH Trough mixer
4 year ago
Main Application
This mixing machine is used for mixing powder or wet materials to make main and auxiliary materials of different proportions mix evenly.The mixer machine is made of stainless steel where it contacts with materials. The gap between pulp leaves and barrel body is small and there is no dead Angle in mixing. Sealing device is set at both ends of stirring shaft to prevent material from exuding.Widely used in pharmaceutical, chemical, food and other industries.
Working Method
This blending machine uses two motors, a stirring motor, which drives the mixing paddle to rotate the mixture material through the shaft. A discharge motor can be used to tilt the stirring tank to facilitate unloading.There are one-way thrust ball bearings and radial thrust ball bearings at both ends of the stirring shaft to prevent radial turbulence caused by negative stress.

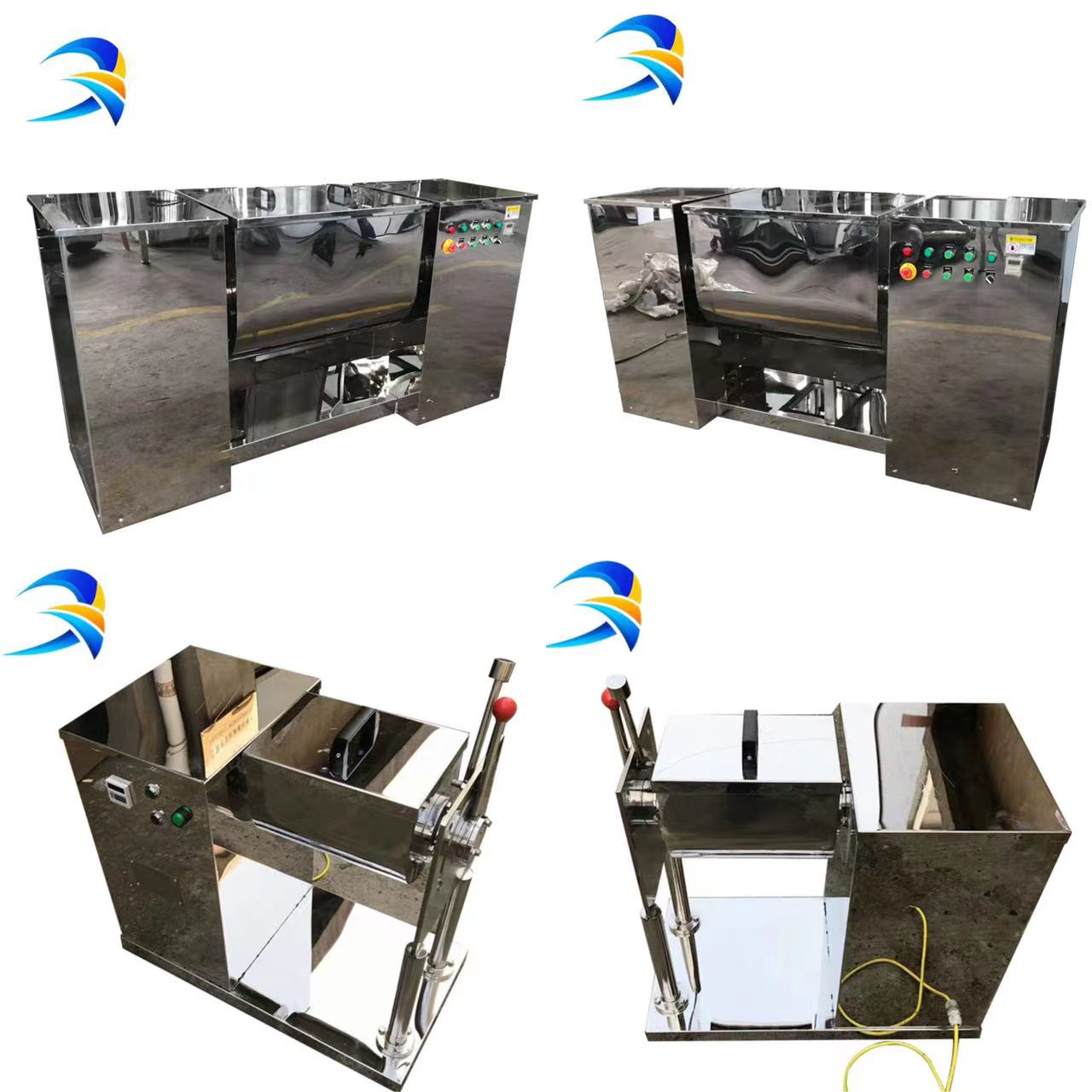

PRODUCT DISPLAY
|
Model
|
CH-5
|
CH-10
|
CH-20
|
|
Volume(L)
|
5
|
10
|
20
|
|
Mixing speed(r/min)
|
24
|
24
|
24
|
|
Inclined angle(° )
|
105
|
105
|
105
|
|
Mixing motor(KW)
|
0.2
|
0.25
|
0.37
|
|
Dumping motor
|
Manval
|
Manval
|
Manval
|
|
Over size (mm)
|
500*200*400
|
570*230*420
|
680*380*550
|
|
Weight(kg)
|
40
|
45
|
65
|
|
MODEL
|
CH-50
|
CH-100
|
CH-150
|
CH-200
|
CH-300
|
|
Paddle shape
|
S double paddle
|
S single paddle
|
S single paddle
|
S single paddle
|
S single paddle
|
|
Working volume (L)
|
100
|
100
|
150
|
200
|
300
|
|
Mixing speed (r/min)
|
24
|
24
|
24
|
24
|
24
|
|
Stir angle ( ° )
|
< 105
|
< 105
|
< 105
|
< 105
|
< 105
|
|
Mixing power (KW)
|
2.2
|
2.2
|
3
|
4
|
5.5
|
|
Dumping power (KW)
|
0.55
|
0.55
|
0.55
|
0.75
|
1.1
|
|
Weight (kg)
|
350
|
350
|
410
|
450
|
520
|
|
Overall size L× W× H (mm)
|
1400× 580 × 1000
|
1400× 580 × 1000
|
1600× 600 × 1150
|
1700× 650 × 1200
|
1800× 700 × 1250
|
