Product details

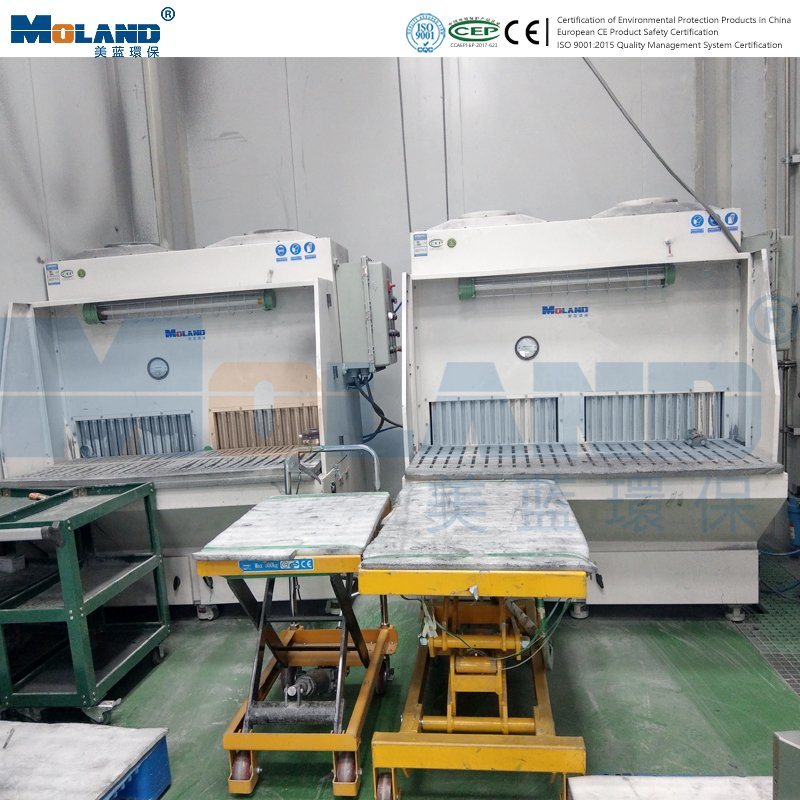

The Portable Downdraft Table is a height-adjustable source-capture solution for the extraction of fume, dust, and smoke at the work surface level. This safety engineering control helps to protect the operator’s breathing zone and surrounding environment from hazardous airborne contaminants. These units are designed for easy portability and flexibility within the work environment. Lockable casters make the unit easy to roll across a room and the no tool filter change design allows quick and easy filter replacement.

Dust purifier
· Suitable for grinding, polishing and other working conditions of metal and non-metal workpieces

Performance description
· Integral structure, beautiful appearance, small floor area, easy to move and fix with Fuma wheel installed at the bottom
· Double motor, double control, one or two blowers can be opened according to actual use
· Intelligent Control of Siemens PLC
· Power supply condition monitoring: alarm of fault phase overvoltage and undervoltage to prevent motor and electrical components from damage
· Pressure condition monitoring: alarm of low pressure of gas source to prevent incomplete ash removal; differential gauge shows the use status of filter element intuitively, and automatic pulse back blowing with high pressure difference

Standard configuration
· Filtration efficiency (> 99.9%) of main filter element (imported flame retardant filter element)
· Fault phase protection, overload protection and air pressure monitoring device
· Siemens PLC Electronic Control System
· Explosion-proof lighting
· Dust-proof 5-hole socket on left and right sides
· Toolbox on left and right sides
· Pressure differential gauge
· 50L Dust Collection Drawer *2
· 10 m power cord Spare parts
· Explosion-proof configuration
· Soft scratch pad
· IO port (remote control)
· Customization of stainless steel for the whole machine
· Design of Round/Square/ Long Hole on Workbench Surface

Power	1.5kw*2
Voltage	380V / 50Hz
Air Volume	2500-5000m³/h
Accuracy	0.3μm
Filter Area	32m²
Cleaning	Automatic
Filter material	Imported PTFE filter material
Noise	75dBA
Size	1550×1250×1950mm
Weight	600kg
