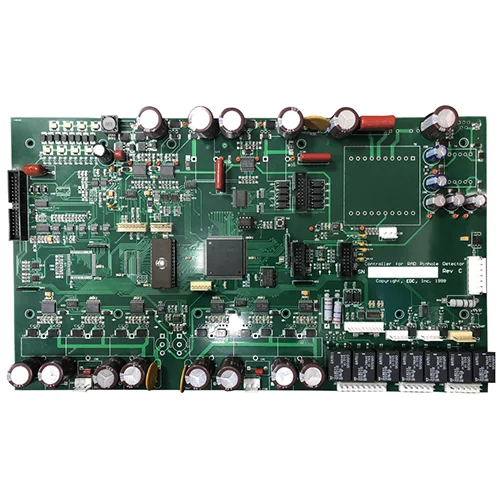

Industrial control power supply PCB sample assembly

Industrial control power supply PCB sample assembly

Name: Industrial Control Power Supply Prototype PCB Assembly
SMT Lines: 7 high-speed SMT placement supporting production lines
Daily Capacity of SMT: Over 30 million points
Inspection Equipment: X-RAY detector, First Article Tester, AOI (Automatic Optical Inspection) machine, ICT tester, BGA rework station
Placement Speed: Chip component placement speed (optimal condition) 0.036 S/piece
Minimum Placeable Package: 0201, with precision up to ±0.04mm
Minimum Device Precision: Capable of placing PLC, QFP, BGA, CSP and other components, pin pitch can reach ±0.04mm
IC Placement Precision: High level in placing ultra-thin PCB boards, flexible PCB boards, gold fingers, etc. Capable of placing/inserting/mixed placing TFT display driver boards, mobile phone motherboards, battery protection circuits and other high difficulty products.

Product Details

There are more than 50 SMT production lines, equipped with new imported Fuji NXTIII, AIMEX, XPF automatic solder paste printing machine, 12-temperature lead-free nitrogen reflow oven, wave soldering and other high-end equipment. It is also equipped with on-line 3D AOI, 3D SPI, 3D X-RAY, intelligent first piece tester, automatic board separator, crimping machine, BGA rework station, ICT, three-proof paint and other equipment, focusing on R&D sampling, batch SMT placement, assembly and other services.

SMT Soldering equipment
