Product Introduction

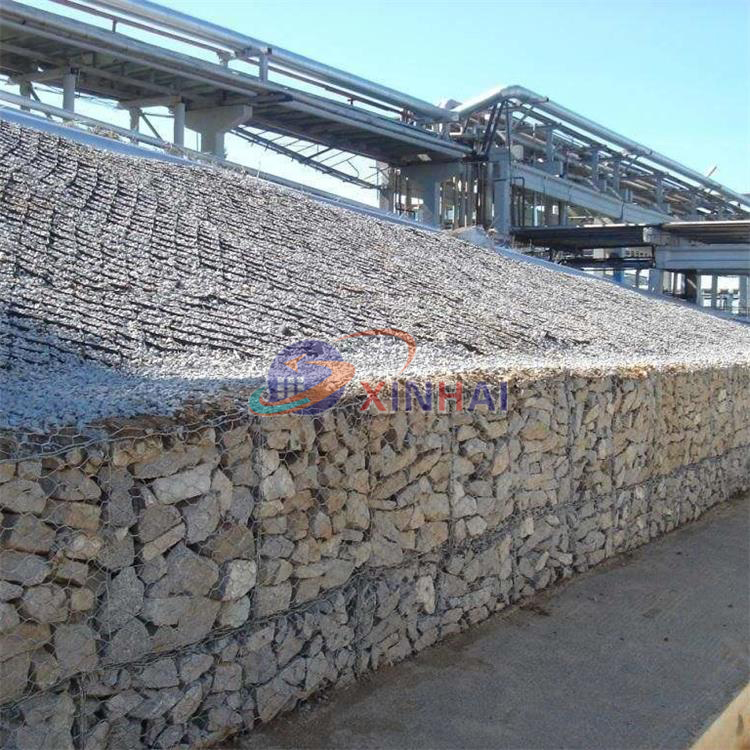

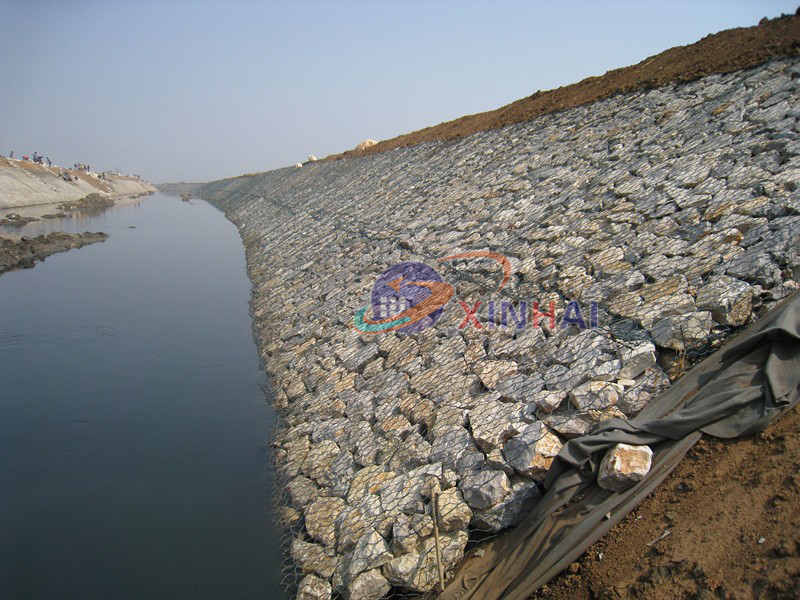

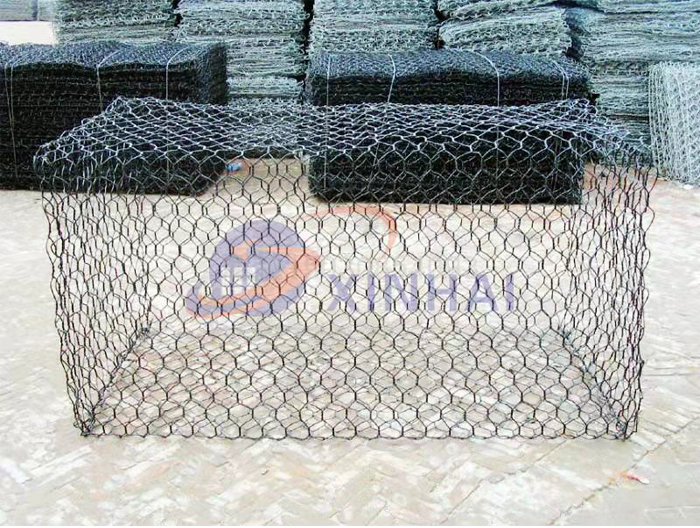

Gabion box, also known as gabion basket, is made of galvanized wire with good corrosion resistance and ductility, high strength or PVC coated wire by mechanical weaving. The material of the wire is zinc -5% aluminum alloy, low carbon steel, stainless steel or iron. Gabion baskets and gabion mats are stone containers, which are evenly separated into internal units, interconnected with other containers, and filled with stones on site to form a flexible and permeable whole structure to control and guide water or flood, protect dams or seawalls, or be used as retaining walls, channel linings and other applications.
|
Material |
Low carbon iron wire Q195 |
|
Wire Gauge |
2.0mm-5.0mm |
|
Hole Size |
60*80, 80*100, 100*120, 120*150 |
|
Mesh Size |
2*1*1m, 3*1*1m, 2*1*0.5m, 3*1*0.3m, or as customer requirement |
|
Surface |
Elector galvanized, hot dipped galvanized |
Specification
|

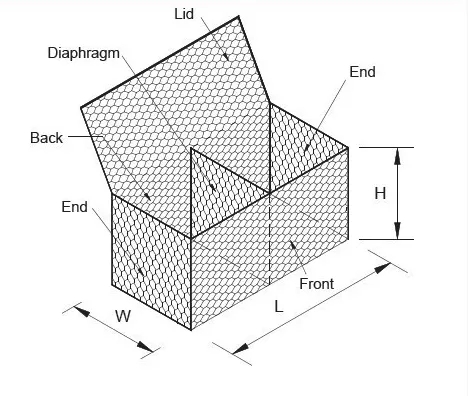

Gabion box (mesh size): 80*100mm 100*120mm |
Mesh Wire diameter |
2.7mm |
zinc coating:60g,245g, ≥270g/㎡ |
|
Edge wire diameter |
3.4mm |
zinc coating:60g,245g, ≥270g/㎡ |
|
|
Tie wire diameter |
2.2mm |
zinc coating:60g, ≥220g/㎡ |
|
|
Gabion mattress(mesh size): 60*80mm
|
Mesh Wire diameter |
2.2mm |
zinc coating:60g, ≥220g/㎡ |
|
Edge wire diameter |
2.2mm |
zinc coating:60g,245g, ≥270g/㎡ |
|
|
Tie wire diameter |
2.2mm |
zinc coating:60g, ≥220g/㎡ |
|
|
Special sizes Gabion are available |
Mesh Wire diameter |
2.0-4.0mm |
superior quality, competitive price and considerate service |
|
Edge wire diameter |
2.7-4.0mm |
||
|
Tie wire diameter |
2.0-2.2mm |
Application
