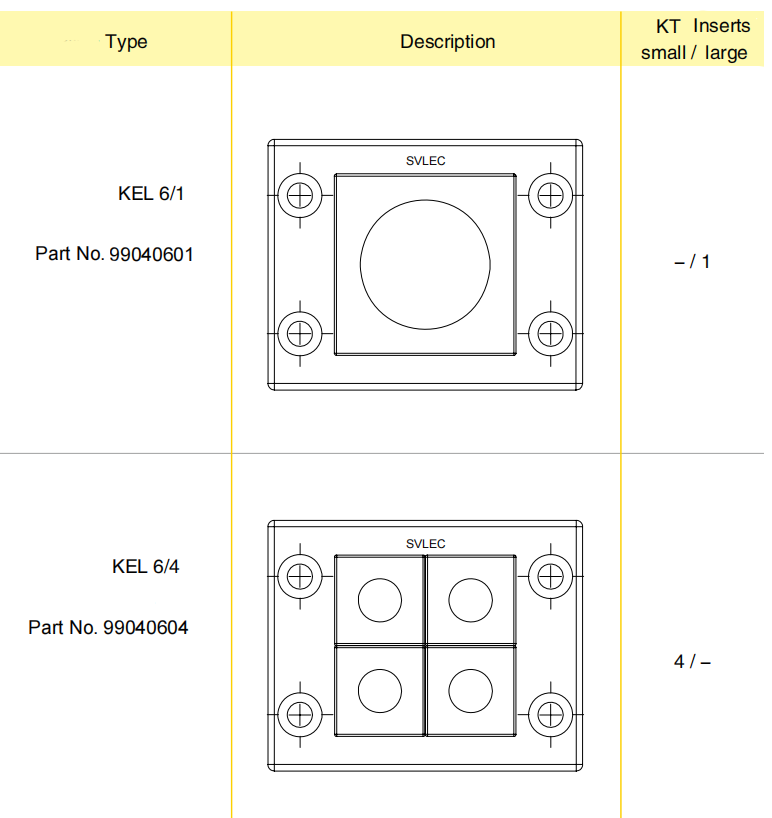

PA KEL 6 series detachable cable entry frame
The KEL series exactly matches the cut-out dimensions of standard industrial connectors. The split insert matching the cable diameter is placed around the cable and inserted into the Cable Entry Frame. This Flexible Frame is perfect for pre-terminated cables.
| Name: | Detachable Cable Entry Frame |
| Material: | Polyamide(PA) |
| Flame class: | UL94-V0 Self-extinguishing |
| Temperature: | -40℃ to +140℃（static） |
| Properties: | Halogen-free, silicone-free |

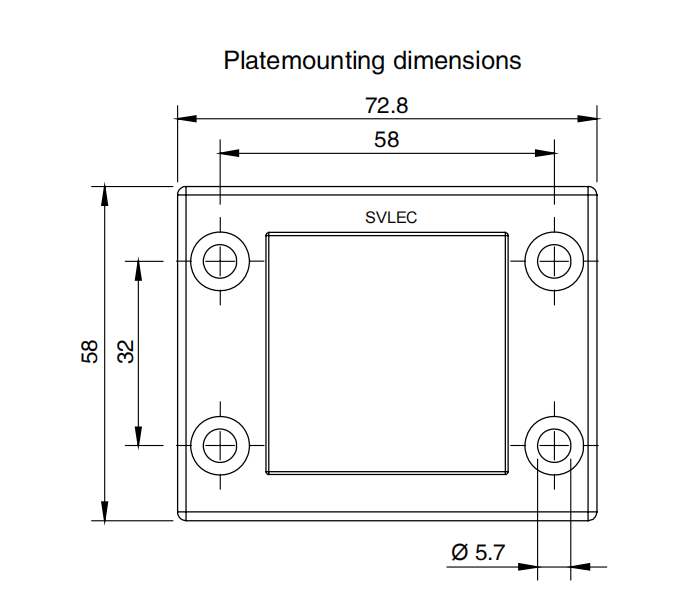

| Cut-out dimensions: | 46*46mm |
| KEL Height: | 17mm |
| Protection degree: | IP54 |
