High Wear Resistance Tungsten Carbide Plate for Stamping Mold
Introduction Of Tungsten Carbide Plate/ Carbide Sheet/ Carbide Strip
1. Material: 100% virgin tungsten carbide material
2. Size: 120x120x1.0-70.0, 250x250x15-60,etc. Customized carbide sheets as per your drawings or samples are also available.
3. Surface treatment: blank carbide sheet or ground carbide plate available
5. Various grades for your choice: KIC-30, KCU-10, KDG-10, etc.
6. Application: carbide plate/ carbide sheets/carbide strip are used for stamping mold, for wear parts, etc.
Advantages Of Tungsten Carbide Plate/ Carbide Sheet/ Carbide Board/ Carbide Strip/ Carbide Block
1. Reliable manufacturer with 20 years' experience.
2. Use 100% virgin tungsten carbide material
3. Factory direct price, fast delivery, excellent service
4. Full types are available
5. Strict quality control system
6. We have professional advanced production line and testing equipments to ensure high quality products.
7. OEM & ODM service is welcome
8. High precision guarantees product performance

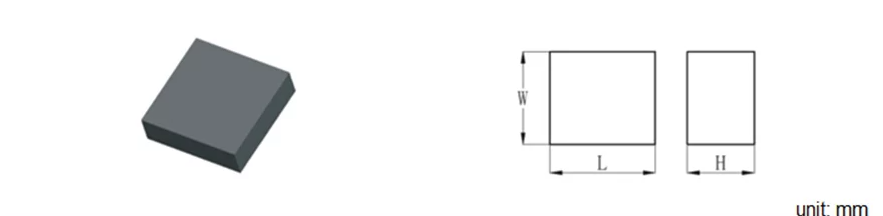

Specification Of Tungsten Carbide Plate/ Carbide Sheet/ Carbide Board/ Carbide Strip/ Carbide Block
Zhuzhou Kerui Cemented Carbide produce various types of cemented carbide plates/sheet/ board/ block, such as 120x120x1.0-70.0, 250x250x15-60, 300x300x20.0-60.0, etc.
Just list some sizes FYI. Customized carbide sheets as per your drawings or samples are also available.
|
|
|||||||
| Type | Length | Tolerance | Width(W) | Tolerance | Thickness(T) | Tolerance | |
| EDM-L*W*H | 100 | +2.0/0 | 100 | +2.0/0 |
1.0-70.0 |
1.0-5.0 | +0.5/+0.2 |
|
EDM-L*W*H |
105 | +2.0/0 | 105 |
+2.0-0 |
1.0-70.0 |
5.0-15.0 | +0.6/+0.2 |
|
EDM-L*W*H |
110 |
+2.0-0 |
110 |
+2.0-0 |
1.0-70.0 |
15.0-25.0 |
+0.8/+0.2 |
|
EDM-L*W*H |
120 |
+2.0-0 |
120 |
+2.0-0 |
1.0-70.0 |
25.0-40.0 |
+1.0/+0.2 |
|
EDM-L*W*H |
135 |
+2.0-0 |
135 |
+2.0-0 |
1.0-70.0 |
40.0-50.0 |
+1.2/+0.2 |
|
EDM-L*W*H |
150 |
+2.5-0 |
150 |
+2.5-0 |
1.0-70.0 |
50.0-60.0 |
+1.2/+0.2 |
|
EDM-L*W*H |
200 |
+2.5-0 |
200 |
+2.5-0 |
3.0-70.0 |
60.0-60.0 |
+1.5/+0.2 |
|
EDM-L*W*H |
250 |
+5.0-0 |
250 |
+5.0-0 |
15.0-60.0 |
|
|
|
EDM-L*W*H |
300 |
+7.0-0 |
300 |
+7.0-0 |
20.0-60.0 |
|
|
Application Of Tungsten Carbide Plate/ Carbide Sheet/ Carbide Board/ Carbide Strip/ Carbide Block
We offer different sizes of carbide sheet & plates depending on your needs. Our tungsten carbide sheet have its own properties: fine grain structure, high wear resistance, high polishing property, high hardness, high corrosion resistance, collapse resistance and crack resistance, etc. which makes our carbide sheet's wide applications.
1. Tungsten carbide sheet in grade KDG-10 is the best material for making powder metallurgy mold and motor mold, etc.
2. Tungsten carbide plates/ cemented carbide sheets in grade KCU-10 is the best material for stamping soft metal such as Cu sheet, pure Fe sheet and AI sheet, etc.
3. Tungsten steel strip in grade KIC-30 is the best material for stamping 0.01-1.0 mm stainless steel, LED lead frame, etc.
Package Of Tungsten Carbide Plate/ Carbide Sheet/ Carbide Board/ Carbide Strip/ Carbide Block
Standard package of tungsten carbide plate: first put the tungsten carbide plate into a plast box, then put them into the carton. We also can customize the package as per your request.

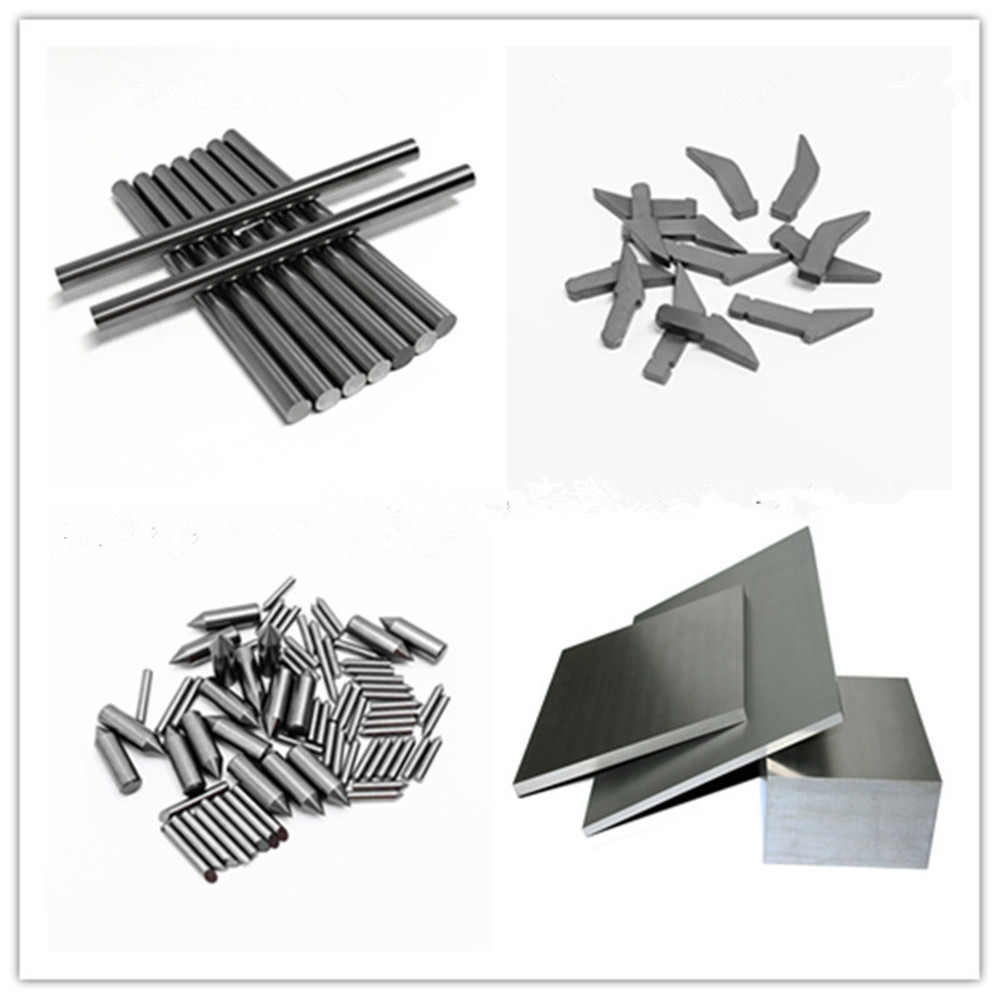

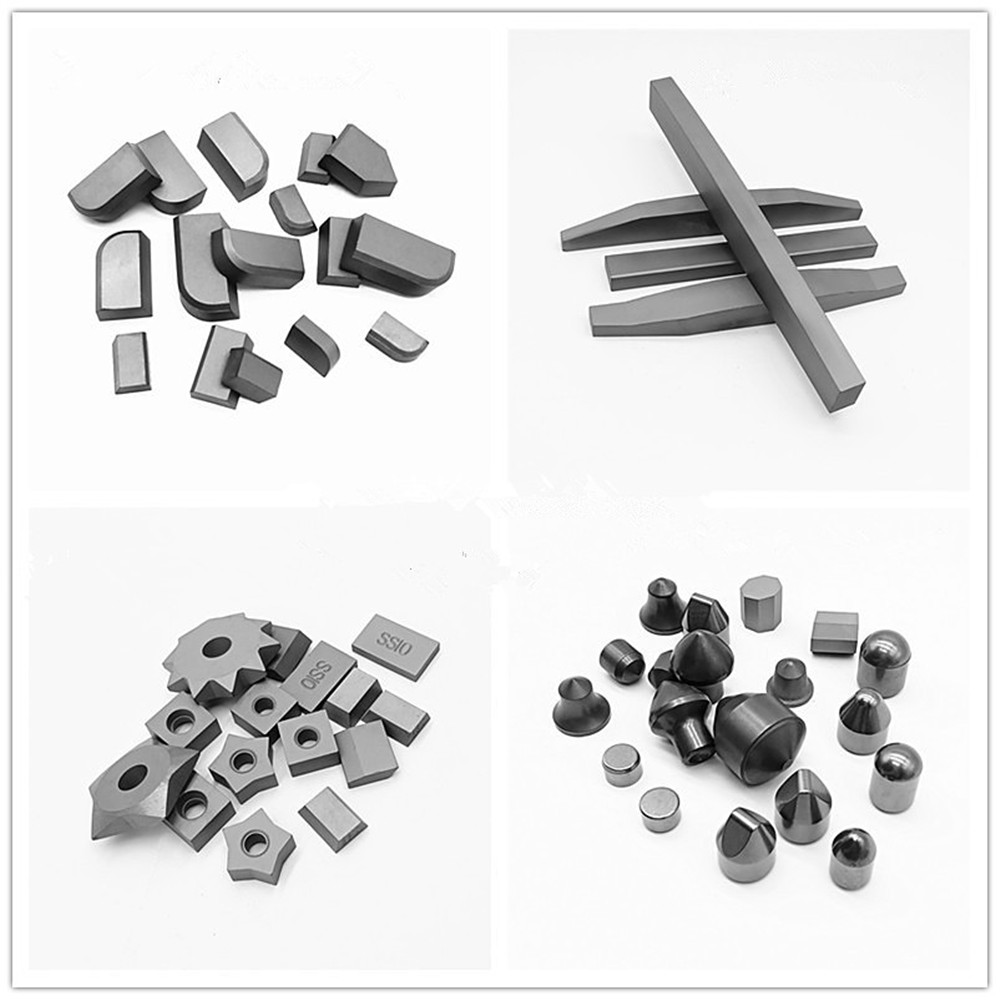

Main Products From Zhuzhou Kerui Cemented Carbide
