X40G Industrial PC

Embedded Industrial computer brings a high level of performance and low level of power consumption. Used for data computing, remote monitoring, and the integration of hardware and software technologies, the fanless industrial mini PC is ideal for computing solutions for tight spaces because mini industrial computer is designed with small footprints and multiple I/Os. Our entire line of industrial computer: Fanless, which reduces maintenance costs and minimizes downtime；Sealed, so they are resistant to dust, debris, and fluids；Noiseless, since they use a passive cooling system instead of fans. With its bus structure and modular design, this kind of embedded industrial PC can be better shielded from external interference and will operate more stably.

Product Details

CPU: Intel Core i5 7200U,7300U, 8250U 8350U, Core i7 7500U,8550U 8650U

BIOS: American
Memory(RAM): 2* Dual Channels ,DDR4 2133/2400/2666MHz, 2* 260-pin SO-DIMM

Hard Disk: Support 1* mSATA SSD+2*2.5" SATA SSD/HDD

Dual Display: VGA+HDMI Support Dual-line Synchronous or Independent Display

Ethernet port: 2x RJ45 10/100/1000Mbps Inte i211AT Gigabits Ethernet
WIFI: Module with dual antenna
Power: Input: AC 100-240V 50-60Hz, Output: DC 12V 5A/ 60W
OS Supported: Win 10/8 /7 Linux, Ubuntu,Centos, etc.
Features: 1.Support WiFi, 3G/4G
                 2.Support Wake UP on LAN, S5 RTC Wake Settings(Power on at a set time), PXE Boot, Restore on AC powe loss(Auto Power on).
Operating Temperature: -20~65℃
Storage Temperature: -20- 85℃(15℃-35℃  Recommended)
Relative Humidity:10%~90% ℃ Relative humidity, No condensation

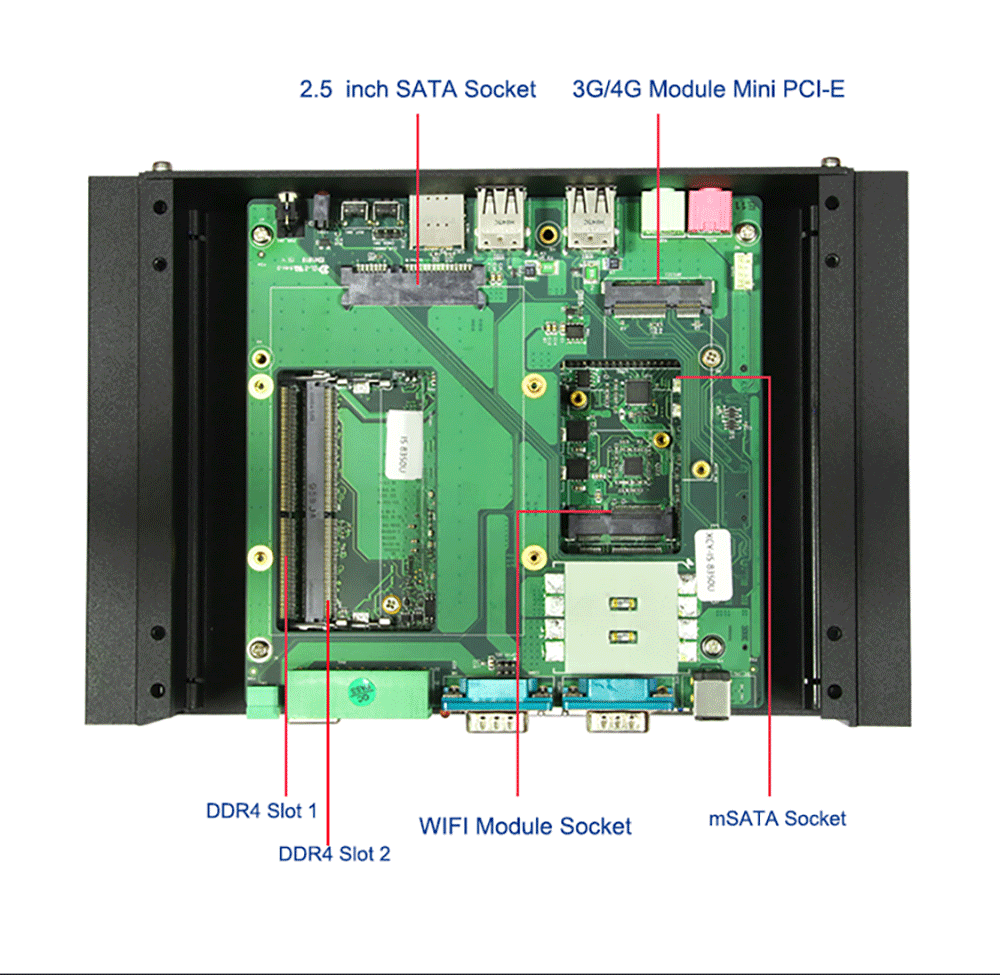

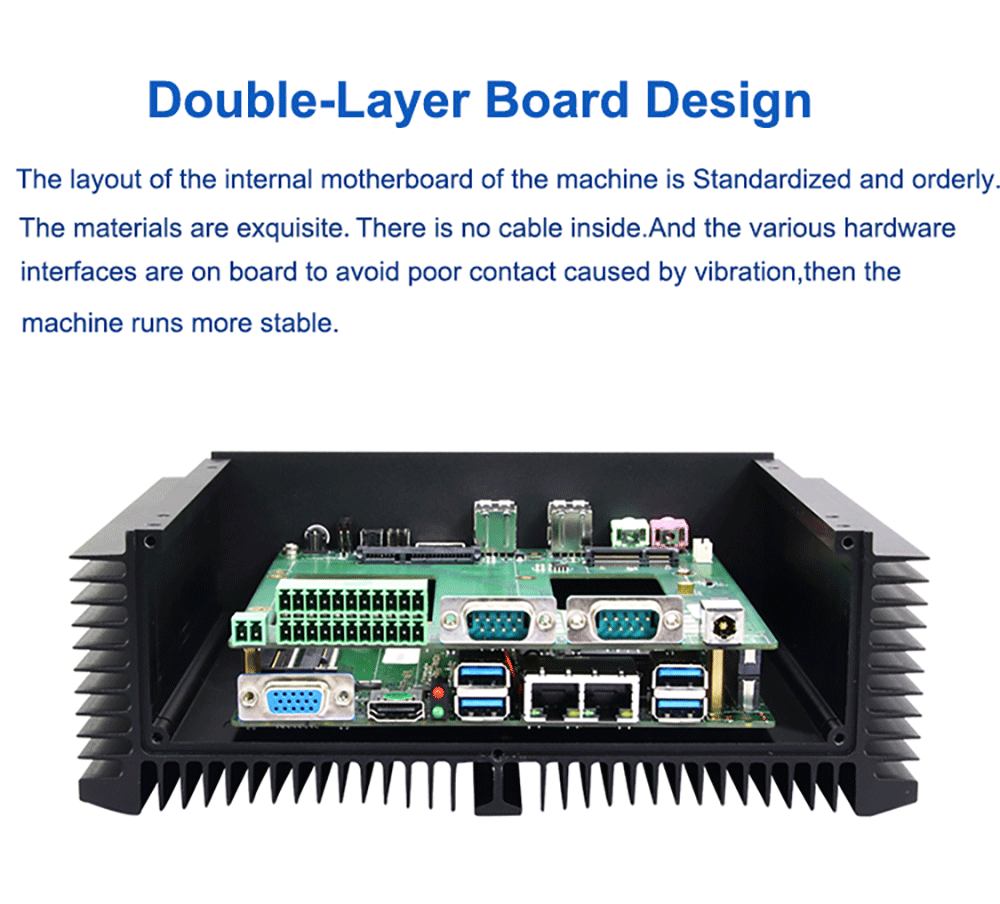

This embedded industrial PC adopts the double-layer board design. The layout of the internal motherbord is standardlized and orderly. No cable inside. And the various hardware intertaced are on board to avoid poor contact caused by vibration,then the industrial

computer works more stable.And this mini industrial PC supports two memory sticks, one mSATA solid state drives, two 2.5inch hard drives, and 3G or 4G Lte with SIM card.It is more convient with remote wireless communication without wiring trouble.

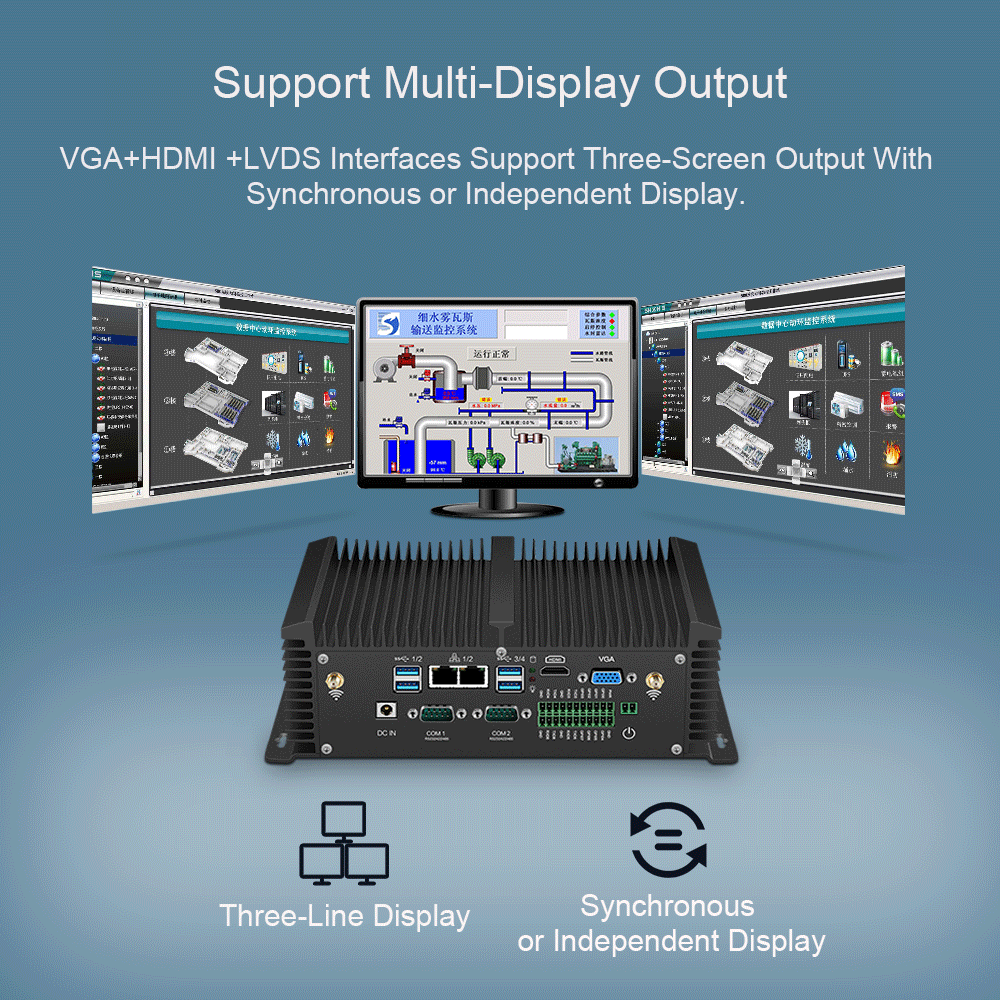

This industrial PC support multi-display output. There are HDMI, VGA and LVDS on the motherboard,

so it can be connected to three screens.

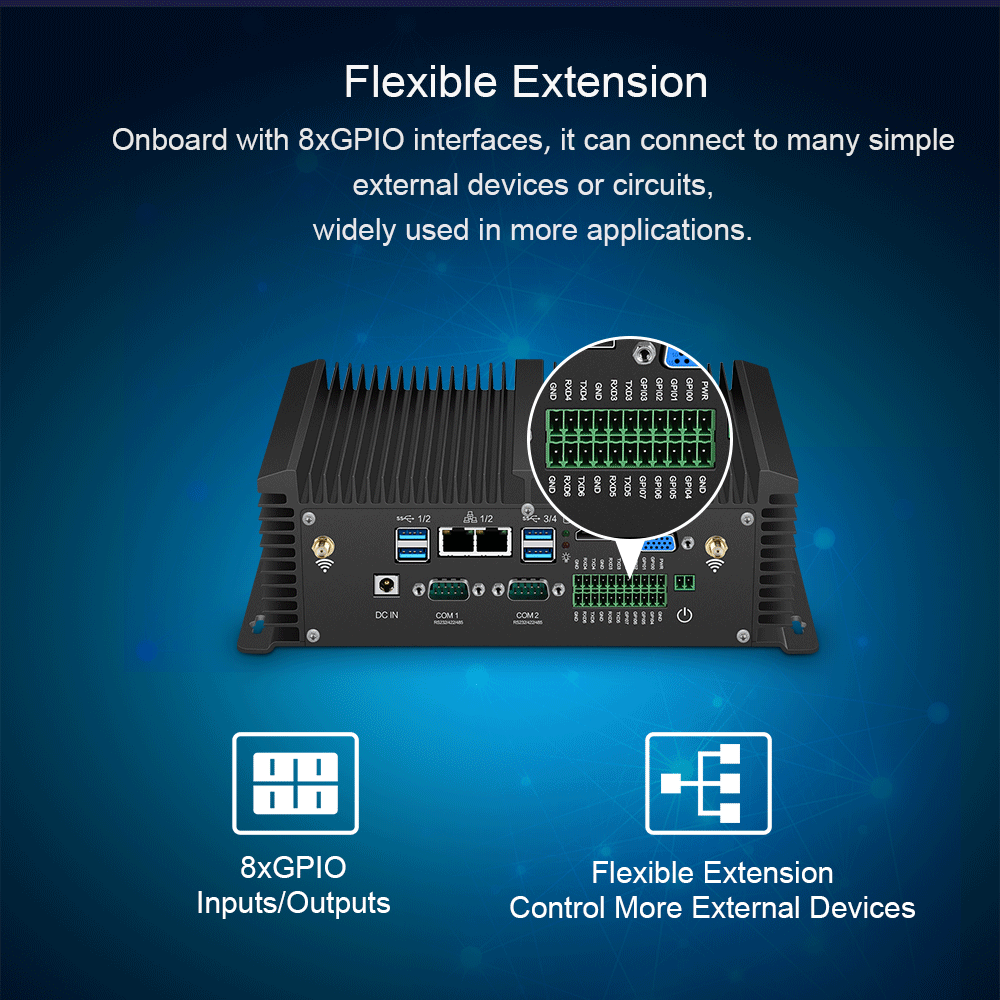

Onboard with 8x GPIO interfaces, it can be connected to various simple external devices or circuits, widely used in more applications.

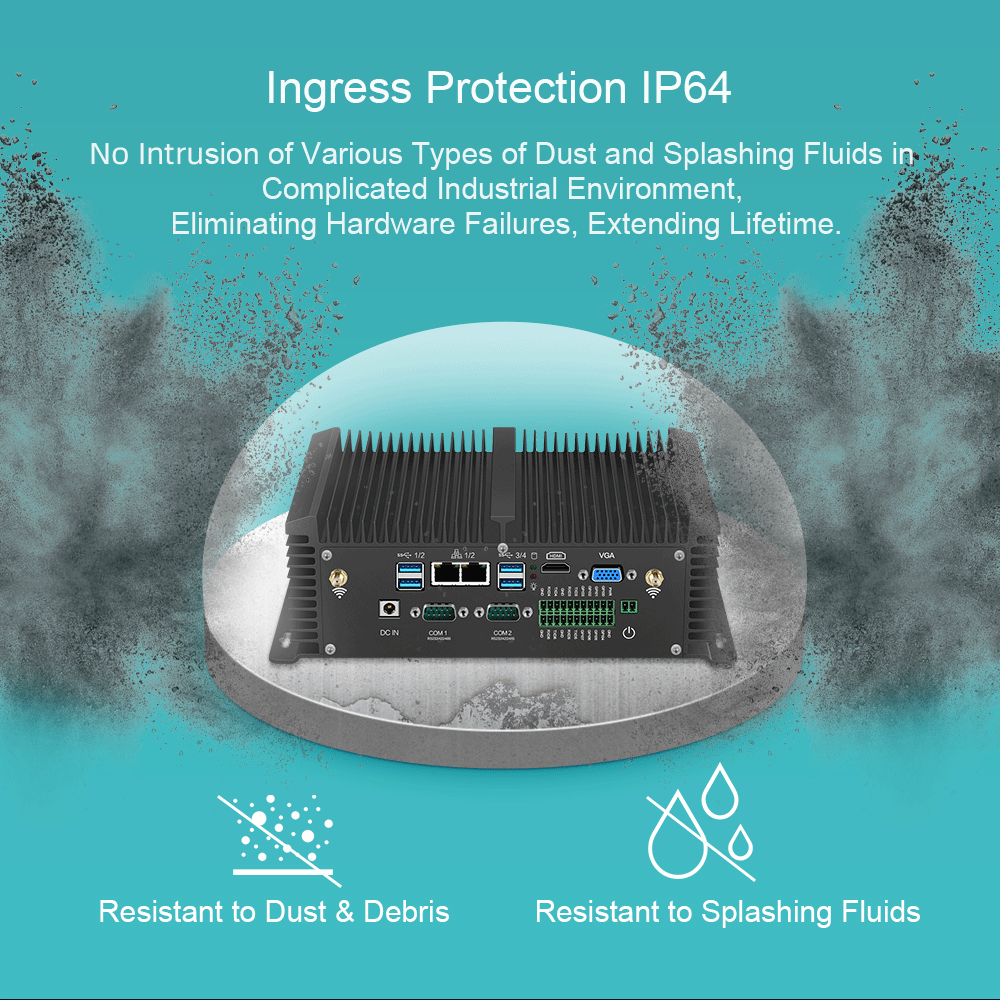

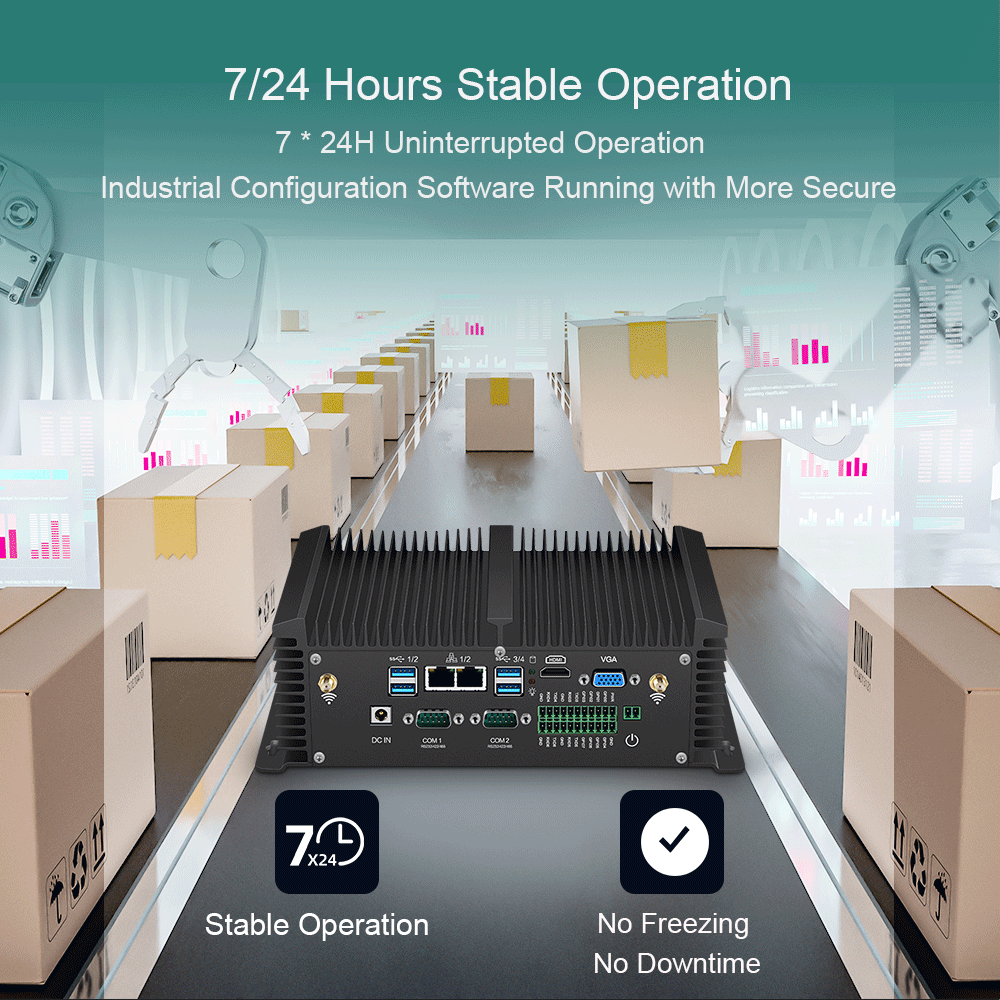

With IP64 ingress protection, the fanless industrial computer works without intrusion of various types of dust and splashing fluids in complicated industrial environment, eliminating hardware failures, extending lifetime. Based on the fanless design, it can run more stably with 7/24 hours and reliably in terminals, multimedia and for other industrial applications.

The industrial computer is widely used for industrial automation,such as intelligent robots, assembly line robots, automation equipment, digital signage, education all-in-ont machine, electronic whiteboard , multimedia classroom, multi-functional conference hall , smart home, OT/IOV/ETC Gantry MES workshop , and other IoT systems.
