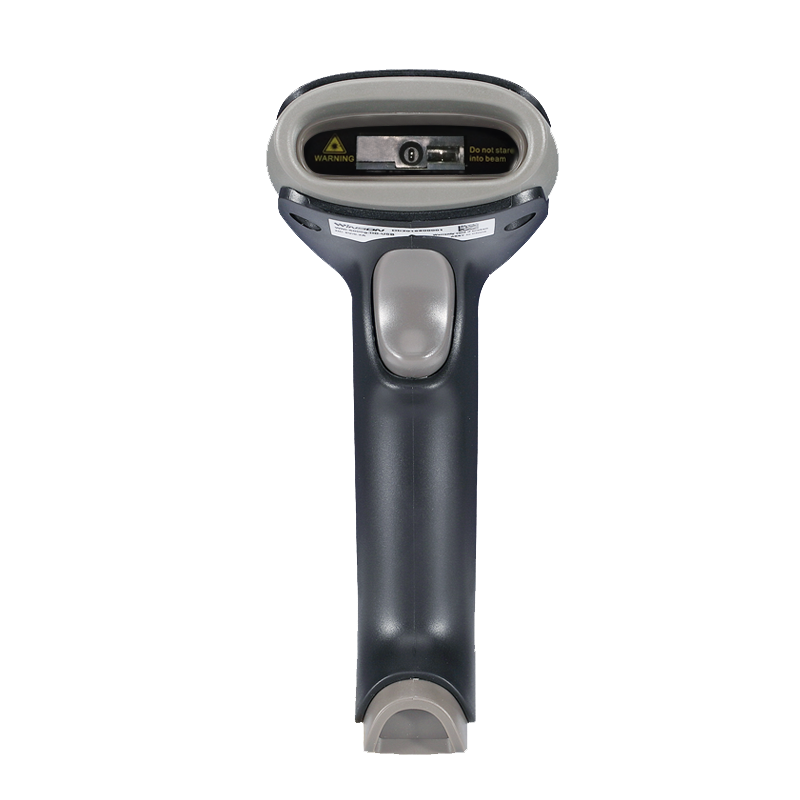

low price handheld wired 1d barcode scanner USB/RS232 CCD bar code reader1
3 year ago
Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand 1d Barcode Scanner Module.
Auto-sensing scanning saves power and time -- when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly Embedded Scanner.
Can scan the phone, computer and other electronic screen Small Barcode Engine.
|
Interface Supported
|
RS-232/USB HID KEYBOARD/USB VCP
|
|
Input Voltage
|
DC 5V±10%
|
|
Current
|
Max:135mA
|
|
Image Sensor
|
CCD Linear Sensor
|
|
Sensor Resolution
|
1500pixels
|
|
Light Source
|
632nm Red LED
|
|
Decoding rate:
|
350 scans/second±20 scans/second
|
|
Scanning Angle
|
Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
|
|
Min Resolution
|
0.127/5mil（PCS 0.9）
|
|
Min .PCS value
|
〉25%UPC/EAN 13（13mil）
|
