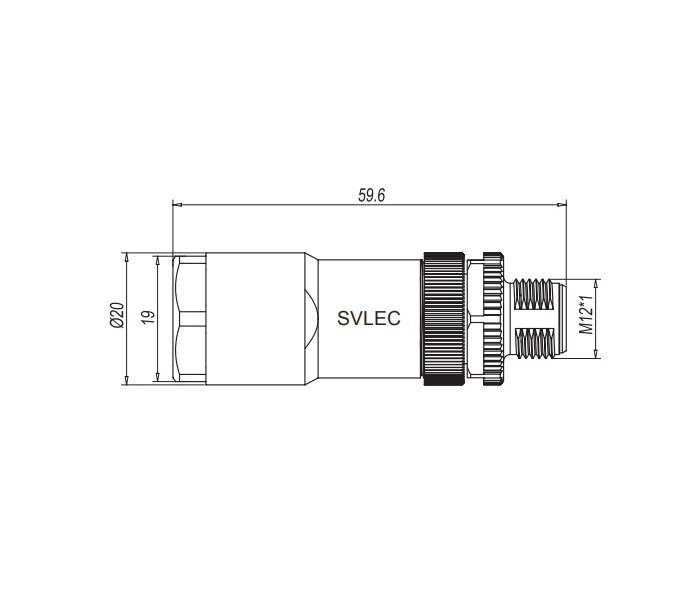

Field Wireable Spliter M12 Male Connector
M12 field wireable splite connector can used for replace of Y / T connector , by a 2 holes insert to splite the signals and power , It can provide a wide range of metric for small sensors and actuators.The ingress protection is available and rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts. Field attachable / mountable connector is also available for your choice.
Name:
M12 power connector
Cable diameter:
5.2-3.5mm
Voltage:
60V AC/DC
Current:
max.4A
Connection diameter:
max.0.75mm2
Housing material:
flame retardant plastic
Wiring method:
Screw terminals
Protection:
IP67
Temperature:
-25...+85℃
