medium frequency welding Concrete Rectangle Pile Cage Welding Machine1
2 year ago
| Diameter of welded frame | ø250-ø550( as users require) |
| Length of welded reinforcement cage | 4M-15M |
| Number of longitudinal reinforcements | 6, 7, 10 , 12, 14, etc |
| Diameter of hoop reinforcement | ø7.1, ø9.0, ø10.7, ø12.6MM |
| Cage pitch | 0-100mm |
| Driving power | 8.4KW-15.2KW |
| Welding power | 200KVA-300KVA |
| Diameter of hoop reinforcement | ø4- ø6 |
| Controller | NC controller |

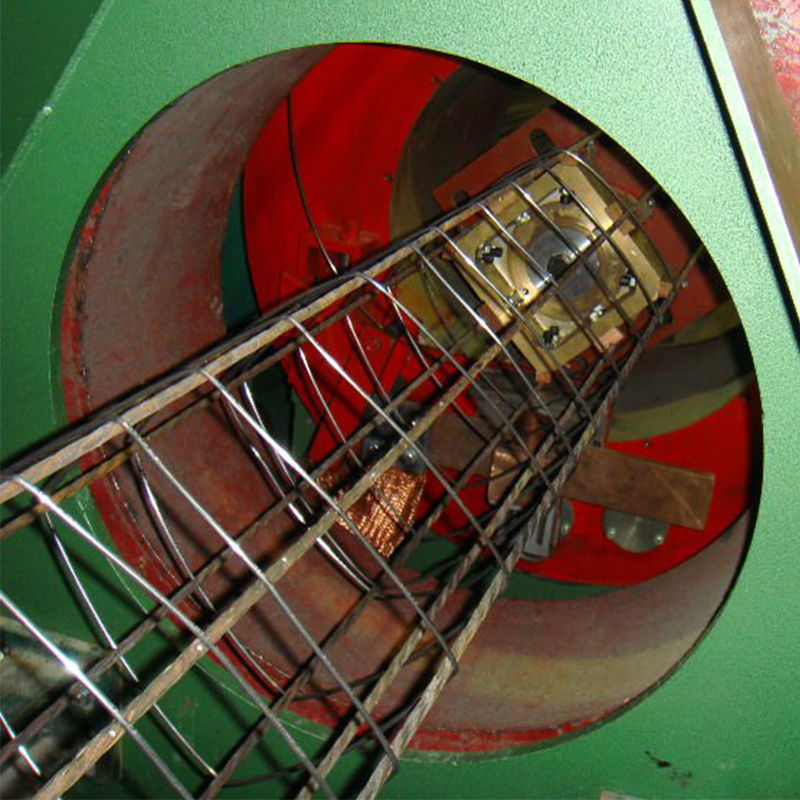

prestressed spun concrete pile cage welding machine is a special-purpose welder used to-
produce the high-strength concrete pipe pile reinforcement cages. The welder is widely-
appliedto reinforcement cage welding by self-stressing and prestressing pretensioning-
method and post-tensioning method.
1. Host speed up to 43 r/min, is three times as much as the current domestic similar equipment.
2. Failure rate is extremely low, is 1/20 of the similar products.
3. High weld strength, unlike similar products have a very serious phenomenon of reinforcement.
4.Can cage welding square body, the function, can save factory in hooped cost USD2000-3000-
5. Welding copper head loss was only about 1/30 of the similar products, annual cost saving-
about USD2000-3000.
6. l general manufacturers use our products to meet the production requirements, compared
with similar products to save labor costs RMB 100000 per year, energy costs about
USD2000-3000.
7.Use this product than use similar equipment can save USD30000-50000.
Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui
machinery manufacturing co;, all abroad (overseas) tasks and international businesswill be
undertaken by "amity care ".
We are manufacturers of centrifugal spinning machine ,mould ,heading machine ,cutting
machine,cage welding machine , tension jack for pre-stress .feeding machine for different
capacity ,weave welding machine ,sheet cutting machine etc. we also can supply setting up
a new factory full line service . We have already exported various kinds of concrete pile ,
pole and pipe concern making machines to overseas countries and regions such as indonesia
,parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
