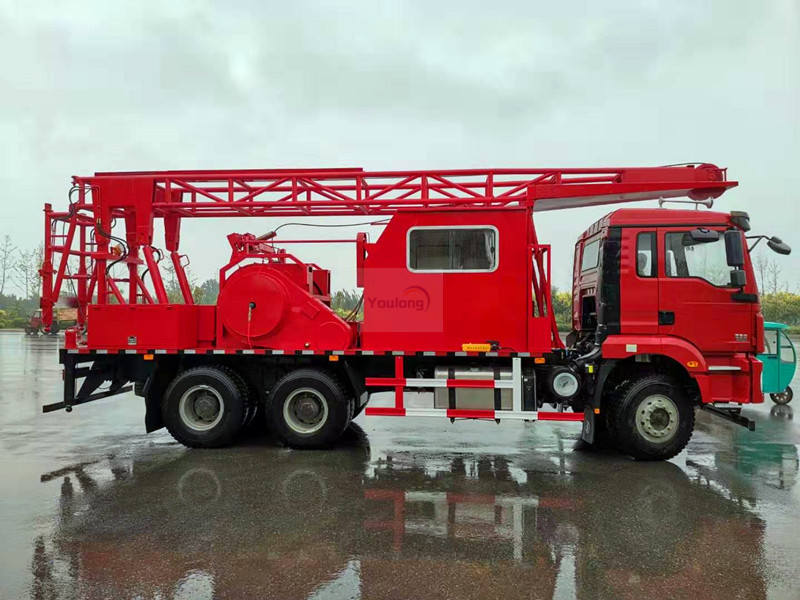

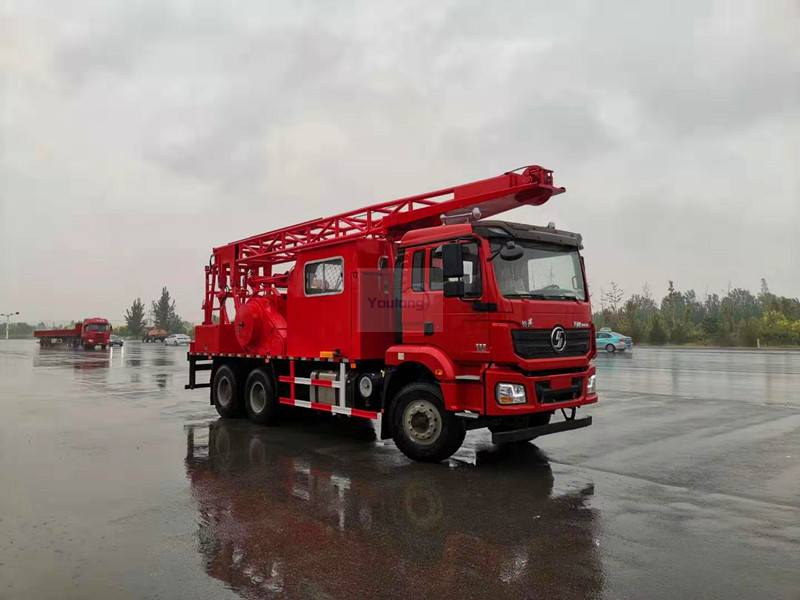

Model YL5230TCY oil extraction truck

1. Main technical parameters of the whole machine

1. Vehicle model and name: Type YL5230TCY type oil production truck

2. Working height of the derrick: 11m

3. Maximum oil production operation depth: 3000m (Φ 16mm wire rope) / 3900m (Φ 14mm wire rope)

4. The maximum lifting load at the maximum diameter of the drum: 45 kN

5. Maximum lifting load at the minimum diameter of the drum: 120 kN

2. Technical requirements for configuration and main assembly

Automobile chassis

1, Model and category: Shaanxi Automobile brand second-class automobile chassis, drive type 64, national product, F3000 export type

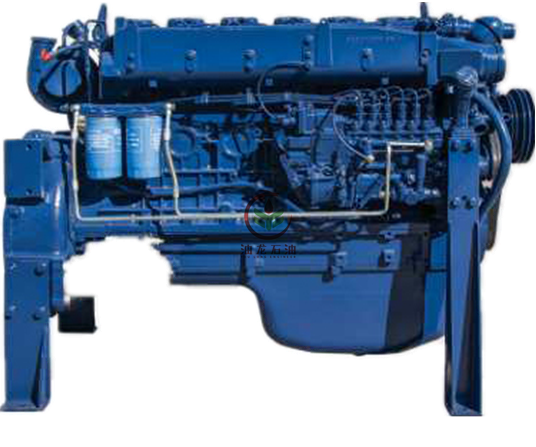

2. Diesel engine power: 336HP

3. Wheelbase: 4375mm + 1400mm

4. Tire specification: 12.00R20 (including spare tire)

5. Install built-in air conditioning in the cab.

Type YL5230TCY oil production truck unit

Expansion cylinder

1. It is mainly composed of bearing seat, input sprocket, roller and clutch, etc., and the main components are connected by a single open shaft. The drum is equipped with an oil tray under the drum, the oil tray is closed around, the oil tray is installed 1 inch oil discharge pipe, the oil discharge pipe leads to the side of the car, and the oil discharge valve is installed at the end of the oil pipe. Iron plate protection (500mm high), and the lifting cylinder oil pipe is installed back to increase the space between the drum and the cylinder.

2. Main technical parameters

⑴, Drum type: YJC 12

⑵. Roller rope capacity: 3000m (with Φ 16mm wire rope) / 3900m (with Φ 14mm wire rope)

⑶. Maximum working depth: 2850m (with Φ 16mm wire rope) / 3750m (with Φ 14mm wire rope)

⑷. The maximum lifting load at the maximum diameter of the drum is: 45 kN

⑸. The maximum lifting load at the minimum diameter of the drum: 120 kN

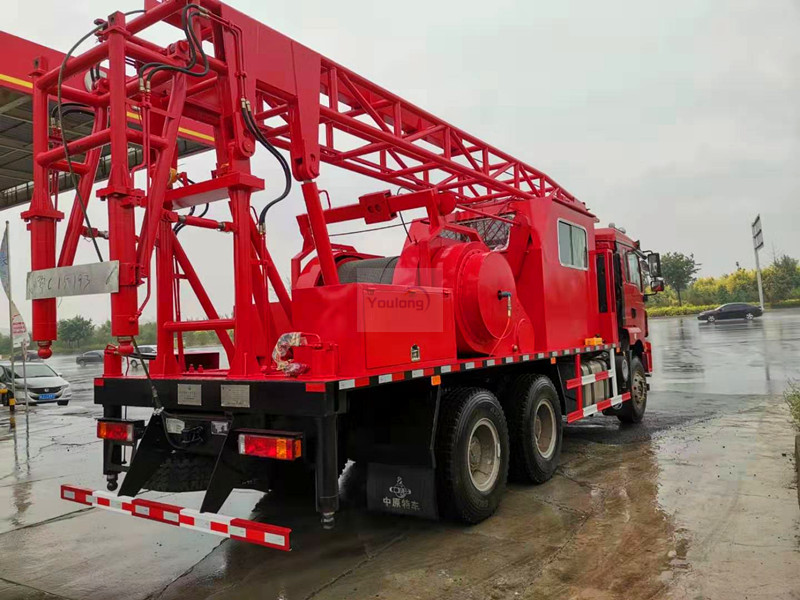

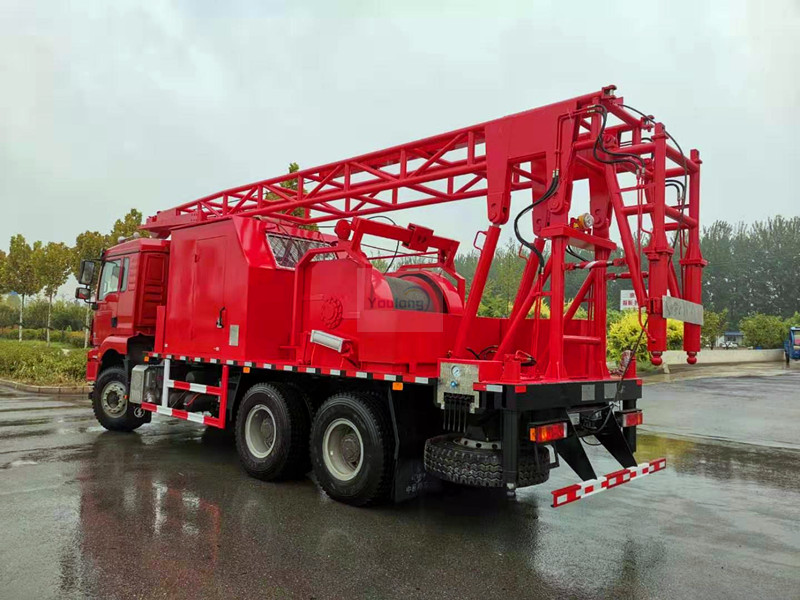

Derrick

1. The derrick is a truss structure. The trolley pulley and deep finger weight detection device are installed at the front, the hydraulic leg is installed at the rear of the derrick, and the derrick is fixed on the rear support of the derrick. Cover the bottom of the lower end of the derrick and install the ball valve.

2. The derrick and the front support of the derrick should be connected with a stretched rope, and the sky wheel cable should pass through the middle of the outer side of the iron plate to prevent pressure loss during the landing frame. The outlet of the cable at the rear cable should be protected by transitional soft connection.

3. Main technical parameters:

⑴, derrick structure type:: truss structure (derrick tail is folded)

⑵, Derrick width:: 860mm

⑶, Working height of derrick: 11m

⑷. Maximum working load of the derrick: 120 kN

Hydraulic pressure system

1. It is mainly composed of leg cylinder, lifting cylinder, fuel tank, gear pump and control valve. Used to adjust the frame balance and derrick rise and fall.

2. Max. volume of the hydraulic fuel tank: 150L

Gas system

It is mainly composed of cylinders, gas control valve parts and pipelines, used to complete pneumatic braking, shift and throttle control, while providing air source for the drum clutch. The air pipeline of drum pneumatic brake and clutch adopts high pressure hose.

Rowing mechanism

It is mainly composed of mechanical row rope and manual intervention mechanism, which can arrange the wire rope neatly on the drum to prevent the wire rope from damaging the wire rope.

Brake system

It includes two parts, manual mechanical double-sided brake system and pneumatic emergency brake system, which can meet the brake requirements respectively.

Cab

1. A metering display device is installed in the operation room, which is used to measure the well entry depth and drum tension of the wire rope during the operation.

2. Sats are installed in the operation room. The transmission gear, chassis engine control, the master clutch control, the drum clutch control and the drum brake are all carried out in the operation room.

3. Open a 50mm round hole in the lower right of the drum near the operation room, which can make the liquid pipeline of the hand pressure pump and the hydraulic anti-spray box pass through. The round hole is wrapped with rubber to prevent damage to the pipeline, and the protective net is installed in the front window of the operation room.

4. The seat in the operation room is a mechanical seat, which can be adjusted up and down, and is convenient for the operator to operate.

5, the throttle control during the operation adopts the electronic throttle control. Wear the grinding pulley of the wire rope on the upper part of the operation room. The door lock of the operation room adopts special car lock, with air hook, and the operation room with horn switch.

6, equipped with a winter thermal insulation system (engine water heating).

7. According to the operation room space, install the toolbox with the appropriate size, which can be used as a temporary seat.

8. Install hooks on the wall of the operation room.

Other

1. Fire spade box and fire extinguisher box can be installed between the operation room and the cab. Two 8 kg fire extinguishers can be placed.

2. Install a toolbox.

3. Install the conductive electrostatic tape.

4. installed with night lighting explosion-proof lights.
