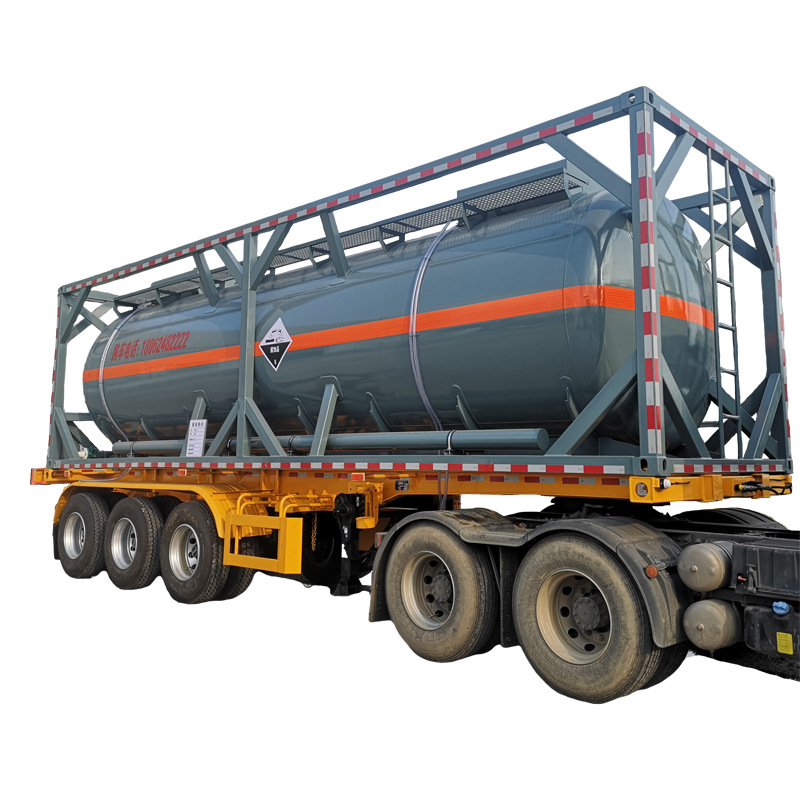

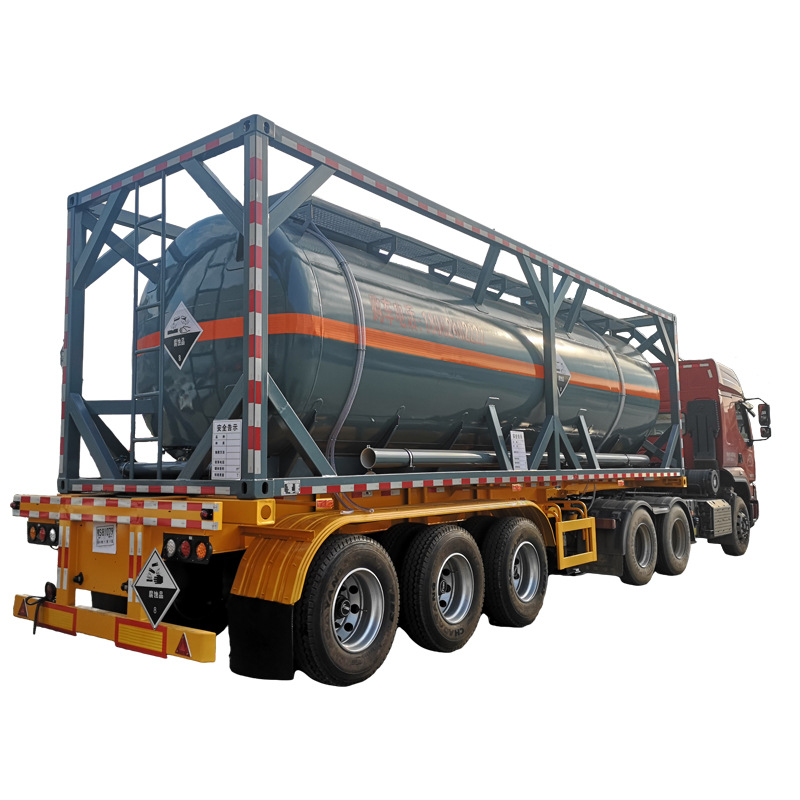

Liquefied Gas Tank Container
Liquefied gas tank container is a container specially designed for the safe transportation and storage of liquefied gas. It has high pressure resistance, corrosion resistance and good sealing performance, and is widely used in chemical, energy and other industries.
Product features:
1. CCS, BV, LR and other certifications have been passed, and other international classification society certifications can be obtained according to user needs to meet international shipping requirements. The product complies with IMDG, ADR, RID, CSC, TC, UIC, ISO1496/3, US.DOT, TSG and other specifications. Suitable for road, water and rail transport containers worldwide.
2. Product working pressure, volume, medium, etc. can be designed according to user needs.
3. All tank containers reduce the deadweight of the tank container and increase the volume of the tank container while ensuring the safety of the tank container.
4. A variety of brands of valves are available for selection.
Product Details:
- Box specifications: 20 feet, 30 feet, 40 feet
- Nominal volume: 24m³-35.4m³
- Working pressure: 0.7MPa-3.45MPa
- Design standards: GB, ASME and other standards
- Loading media: anhydrous ammonia, butadiene, butane, butene, R22, cyclopropane, R152a, dimethylamine, propylene, propane, dimethyl ether, ethylamine, ethyl chloride, R32 and other suitable media.
Outer Tank and Reinforcement
1. The outer tank body is constructed using high-strength steel material that can withstand the external pressures and environmental conditions. Circular profile reinforcing ribs are welded onto the external circumference of the outer tank body cylinder. These ribs are uniformly distributed, providing structural support and enhancing the overall rigidity of the tank.
2. The reinforcing ribs also facilitate easy welding and removal of welding burrs from the internal circumference of the outer tank body cylinder. This ensures that no welded junctions are left in the gap between the inner tank body and the outer tank body, maintaining the vacuum degree of the gap and improving insulation efficiency.
Inner Tank and Insulation
1. The inner tank body is made of metal material suitable for the temperature of the liquefied gas to be stored. The inside surface of the inner tank is coated with a layer of polyurethane foam, which is sprayed and foamed to ensure complete coverage. This foam layer provides excellent thermal insulation, reducing heat transfer and minimizing the vaporization rate of the stored liquefied gas.
2. In addition, a gap is reserved between the inner tank body and the outer tank body. This gap is filled with powdered coldness preserving material, which further enhances the insulation properties of the tank container. The combination of polyurethane foam and powdered coldness preserving material ensures that the tank maintains the desired temperature and pressure conditions for extended periods.
Insulation Layers
To further improve the insulation performance, coldness preserving layers are installed both outside and inside the metal cylindrical inner tank. These layers are made of materials that have excellent compression-proofness and thermal insulation properties. The outer coldness preserving layer is supported by an iron-reinforced concrete slab, which is installed onto the ground. This design ensures that the tank container is stable and can withstand external forces.
Safety and Compliance
The liquefied gas tank container complies with rigorous safety and environmental standards, ensuring the safe and efficient storage and transportation of liquefied gases. It is designed in accordance with international standards and regulations, including those related to pressure vessels, cryogenic storage, and marine transportation.
Safety Features
1. Pressure Relief Devices: Equipped with pressure relief valves and rupture discs to prevent over-pressurization and ensure safe operation.
2. Fire Protection Systems: Installed with fire detection and suppression systems to mitigate the risk of fire and explosion.
3. Monitoring Systems: Equipped with sensors and monitoring systems to continuously monitor the temperature, pressure, and level of the stored gases.
4. Emergency Shutdown Systems: Incorporates emergency shutdown systems to safely shut down the tank container in the event of a hazardous condition.
