F1A, F1B And F1E Accept Light Customization
3 year ago
Direct manufacturer with design patent and utility model patent; CB CE RoHS Approval.
Customized logo or packaging is available. Led Emergency Pack
Product Description: Emergency Pack Module
|
Model |
FAT-LED-F1A |
Battery |
3.7V 2400mAh |
|
Input Voltage |
AC85-265V 50/60Hz |
Working Temperature |
0~55ºC |
|
Input power |
3W to 40W (50W max.) |
AC fuse |
1A 250V |
|
Output power |
4W |
DC fuse |
5A 250V |
|
Type of lamp |
LED luminaire with external led driver |
Switching time to Emergency |
<2S |
|
Charging time |
24Hrs |
IP Rating |
IP30 |
|
Backup duration |
>2Hrs |
Dimension |
133x55x21 mm |
Product images

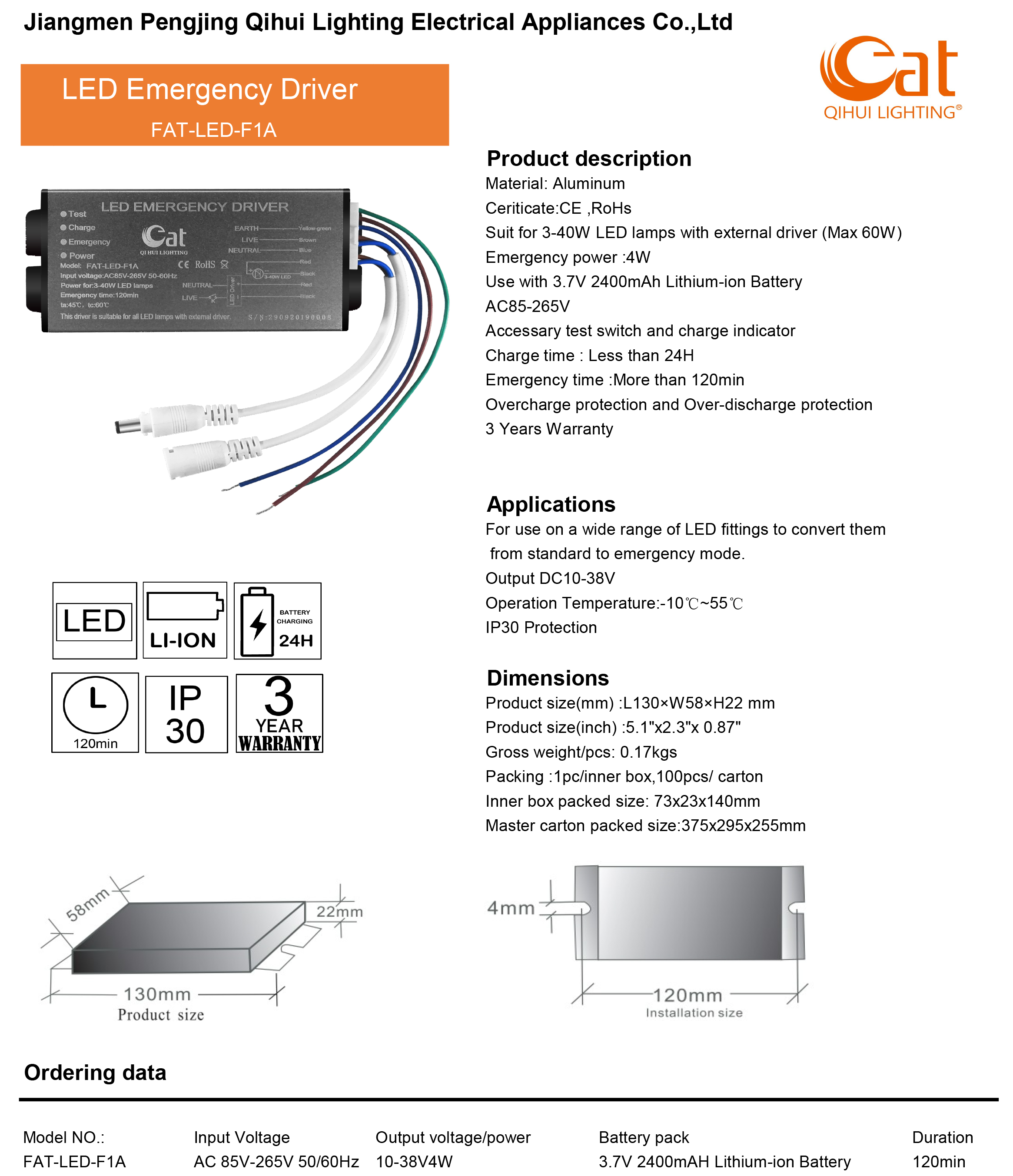

FAT-LED-F1A: Battery Backup Led Light
Aluminum alloy external housing: high-performance heat dissipation. 20w Emergency Battery Backup
FAT-LED-F1A-2: with external test button indicators (more details please click the below image)
FAT-LED-F1A-CB: PASS CB FROM TUV. (for more details please click the below image) Battery Backup Led Lighting
Battery and light source
Note: The positive and negative of battery should not be connected reverse, and we should avoid directly short-circuit the battery. Explosion will be caused if using unmatched battery. Please abide by local rules when discarding old battery.
Warning: As the inner PCB includes 220V/50HZ high voltage, so it must be unloaded/opened ONLY by professional technician.
Test button Led Emergency Inverter
- Can test if emergency driver working properly during regualar inspection.
Indicator Light
- Red indicator: charging status
- Blue indicator: emergency status
- Green indicator: main power status
|
Problems |
Analysis |
Solution |
|
Green Light not working
|
Something wrong with the led driver |
Checking the led driver |
|
Green light is broken or the circuit is disconnected |
Checking circuit or changing green light |
|
|
Red light is off
|
Not being charged |
Checking the charging circuit or battery |
|
Red light is broken or the circuit is disconnected |
Checking circuit or changing red light |
|
|
Battery is full charged |
Disconnecting the main power supply, make the led lights work in emergency status for 30 minutes, make the led light return to work in main power status again |
|
|
Blue light is off
|
The battery is open circuit |
Checking the battery |
|
Light source is open circuit or short circuit |
Ensuring light source is connected correctly |
|
|
PCB is broken |
Checking the Maintaining the circuit board |
Dimension
Our Services
● Free design, free sample.
● 2-5 days delivery for urgent orders.
● Custom logo, custom color box.
Certification
With Certificate of design patent and utility model patent. CE RoHS CB approved.
