Sanding By Automatic Pressure Sander

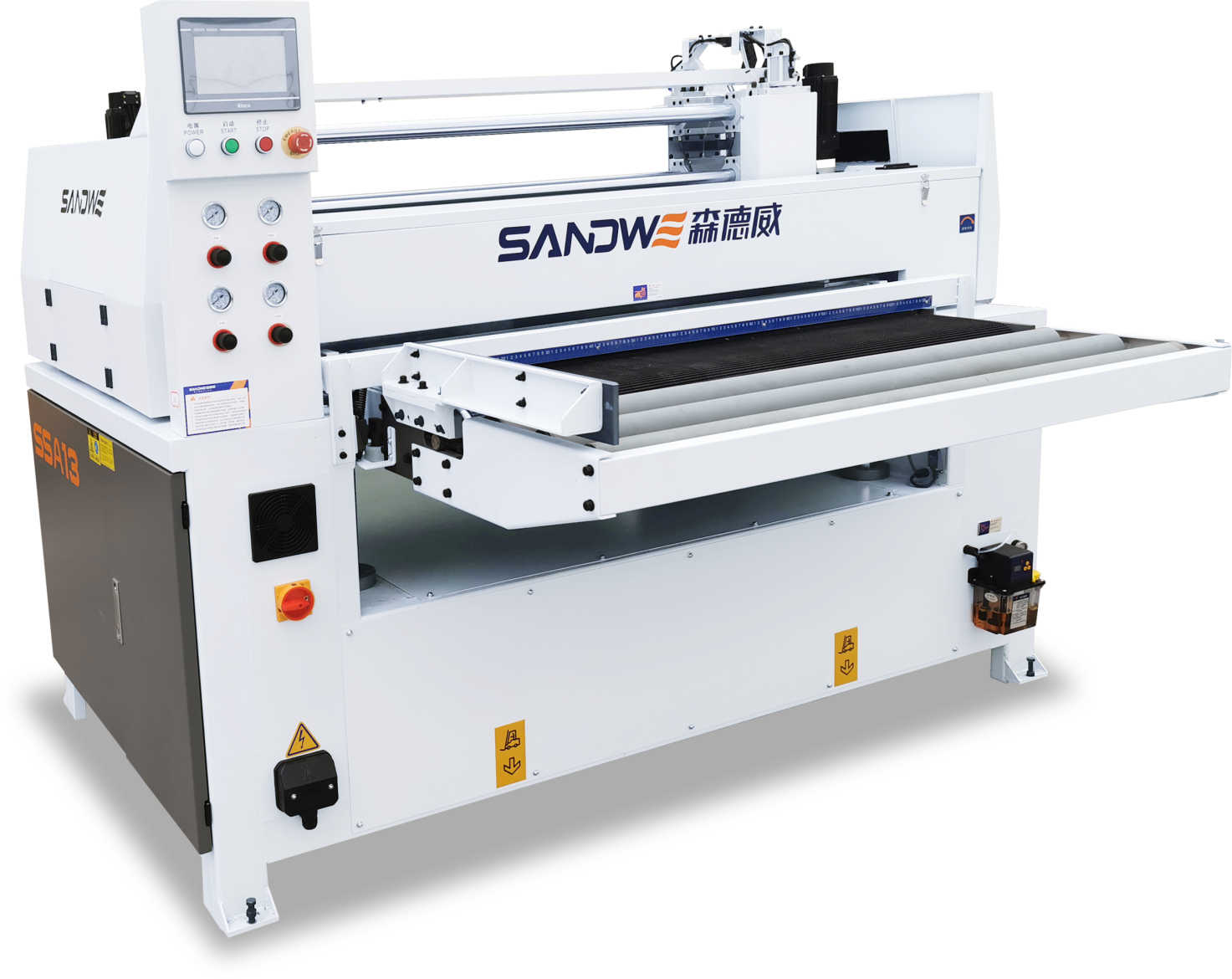

1、PHOTO：

2、Equipment application：

It is suitable for all kinds of solid wood, density board, veneer board and other materials. It is an ideal equipment for rough and fine sanding, polishing and polishing the plane of conventional wood board. It can realize the white blank and primer polishing of the plane through the combination of different components and different abrasives.

3、Mechanical configuration diagram：

1. Mechanical configuration specification: Description of NC sanding parts - H2 (forward and reverse groups). Adjustable CNC sanding pressure and speed are available for sanding the workpiece plane, targeting deformed plates, plates with significant dimensional errors, paint sagging, paint surface particles, orange peel effect, uneven grinding, and breaking the paint surface. It achieves a superior sanding effect.

6. Equipment characteristics:

1) This series offers a wide range of sanding processing capabilities. It can be used to sand solid wood, multilayer boards, density boards, white embryos, wood veneers, and primers on flat boards.

2) The machine features one-key start functionality along with full-automatic digital control and adjustment for simple and convenient operation.

3) The two sand heads are driven by servos to ensure accurate positioning while effectively protecting the head, tail, and sides of the plate from being penetrated by the abrasive material.

4) The system adopts PLC programming to control touch screen communication frequency converters. This allows for visual display operations such as adjusting settings or performing maintenance tasks

.7、Mechanical parameter description：
