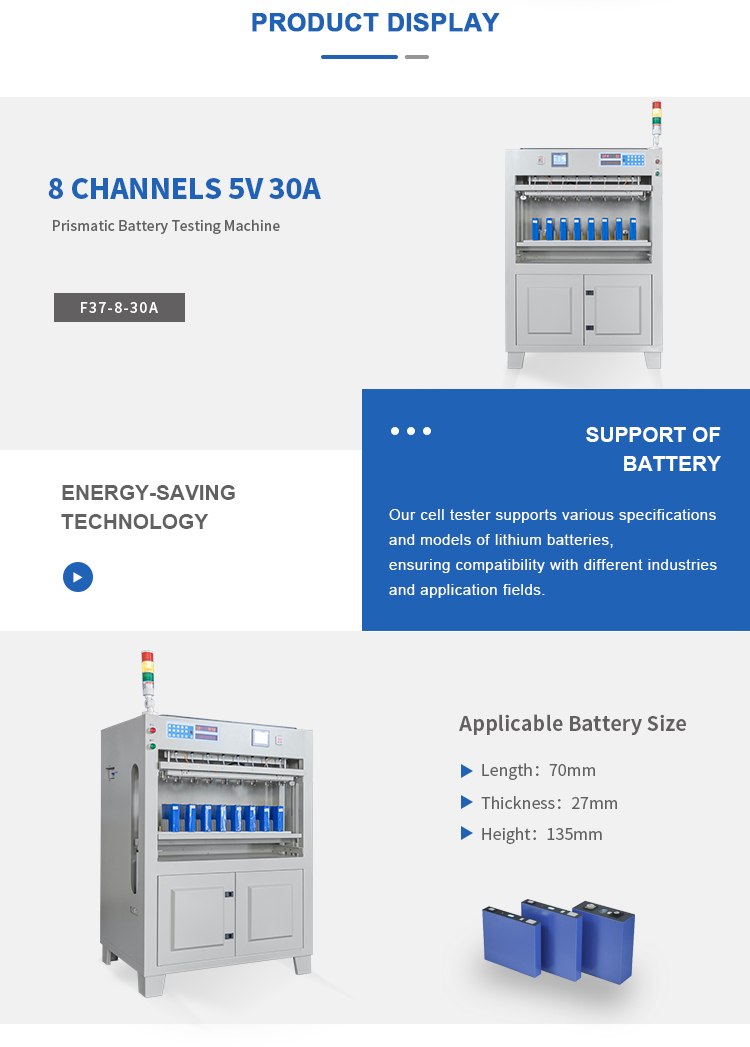

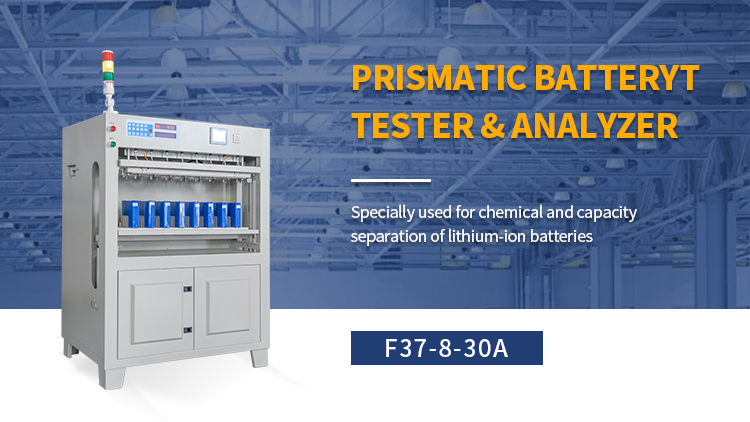

F37-8-30A Negative Pressure Formation Equipment for Power Batteries

Breakthroughs in Core Technologies

Negative pressure formation system: A vacuum environment that can be adjusted from -90kPa to 0kPa to improve the uniformity of electrolyte infiltration.
8-channel independent control: Each channel is equipped with an independent constant current and constant voltage source, supporting large current charge and discharge of 40A.
Four-wire impedance detection: Real-time compensation for contact resistance errors, with a voltage accuracy of ±(0.5‰ of the reading + 0.5‰ of the full scale).

Performance Advantages

Efficient Energy Management

The Lithium Ion Battery Tester features high - efficiency charging and discharging capabilities. The charging efficiency of the Lithium Ion Battery Tester is ≥ 80%, and the discharging efficiency is ≥ 70%, saving more than 30% of the annual electricity cost.

The bidirectional inverter technology enables the feedback of electrical energy to the power grid.

Precise Control System

A wide current range of 40A (80mA - 40A) meets the testing requirements of fast-charging batteries.

With a control resolution of 1mV/1mA, it supports parameter adjustment at the micro level.

Smart Production Adaptation

It supports the programming of complex processes with 32 working steps / 256 cycles.

Automatically generates a three-dimensional curve of voltage - capacity - time.

It has seamless docking with the MES system to achieve traceability of production data.

Differentiated Design

Compact Model: With a small volume of 1100×650×1300mm, it saves 60% of the factory space.

Negative Pressure Stability: It can stably maintain a vacuum degree of -80kPa, improving the consistency of battery formation.

Modular Maintenance: The fixtures, constant current boards, and negative pressure suction nozzles support quick replacement.

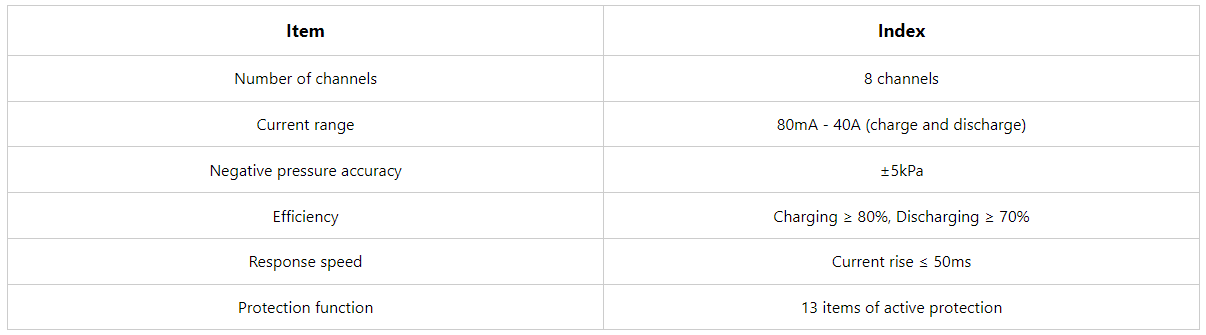

Technical Parameters

Equipment for Lithium-Ion Cell Formation

Application Scenarios of Lithium-ion Battery Load Tester.

· R & D and testing of power batteries

· Small batch production of end batteries

· Performance verification of battery materials

· Development of batteries for special environments

Battery formation equipment offers efficient solutions for the R & D and production of power batteries through negative pressure formation technology, high - precision control, and a compact design. It supports a 72 - hour rapid response service and lifetime software upgrades to ensure the continuity of R & D and production.
