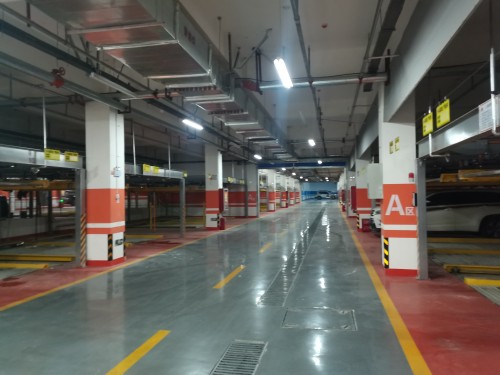

Innovative Two-Layer Pit Puzzle Parking System
2 year ago
1. Basic Information
- Product Name: PSH-2 Pit-type 2-Level Lifting and Horizontal Sliding Parking System
- Brand: Fengye
- Origin: Jiangsu, China
- Certification: ISO9001, GB/T33000
- MOQ: 1 Set
- Payment Terms: T/T, L/C
- Trade Terms: FOB, CFR, CIF, EXW
- Shipping: Sea freight, Land transportation
- Port of Shipment: Shanghai, Tianjin, Lianyungang
2. Main Technical Parameters
|
Item
|
Specification
|
|
Rated Load
|
2000kg–2350kg
|
|
Applicable Vehicle Size
|
5300mm×1950mm×2050mm
|
|
Power Supply
|
3-phase 5-wire, AC380V 50Hz
|
|
Surface Treatment
|
Hot-dip Galvanized
|
|
Control System
|
PLC Intelligent Control
|
|
Driving Type
|
Motor driven (Chain / Steel wire rope optional)
|
|
Operation Mode
|
IC card, Touch screen, Button control
|
|
Lifting Speed
|
4–5m/min
|
|
Sliding Speed
|
7–8m/min
|
|
Access Time
|
≤60 seconds
|
|
Operating Noise
|
≤62dB
|
3. Product Description
① Shallow Pit & Smooth Access
② Double-layer Design, Double Parking Capacity
③ Full-range Safety Protection
- Intelligent PLC one-click operation with automatic positioning and obstacle avoidance
- Equipped with anti-fall device, overload protection, limit sensor, photoelectric detection, emergency stop button and power-off self-locking function
- Heavy-duty steel frame and anti-slip guide rail effectively prevent vehicle slipping, collision and accidental entry.
④ Core Advantages
- Cost-effective Solution: The shallow pit design cuts civil engineering costs by about 30%, with simple daily maintenance and lower long-term operation cost.
- Energy Saving & Low Noise: Low-power drive system and LED lighting reduce energy consumption. Optimized structure controls operating noise to meet green building requirements.
- Easy Expansion & Upgrade: Reserved interface for charging piles and intelligent parking management system to realize unattended operation. Multi-layer expansion is available for future parking demand growth.
- Wide Application: Suitable for indoor and outdoor scenarios including old community reconstruction, office buildings, hospitals, shopping malls and industrial parks.
4. Packaging & Delivery
- Selling Unit: Set
- Packaging: Standard export wooden package
- Delivery Time: 15–30 working days after order confirmation
- Service: One-stop solution including site layout design, manufacturing, on-site installation, commissioning and after-sales maintenance
