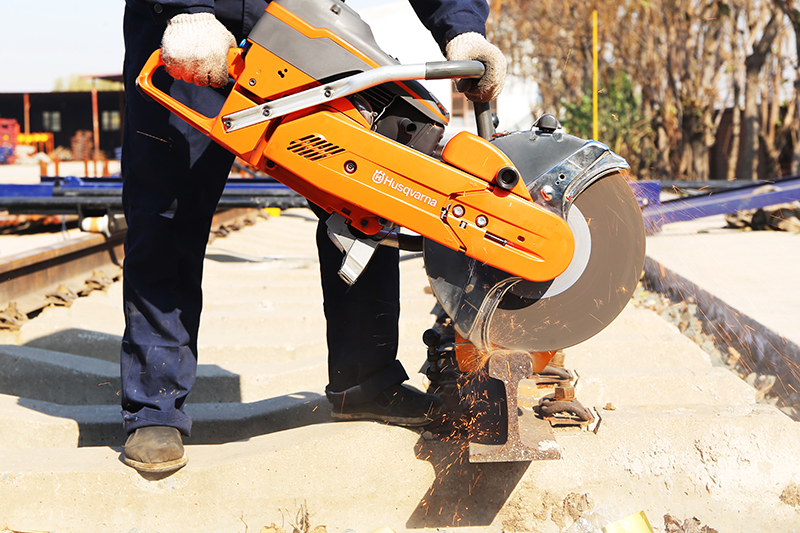

Lightweight Abrasive Rail Saw
PRODUCT FEATURES
NQG-5.8 lightweight abrasive rail saw is a Rail Maintenance Tool. It not only cuts rails with high speed and high quality, but also has low wear cutting discs. It is locked by rail clamps. It has a simple structure, light weight, safety and easy movement. Abrasive Rail Cutting Machine is suitable for maintenance, repair of broken rails of seamless tracks, and cutting of steel rails in long rail welding factories.
BENEFITS
● Adopt K 1270Rail single-cylinder air-cooled two-stroke petrol engine
imported from Sweden
● Rail cutting mechanism and rail clamp swing arm can be separated or assembled in short time
● The petrol engine drives the cutting disc to rotate through the belt to
complete the rail cutting function
● It can cut rails of 43~75kg/m rail on or under the line
● Anti-loose and fall off device is provided on the rail hook
TECHNICAL DATA
| Engine | Single-cylinder, air-cooling |
| two-stroke petrol engine | |
| (imported from Sweden K1270R) 5.8 kW | |
| Cutting disc form | Double- layer reinforced wire mesh |
| Linear speed of cutting disc | 100 m/s |
| Rated RPM | ≥4500 r/min |
| Specification of cutting disc | φ355xφ25.4 x3.8mm |
| Cutting accuracy | Vertical deviation of notch and rail≤0.30mm |
| Deviation of bidirectional cutting interfaces≤0. 35mm | |
| Cutting time | ≤110s( cut off 60kg/m rail) |
| Fuel tank capacity | 1.25 L |
| Dimensions | 850x480x500mm |
| Weight | 22kg |
