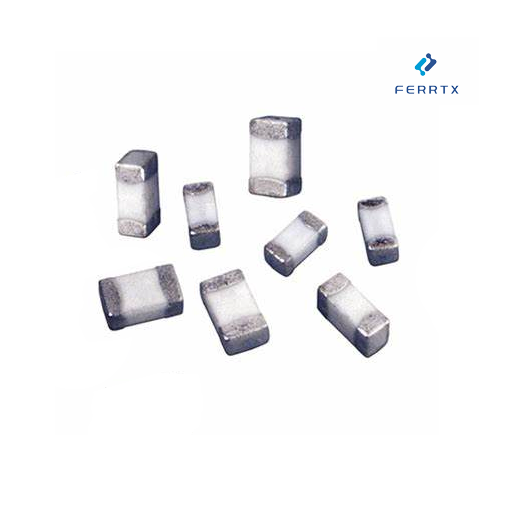

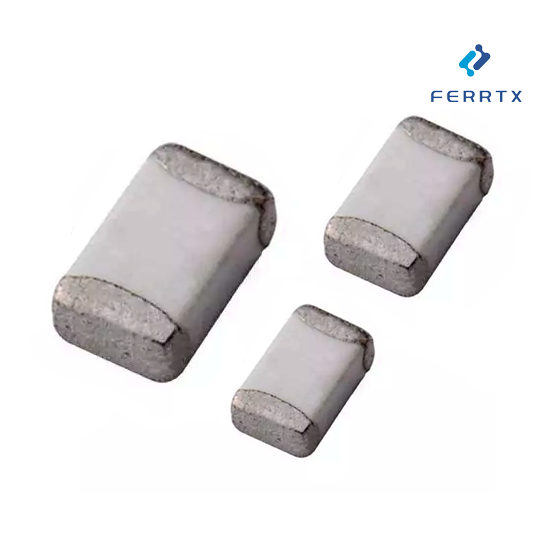

Multilayer Chip Inductor

6 month ago

18 0 

2 year

Product details

Surface mount multi layer chip inductor,

Ceramic and ferrite materials are optional‌

The ‌ integrates ‌Multilayer Chip Inductor‌ technology with ‌multilayer ferrite chip inductor‌ materials, optimized for precision in medical, telecom, and portable electronics.

Designed for ‌inductor low value multilayer chip‌ applications, these components ensure minimal resistance drift and high stability in compact, RoHS-compliant packages.

‌FEATURES

‌Advanced Thin Film Tech‌: Enhances performance of ‌High Frequency Inductor‌ and ‌Multilayer Chip Inductor‌ designs.

‌Small Lead-Free Size‌: Ideal for ‌multilayer ferrite chip inductor‌ integration in high-density SMT layouts.

‌Low Resistance‌: Critical for ‌inductor low value multilayer chip‌ efficiency in DC-DC converters.

‌Heat Shock Resistance‌: Protects ‌Multilayer Chip Inductor‌ integrity during wave/reflow soldering.

‌Enamel-Coated Glass‌: Ensures precision for ‌multilayer ferrite chip inductor‌ and ‌High Frequency Inductor‌ applications.

‌Eco-Friendly‌: Compliant with ‌inductor low value multilayer chip‌ sustainability standards.

APPLICATIONS‌

Medical/Testing Equipment‌: Reliable ‌High Frequency Inductor‌ stability for sensitive measurements.

Converters & Controllers‌: ‌Multilayer Chip Inductor‌ solutions for noise suppression in automatic systems.

‌Portable Electronics‌: Compact ‌multilayer ferrite chip inductor‌ designs for GPS, PDAs, and HDDs.

DC-DC Converters‌: Combines ‌inductor low value multilayer chip‌ efficiency with thermal resilience.

TECHNICAL INFORMATION‌

Solderability‌: 90% terminal coverage (@260℃±5℃ for 160s) – validated for ‌Multilayer Chip Inductor‌ batches.

Thermal Shock‌: Inductance ±5%, Q ±30% after 100 cycles (-40℃/+85℃) – critical for ‌High Frequency Inductor‌ reliability.

Operating Temp‌: -25℃ to +85℃ (suits ‌multilayer ferrite chip inductor‌ and ‌inductor low value multilayer chip‌ use).

Storage Temp‌: -40℃ to +85℃ – ensures ‌Multilayer Chip Inductor‌ longevity.

Series in this family

Product Series	Inductance(µH)	IDC(mA)	Length (mm)	Width (mm)	Height (mm)
AIML0402	0.047-1.2	15-25	1.0	0.5	0.5
AIML0603	0.047-22	1-50	1.6	0.8	0.8
AIML0603H	0.047-12	60-150	1.6	0.8	0.8
AIML0805	0.047-47	5-300	2.0	1.2	0.9-1.2
AIML0805H	0.047-22	50-350	2.0	1.2	0.9
AIML0805UH	0.047-15	100-1100	2.0	1.2	0.9
AIML1206	0.047-100	5-300	3.2	1.6	0.9-1.1
AIML1206H	0.047-27	50-450	3.2	1.6	0.9
AIML1206UH	1.0-18	100-1200	3.2	1.6	0.9
AIML1210	1.0-120	150-600	3.2	2.5	1.3
AIML1806	1.0-10	250-500	4.5	1.6	1.6
AIML1812	1.0-120	150-650	4.5	3.2	1.5

Ferrites is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Multilayer Chip Inductor AIML products.
