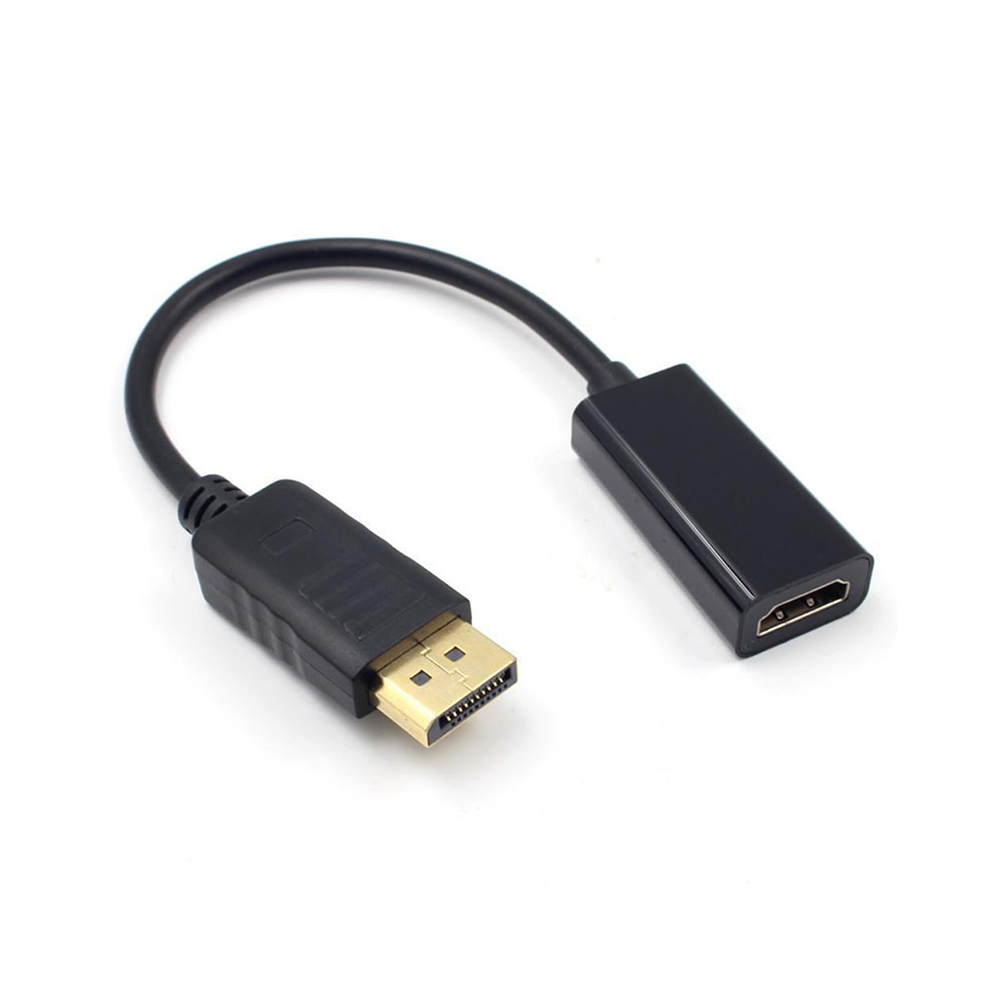

Dp Displayport Male To Hdmi Female Converter Adapter Cable For Pc

9 month ago

34 0 

2 year

Product details

Resolution (HDTV) DisplayPort Male To HDMI Female

Specification:
Color:	Black
Length:	25.5cm/10-inch customizable
Quantity:	customizable
MOQ:	1000 pcs
Signal Input/Output:	Input video signal: 5 volts probability period
Progressive Scanning:	(50&60) 480p, 576p, 720p, 1080p
Interlace Scanning:	(50&60) 480i, 576i, 1080i
Maximum single link Range:	1920x1080p
Output video HDMI-compatible:	1.3b
Input / Output Connector Input:	DisplayPort Male 20-pin
Output:	Type A female HDMI-compatible 19-pin
Video Amplifier Bandwidth:	2.25Gbps/225MHz
Vertical Frequency Range:	50/60Hz

Description:

DisplayPort adapter cable. This product is a DisplayPort to HDMI cable, suitable for graphics cards with a DisplayPort interface and TV, monitors, projectors, and other display devices with an HDMI-compatible interface. It can achieve synchronization transmission of video and audio. It can only achieve DisplayPort to HDMI-compatible one-way conversion in the product internal circuit design (DP output device PC, notebook, HDMI-compatible input devices such as monitors, TV, etc.).

Features:

Support DisplayPort v1.1, HDMI-compatible V1.3b; Support DisplayPort signal to HDMI-compatible signal conversion. 4 K DisplayPort cable

Supports 20-pin DisplayPort interface; Supports 8-bit and 10-bit color depth.

Support up to 10.8Gbps video bandwidth; Support 1Mbps two-way auxiliary channel; Support one-way, single-channel, four-wire connection.

Support HD Audio conversion; Support 1080P 15 meters long distance transmission; Support hot swap; Built-in conversion chip, no external power supply.

In strict accordance with the DisplayPort standard design, the port uses a lock design, and signal transmission is stable and reliable.
