Product details

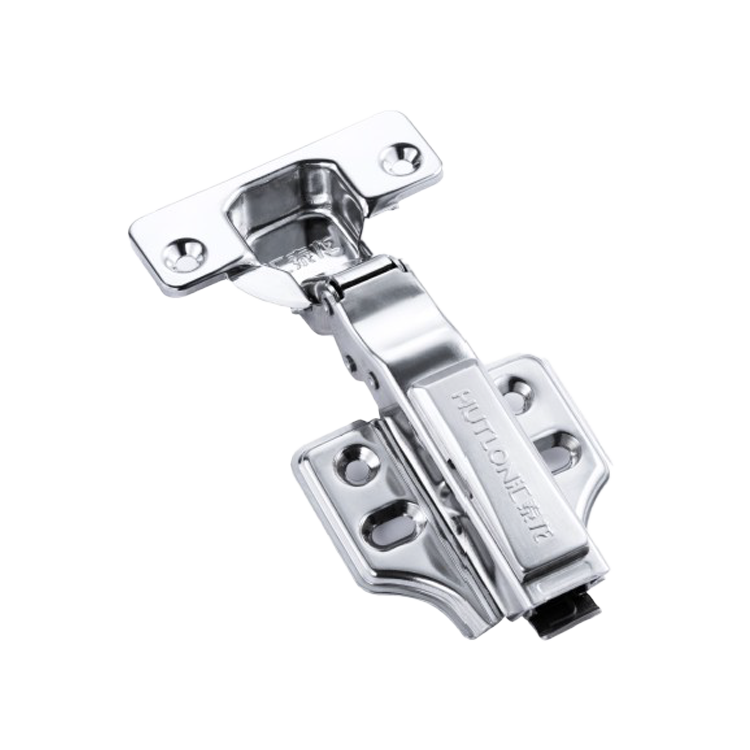

DZ - 331 - 01 Kitchen Cabinet Door Hinges

Specifications: Length 48mm, Width 35mm, Thickness 11.5mm, Opening and Closing Angle 105°, Suitable Door Thickness 16 - 20mm.

Load-bearing capacity: 5kg/2 pieces, suitable for lighter cabinet doors, such as small storage cabinets, children's room wardrobe doors, etc.

Material technology: Made of cold-rolled steel, it is durable and nickel-plated on the surface, presenting a bright texture, effectively preventing rust and corrosion, and extending the service life.

DZ - 331 - 03 Medium Bend Hinge

Specifications: Length 48mm, Width 35mm, Thickness 11.5mm, Opening and Closing Angle 105°, Suitable Door Thickness 16 - 20mm.

Load-bearing capacity: 5kg/2 pieces, commonly used for indoor cabinet doors of general weight, such as ordinary shoe cabinet doors, utility cabinet doors, etc.

Material technology: cold-rolled steel material with nickel plating technology not only ensures the strength of the hinge, but also gives it beautiful and durable characteristics.

DZ-331-06 straight arm hinge

Specifications: length 48mm, width 35mm, thickness 11.5mm, opening and closing angle 105°, suitable for door thickness 16-20mm.

Load-bearing capacity: 5kg/2 pieces, suitable for cabinet doors with more conventional opening and closing requirements, such as ordinary filing cabinets, small storage cabinets, etc.

Material technology: cold-rolled steel is used as the basic material, and nickel-plated surface treatment is used to make it have good mechanical properties and exquisite appearance.

DZ - 337CS - 01 Kitchen Cabinet Hinges

Specifications: 48mm long, 35mm wide, 11.5mm thick, 105° opening and closing angle, suitable for door thickness 16 - 25mm.

Load-bearing capacity: 8kg/2 pieces, can be used for heavier large wardrobe doors, shoe cabinet doors, etc.

Material technology: cold-rolled steel material, nickel-plated surface treatment, good rust resistance, high strength.

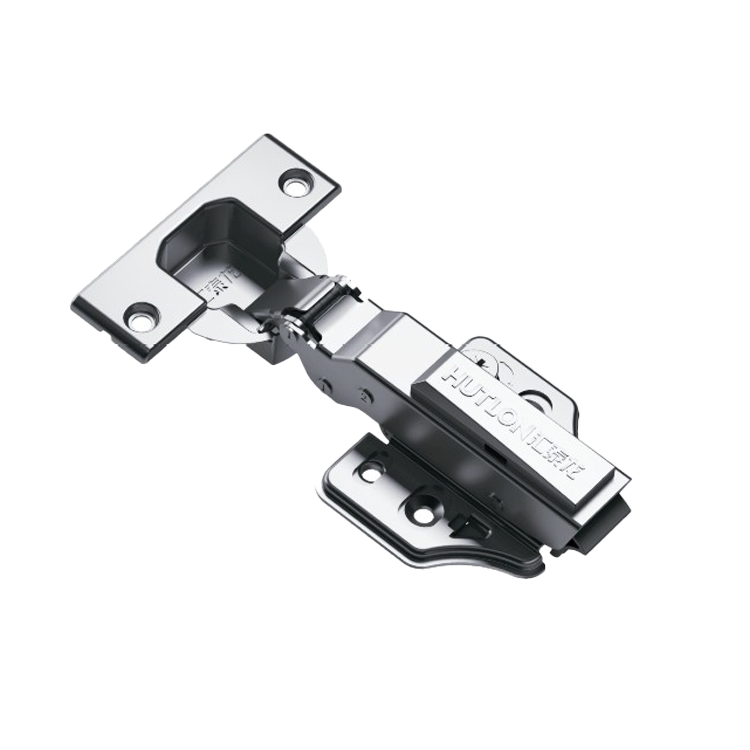

DZ - 337CS - 03 Middle Bend Hinge (Nickel-plated)

Specifications: 48mm long, 35mm wide, 11.5mm thick, 105° opening and closing angle, suitable for door thickness 16 - 25mm.

Load-bearing capacity: 8kg/2 pieces, suitable for indoor cabinet doors with high load-bearing requirements, such as heavy cabinet drawer doors.

Material technology: cold-rolled steel material, nickel-plated, enhanced durability and aesthetics.

DZ-337CS-06 straight arm hinge (nickel-plated)

Specifications: length 48mm, width 35mm, thickness 11.5mm, opening and closing angle 105°, suitable for door thickness 16-25mm.

Load-bearing capacity: 8kg/2 pieces, often used for the installation of heavy cabinet doors such as large storage cabinets.

Material technology: cold-rolled steel material, nickel-plated, strong and rust-proof.

DZ-337CS-01 large curved hinge (titanium model)

Specifications: length 48mm, width 35mm, thickness 11.5mm, opening and closing angle 105°, suitable for door thickness 16-25mm.

Load-bearing capacity: 8kg/2 pieces, suitable for cabinet doors that pursue unique appearance and have load-bearing requirements, such as high-end wardrobe doors.

Material technology: cold-rolled steel material, titanium surface treatment, not only improves the appearance, but also has good scratch and wear resistance.

DZ-337CS-03 center hinge (titanium model)

Specifications: length 48mm, width 35mm, thickness 11.5mm, opening and closing angle 105°, suitable for door thickness 16-25mm.

Load-bearing capacity: 8kg/2 pieces, can be used for cabinet doors that are both decorative and practical, such as luxury cabinet doors.

Material technology: cold-rolled steel material, titanium treatment, highlighting quality and style.

DZ - 337CS - 06 Straight Arm Hinge (Titanium Model)

Specifications: Length 48mm, Width 35mm, Thickness 11.5mm, Opening and Closing Angle 105°, Suitable for Door Thickness 16 - 25mm.

Load-bearing capacity: 8kg/2 pieces, suitable for large storage cabinet doors that focus on decorative effects, etc.

Material technology: Cold-rolled steel material, titanium surface treatment, both beautiful and practical.

DZ - 320K Silent Three-section Track

Material: Cold-rolled steel plate, high strength and good toughness.

Surface treatment: Electrophoretic black, stylish appearance, and good anti-rust and anti-corrosion properties.

Load-bearing capacity: Maximum load-bearing capacity of 35kg, can be used for drawers, such as large drawers in bedrooms, file drawers in study rooms, etc., to meet daily storage load-bearing needs.

Specification selection: 10", 12", 14", 16", 18", 20", 22" are available to fit drawers of different sizes.

DZ - 321K Buffered three-section track

Material: cold-rolled steel plate, ensuring the firmness and durability of the product.

Surface treatment: electrophoretic black, both beautiful and effective in protecting the track.

Load-bearing capacity: maximum load-bearing 25kg, suitable for general storage drawers, such as kitchen drawers, wardrobe drawers, etc., providing a buffering function when opening and closing to avoid collision noise.

Specification selection: 10", 12", 14", 16", 18", 20", 22" and other specifications are available.

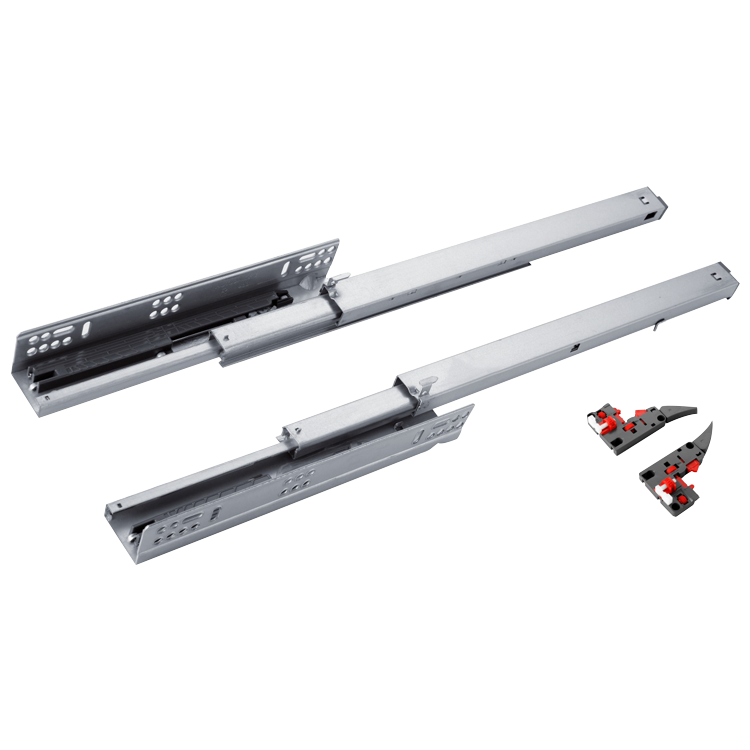

DZ - 351K Hidden Buffering Bottom Track

Material: Galvanized sheet, excellent anti-rust performance.

Surface treatment: White, simple and elegant, can be matched with various home styles.

Load-bearing capacity: Maximum load-bearing 25kg, suitable for drawers with high aesthetic requirements, such as drawers of high-end furniture. The hidden design makes the drawer look simpler, and the buffering function makes the opening and closing softer and quieter.

Specification selection: Covering 10", 12", 14", 16", 18", 20", 22" and other specifications, suitable for different size requirements.
