PWM controller motor dc 12v use waterproof 50A 12/24V automatic switch solar controller mppt solar charge controller1
3 year ago
Below is our major and competitive products:
1.Solar inverter (hybrid inverter )
2.Car inverter
3.Pure sine wave inverter
4.Modified sine wave inverter
5.Off grid inverter
6. Grid tie inverter
7.PWM solar charge controller .
8.MPPT solar charge controller

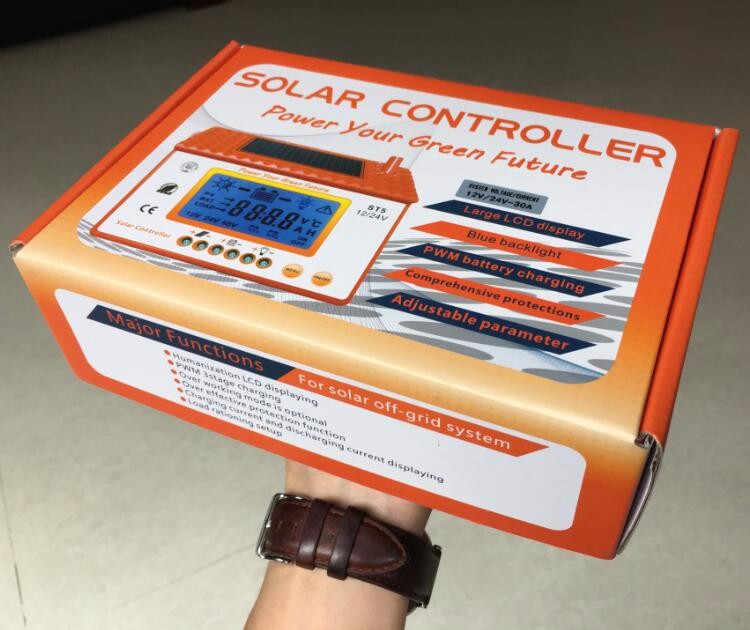

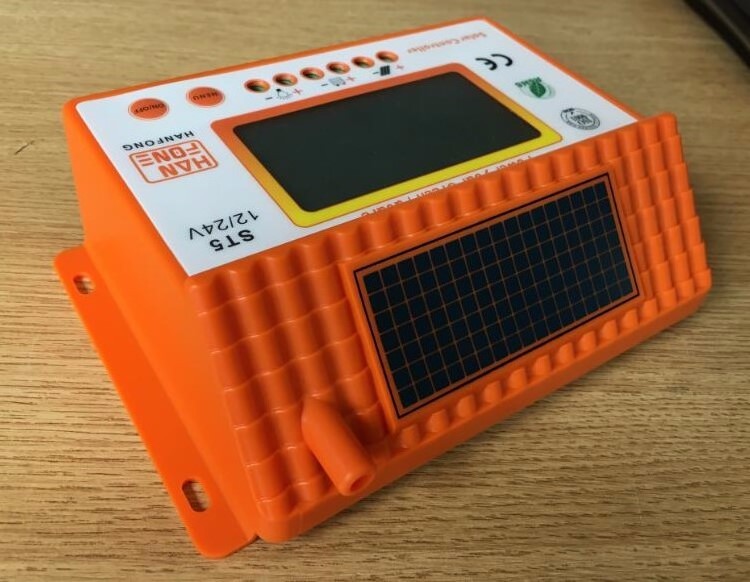

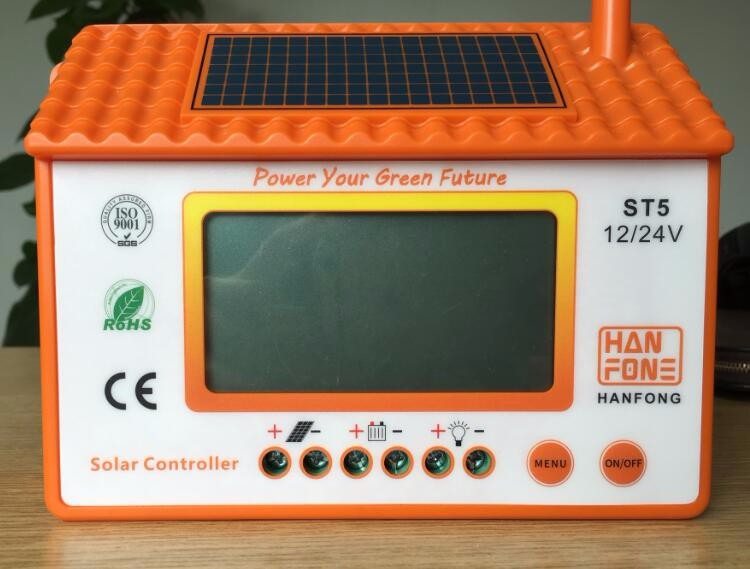

New solar charger controller With fashion design and blue backlight, convenient for operate in Dark condition
| ST5 Series Specification | ||||||
|
Model Parameters |
10A | 20A | 30A | 40A | 50A | 60A |
| Rated voltage | 12V/24V Automatic voltage recognition | |||||
| Max charge current | 10A | 20A | 30A | 40A | 50A | 60A |
| Max discharge current | 10A | 20A | 30A | 40A | 50A | 60A |
| Full charge cut | 16.5V/33V | |||||
| Low voltage cut | 11V/22V | |||||
| Low voltage restore | 12.6V/25.2V | |||||
| Temperature compensation | -3mv/℃/cell | |||||
| Static current | ≤45mA | |||||
| Voltage drop | <200mv | <200mv | <220mv | <240mv | <270mv | <295mv |
| Wire area max | 4mm2 | 6mm2 | 10mm2 | |||
| Weight | 0.26KG | 0.62KG | 0.70KG | |||
| controller size | 155.25*106.53*43.36mm | 194.10*133.67*60.18mm | 194.10*133.67*60.18mm | |||
| packing size | 173.6*117.1*48.2mm | 213.2*145*64.8mm | 213.2*145*64.8mm | |||
| Packing quantity | 40PCS | 24PCS | 24PCS | |||
| Carton size | 520*370*260mm | 450*420*310mm | 450*420*310mm | |||
| Gross weight | 14.43KG | 18.27KG | 20.67KG | |||
