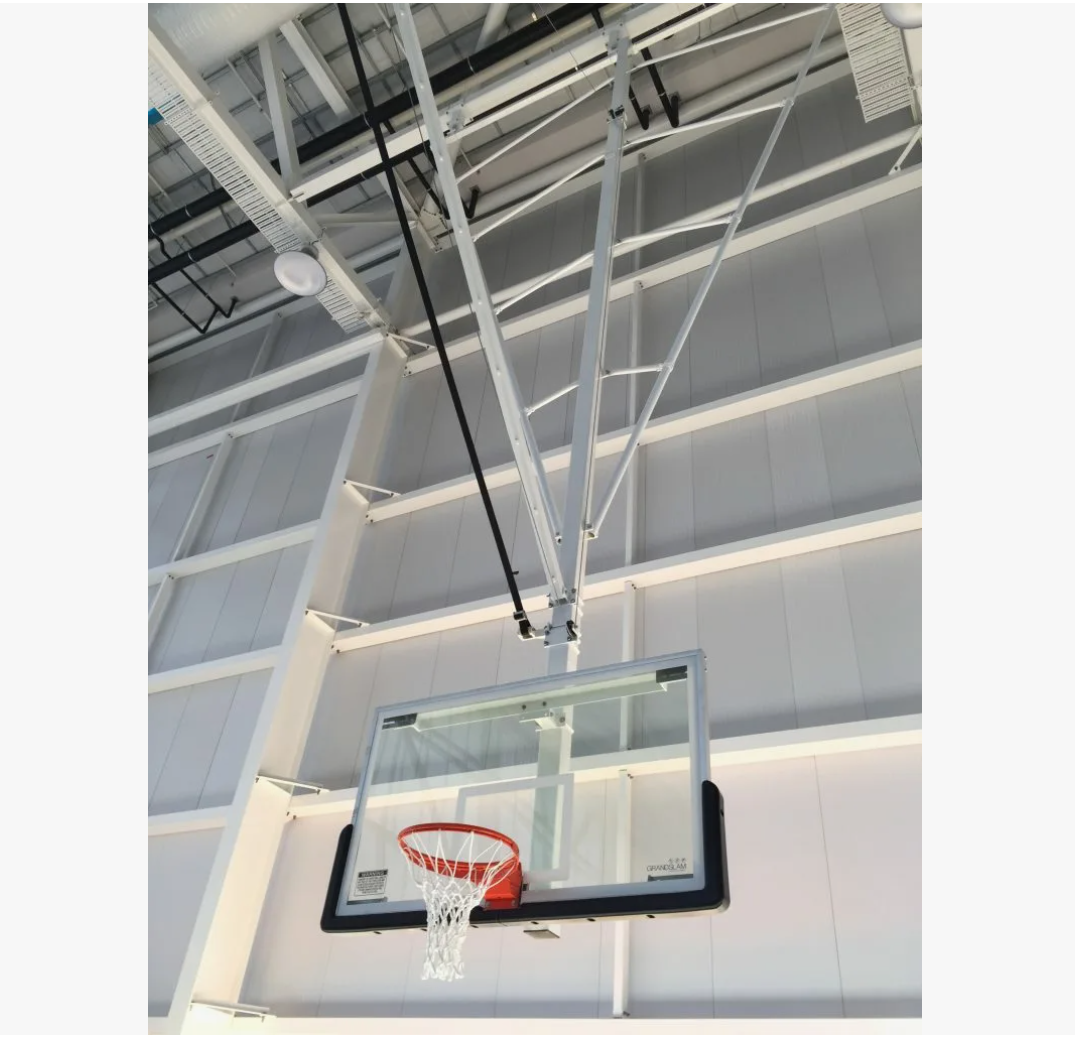

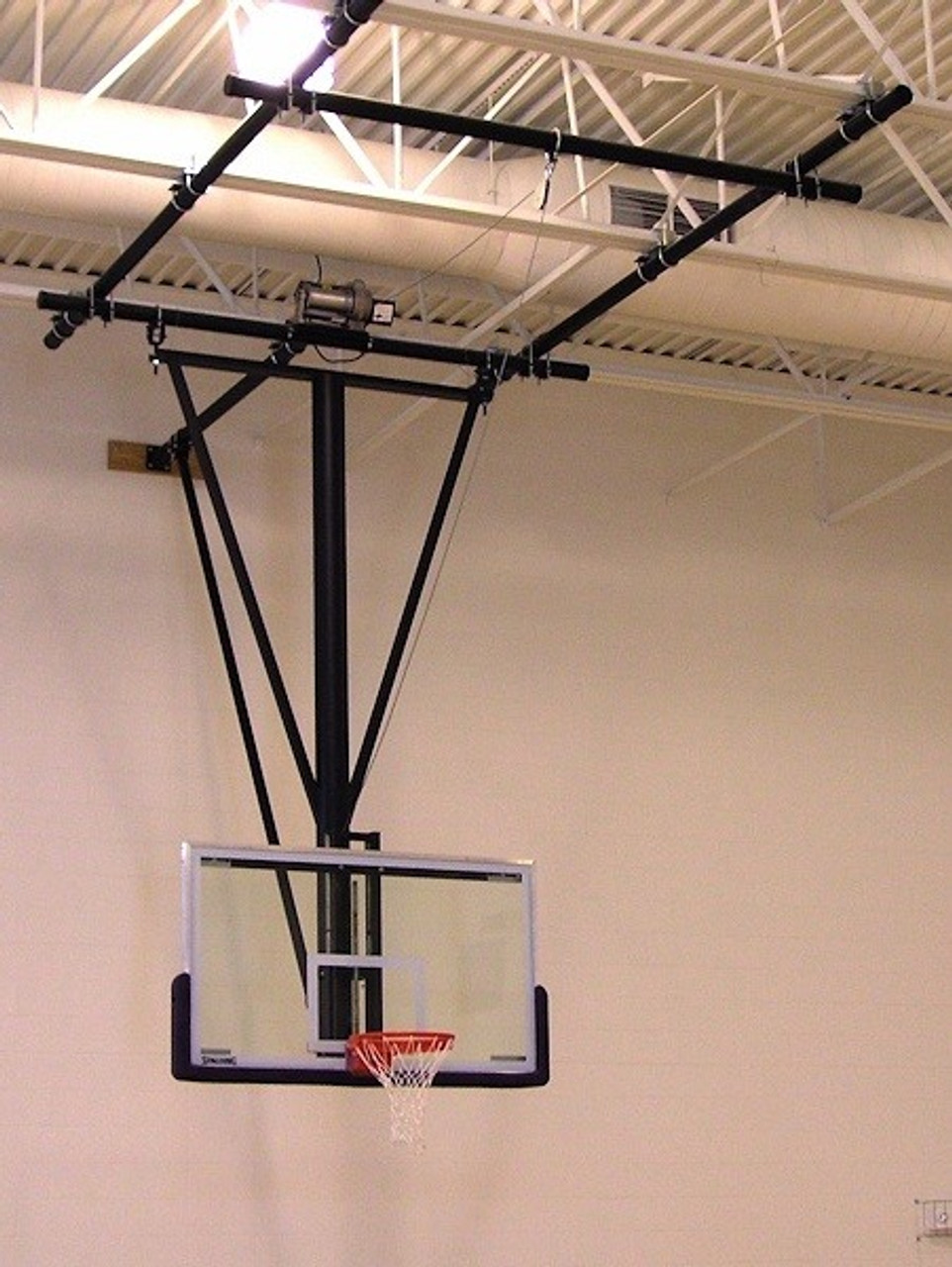

Product series: Electric Hanging Wall Adjustable Basketball Stand
Product model: YH001 (electric suspended basketball stand) / YH002 (fixed suspended basketball stand)
Material: Made of high-quality steel of national standard
Structure: main beam + balance bearing rod + backboard + basket + electric winch folding system (optional)
Functionality: fully automatic control, electric winch folding basketball stand, and provide automatic locking belt safety protection device.
Applicable scenarios: mainly used in indoor basketball courts.
Fixed method: ceiling suspended
| Modael | Data |
| YH001 | 1. Use a two-phase 2kw 9-pole motor to drive a large-ratio worm reducer to realize the electric drive system, which can automatically lift or unfold; 2. The unique and specially designed automatic safety lock belt device ensures the absolute safety of the basketball rack system during use. The automatic safety lock belt can automatically lock the basketball rack in unexpected situations. 3. Performance parameters of electric winch: Weight 30.84kg, Overall dimensions 988mm (length) * 450mm (width) * 267mm (height) Rated voltage: 220V, Rated current: 4A, Frequency: 50Hz, Power: Intermittent working system 10min, Maximum load: 453.6kg, Stroke: 11m, Maximum operating speed: 2.7432m/min (reducer output speed 8r/min)4. Parameters of automatic safety lock belt device: Weight 8.62kg, Maximum breaking force: 23.43KN, Stroke: 15m, Maximum operating speed: 25.6m/min 5. Main beam: 120mm*120mm Q235 high-quality square tube with a wall thickness of 3mm and 100mm*48mm*5mm thick No. 10 channel steel are fully welded into a triangular main bearing frame; the structure is firm and the performance is reliable. 6. Connectors: 16mm diameter U-shaped card wire (with double mother) and 8mm wall thickness flange are selected to connect the balanced load-bearing rod. The main beam and the balanced load-bearing rod are connected by M24 live bolts, and the pin shaft is connected with a locking pin, which is easy to maintain and replace the worn parts; the structure is reasonable and the strength is reliable. 7. Backboard: The official size is 1800mm*1050mm*12mm thick high-strength safety fiberglass backboard, and the external 2mm thick high-strength aluminum alloy frame is used. The entire backboard has a beautiful appearance, simple and firm structure. 8. Basket: The basket ring is rolled from 20mm round steel, with a reinforcing plate structure inside; it has high strength and strong bearing capacity, and meets the international first-level competition standards. 9. Surface treatment: After pickling, phosphating and other primary treatments, the surface of all steel parts is finally treated by electrostatic epoxy powder spraying on the automatic spraying line. The coating thickness is 70-80um, the hardness is 3H+, and the coating film has no change after the 36-hour salt spray test of GB1771 91. The single-sided corrosion at the grid is less than 2mm. It has the advantages of acid and alkali resistance, moisture and heat resistance, anti-aging, and beautiful appearance. The product coating formula is green and environmentally friendly to avoid harming the health of users. 11. Product working principle: The electric suspended basketball stand uses an electric winch to fold the basketball stand to achieve lifting and lowering, and provides a safety protection device with automatic locking belt. Fully automatic control, it completes the unfolding and folding action in about 1 minute. |
We are manufacturer with our own facilities and warehouse.
2. Can I customize my court size, color and logo?
Yes! We can do court design, color and logo customize as you wish.
3. Can you draw the court lines for me?
Yes! Auto lines marking service at factory is available for customers.
4. Can you provide warranty?
Yes! We provide 5 years' quality warranty and 10 years' backup support.
5. Can I get your samples?
Yes! You just pay for the express freight for small samples.
6. Are your products made of environmental materials?
All of our products are eco-friendly.
7. How long can I receive samples?
We usually is international express delivery, usually take about 3-4 working days.
T/T, L/C, Trade Assurance, or others.
9. What are the method of transportation?
By sea, by air, by express, by train, by truck and so on. We will choose the best method based on your country location.
