1535nm Long Infrared Sensor Distance Range Detection

1535nm Long Infrared Sensor Distance Detection Range

The ETYS-30X infrared range sensor is a new long-range infrared sensor which can measure up to 3000m. With 1535nm erbuim-glass laser design, it has the characteristics of compact volume, strong ranging ability and low power consumption. The range of ir sensor has been widely used in aerospace, unmanned aerial vehicles, thermal imaging, forest protection, industrial and environmental monitoring and other applications. For more information, please contact us.

Technical parameters

Operating wavelength: 1535nm ±10nm

 Eye-Safe:  Class 1 (IEC 60825-1)

Receiving Aperture: φ19mm

Ranging range: 30-3000m

Range Performance Index: 3000m range

 ≥3000m 2.3×2.3m NATO target, Reflectivity: 30 %, observer visibility 8 km

 ≥2000m 0.5×1.7m Person, Reflectivity: 10 %, observer visibility 8 km

 ≥1000m 0.2x0.3m UAV, Reflectivity: 10 %, observer visibility 8 km

Humidity: ≤ 60%

Ranging accuracy: ±1m

Accuracy rate: ≥98%

Divergence angle； ≤0.5mrad

Ranging frequency： 1~10hz

Electrical Interface

Communication interface RS422/TTL communication;

Baud rate: 115200;

Data bits: 8;

Start bit: 1;

Stop bit: 1;

Parity bit: none;

Physical characteristics
Dimensions: 48mm (L) ×36mm (W) ×26mm (H)
Weight: ≤57g

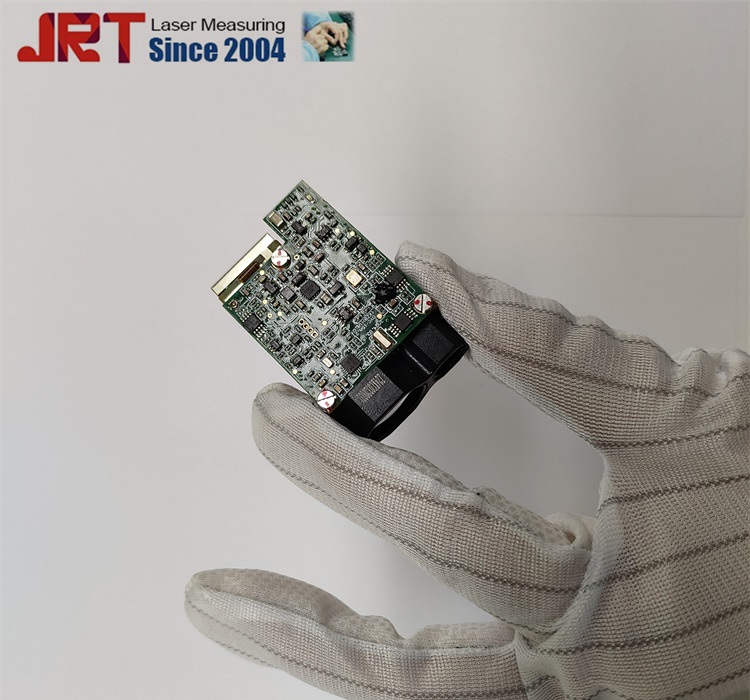

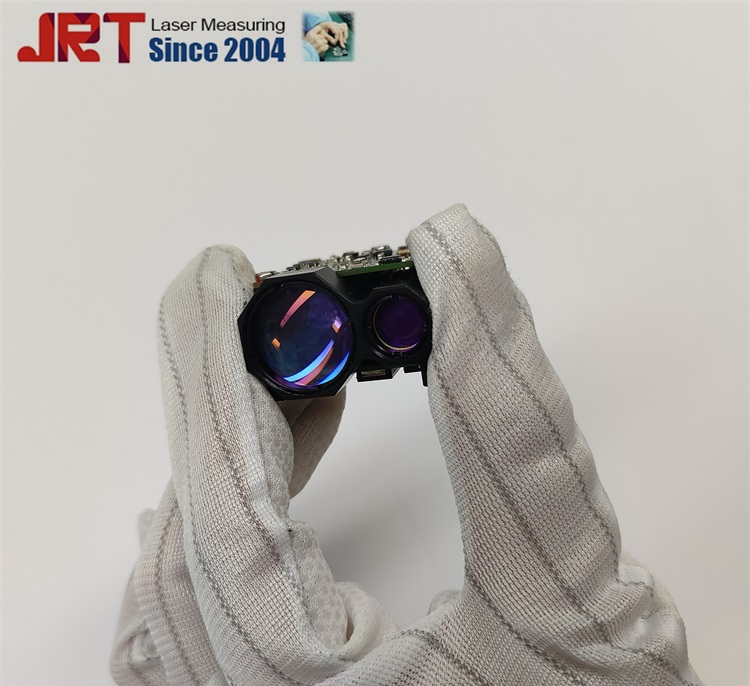

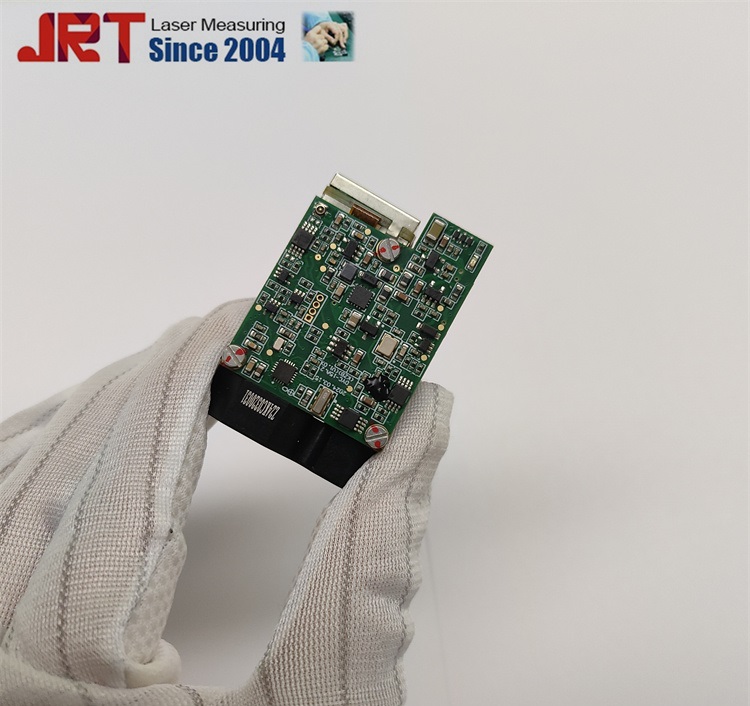

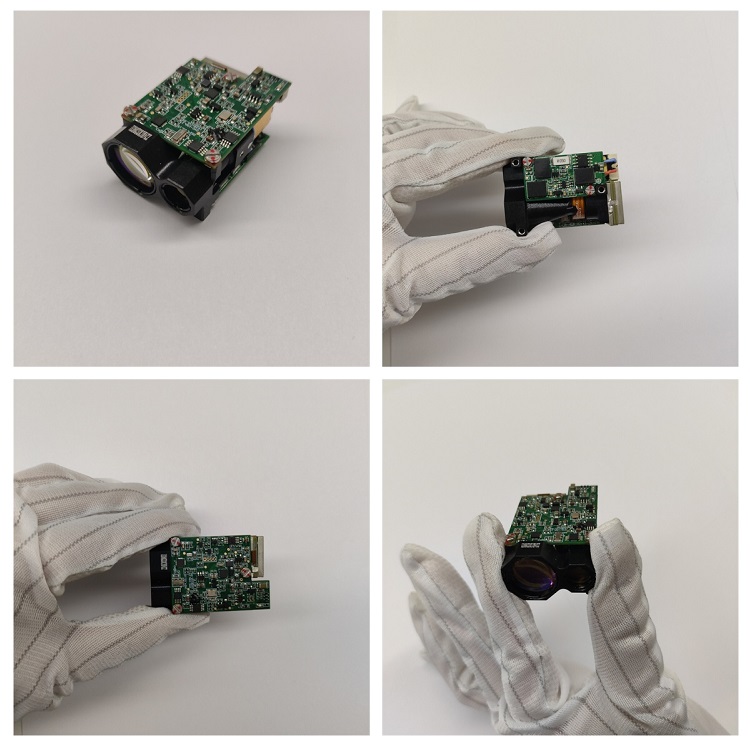

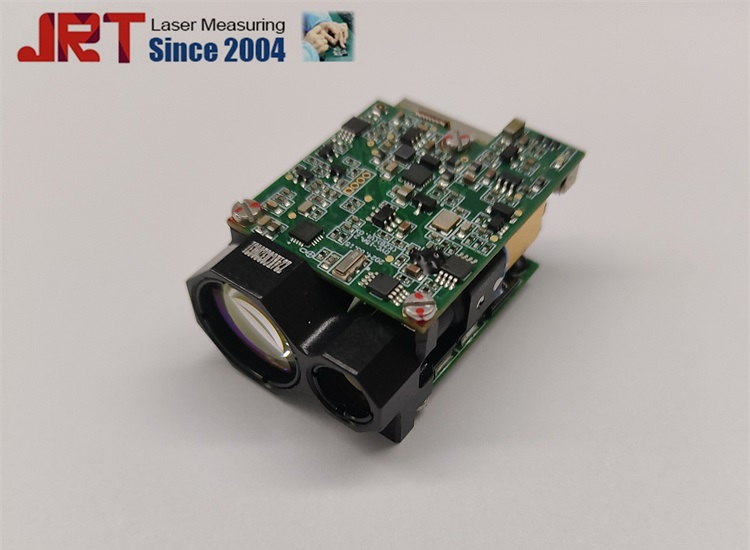

More Detailed Product pictures

1535nm long range infrared sensor is a preferred choice in many high-precision and monitoring applications. Here are some key advantages:

> 1. Eye Safety laser:

The 1535nm wavelength within the near-infrared (NIR) range, it is less hazardous to human eyes compared to shorter wavelengths. This makes it safer for use in environments where there is a risk of accidental exposure to the laser beam.

> 2. Strong anti-interference ability:

The long detection range sensor has excellent atmospheric penetration and strong measurement ability, which can measure distances as far as 3000 meters.

Applications

This Industrial Laser Distance Sensor can be widely used in agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.
