ZH-25 track bed ramming machine
4 week ago
Railway Equipment Track Bed Ramming Machine
PRODUCT FEATURES

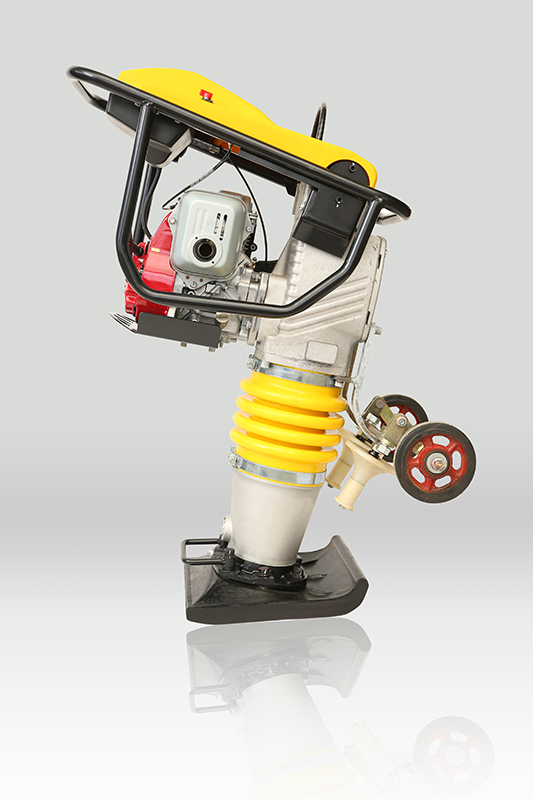

ZH-25 track bed ramming machine is a special track mainenance machine for ramming and shaping the middle of the track and turnout sleepers, the ends of. the sleepers and the ballast on. the track slope. A single-cylinder, air-cooled, four-stoke Honda GX100 gasoline engine is. used as power. In order to faclite transportation, ground runming wheels and rail runing wheels are istallle in the middie of the machine body. In order to alow the machine to perform ramming operations in any direction between sleepers, the ramming plate is designed to be. round. Ithas the caracteritics of reasonable stucture; simple operatin, easy movement, strong ramming strength, and high work ficiency.
TECHNICAL DATA
Engine
HONDA GX100 petrol engine
Power
2.2 L
Impact frequency
600 times. min
RPM
4000 r/min
Jump height
65mm
Impact force
25.7 kN
Travel speed on the ballast
17 m/min
Tamping speed on the railway line
≥245 seps/group/hour
Dimensions
1000x770x380 mm
Weight
79 kg
