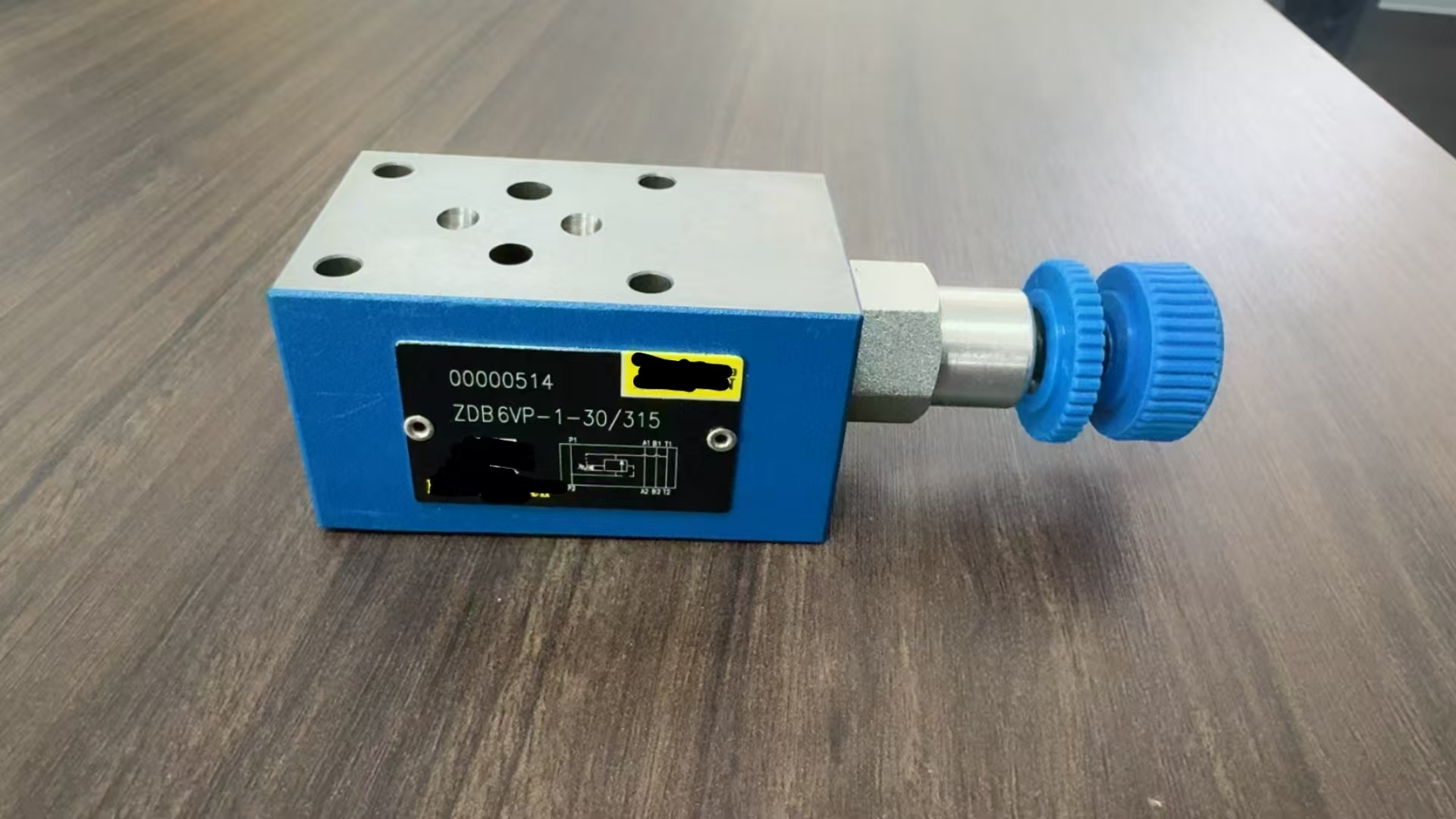

6-way Stackable Relief Valve

4 week ago

1 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

3 year

Product details

the "Hydraulic 6-way Stackable Relief Valve":

Technical Parameters

1. Pressure Ratings

• Nominal Pressure:70 bar to 420 bar (common setting values), with some models supporting higher pressures (e.g., SD25 series rated at 315 bar, approx. 31.5 MPa).

• Adjustment Range:1.7 bar to 315 bar (depending on control spring selection), supporting multi-stage pressure regulation.

2. Flow Rate and Response Time

• Nominal Flow Rate:240 L/min to 800 L/min (depending on valve port size and number of sections).

• Response Time:10 ms (fast response design suitable for dynamic systems).

3. Temperature Range

• Medium Temperature:-40℃ to +80℃ (standard), with high-temperature customization available (e.g., ceramic seals).

4. Structure and Dimensions

• Modular Design:Supports stacking of 1-12 sections, with each section height approx. 41 mm (SD25 series reference), saving installation space.

• Connection Types:Internal thread (e.g., NPT), flange (customizable), supporting hydraulic and pneumatic integration.

5. Material Selection

• Valve Body:Cast iron (standard), stainless steel (corrosion-resistant), alloy steel (high-pressure applications).

• Seals:Hard seals (ceramic/metal, wear-resistant), soft seals (PTFE, zero-leakage).
