PC Komatsu KMF90 Motor (Vibratory Hammer) Assembly/Spare Parts/Cylinder Block/Plunger/Return Plate/Drive Shaft

4 week ago

1 0 

3 year

Product details

REXROTH	CAT	MESSORI	TADANO	and other
REXROTH-UCHIDA	HITACHI	JIC	PARKER
SAUER DANFOSS	KOMATSU	KOBELCO/KATO	YUKEN
EATON-VICKERS	LINDE	JEIL	HARVESTER
KAWASAKI	KYB	TEIJIN	Daikin
KAWASAKI SWING MOTOR	NACHI	TOKIWA	ITALY SAM
LIEBHERR	TOSHIBA	HAWE	OILGEAR

I. Product Overview

The PC Komatsu KMF90 Motor (Vibratory Hammer) is a high-performance hydraulic vibratory hammer designed for pile foundation construction in civil engineering. It is driven by an electric motor, which rotates eccentric blocks at high speed to generate excitation forces for driving piles into the ground. The hammer is composed of a vibration absorber, a vibrator, and an electrical device, offering strong pile-driving capabilities and adaptability.

II. Technical Specifications

• Drive System: Electric motor-driven, utilizing the rotation of eccentric blocks to produce excitation forces.

• Applications: Suitable for concrete cast-in-place piles, steel sheet piles, and other construction tasks.

• Structure: Comprises a vibration absorber, a vibrator, and an electrical device, ensuring efficient and stable operation.

III. Application Fields

The vibratory hammer is widely used in pile foundation construction for highways, bridges, airports, buildings, and other infrastructure projects. Its high-efficiency and stable performance support long-term, high-load operations, making it particularly suitable for complex conditions such as deep foundation pits and large cylindrical piles.

IV. Key Components and Features

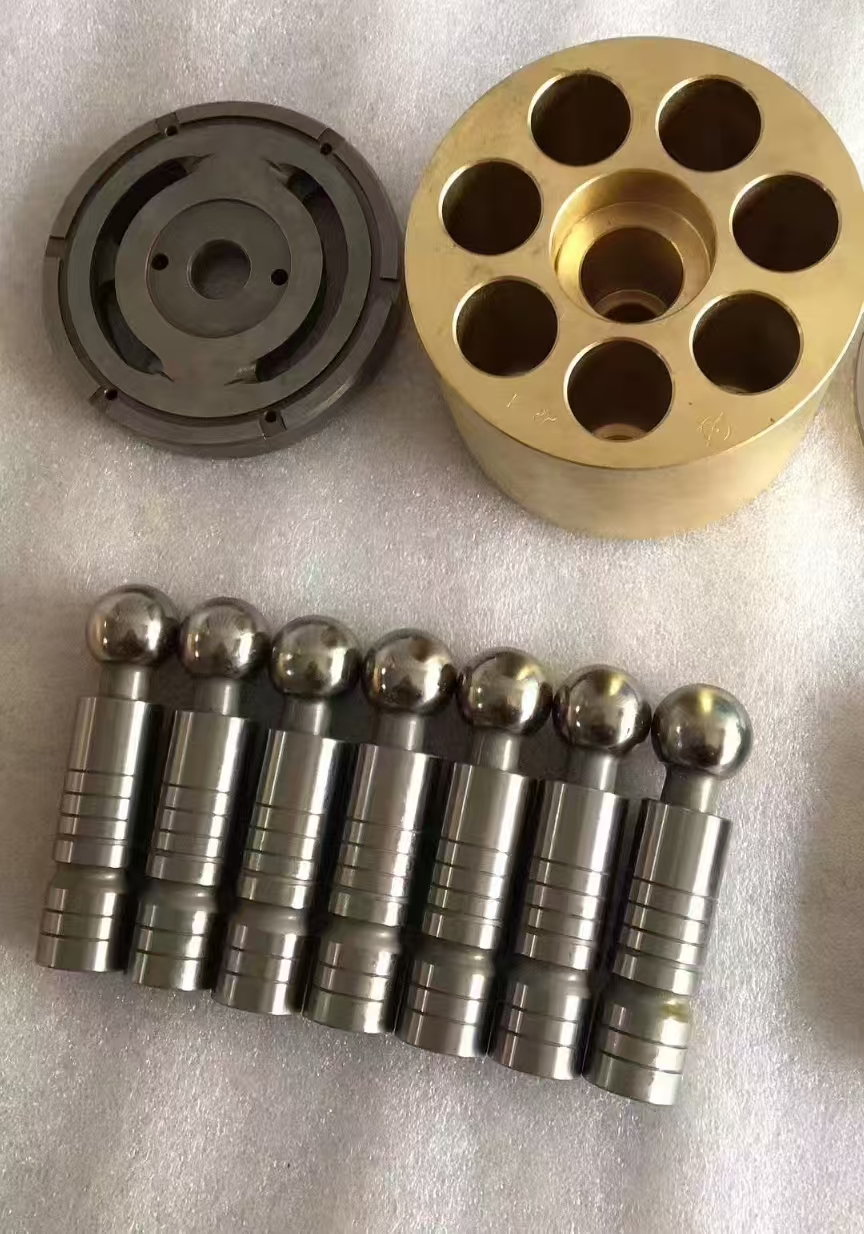

1. Cylinder Block

• Function: Houses and seals the cylinders, ensuring the normal operation of the engine.

• Material: Typically made of aluminum alloy or cast iron, offering good thermal conductivity and strength.

• Design: Varies according to engine type and application, with different sizes and shapes for V-type and inline engines.

2. Plunger

• Function: A reciprocating component in hydraulic systems, used to deliver liquids or gases through its back-and-forth motion.

• Application: Commonly found in plunger pumps, where it plays a core role in fluid transportation.

3. Return Plate

• Function: Facilitates the normal operation of the transmission system.

4. Drive Shaft

• Function: A rigid shaft used to transmit power from the engine to the drive wheels or driven wheels.

• Design: Usually made of steel tube, with one or more universal joints to allow angular movement during power transmission.
