Product details

A new controller developed by our company,This controller is in the form of Pwm.To control this HAWE electro-proportional valve.

This remote control is wired.This line follows our current routine practice,there are styles in total:fifteen,twenty and twenty-five meters.We accept customization.The length of this line,detemined by the customer,the client decides how long.Then we will do corresponding tests on the bench according to customer requirements to measure power losser and so on.

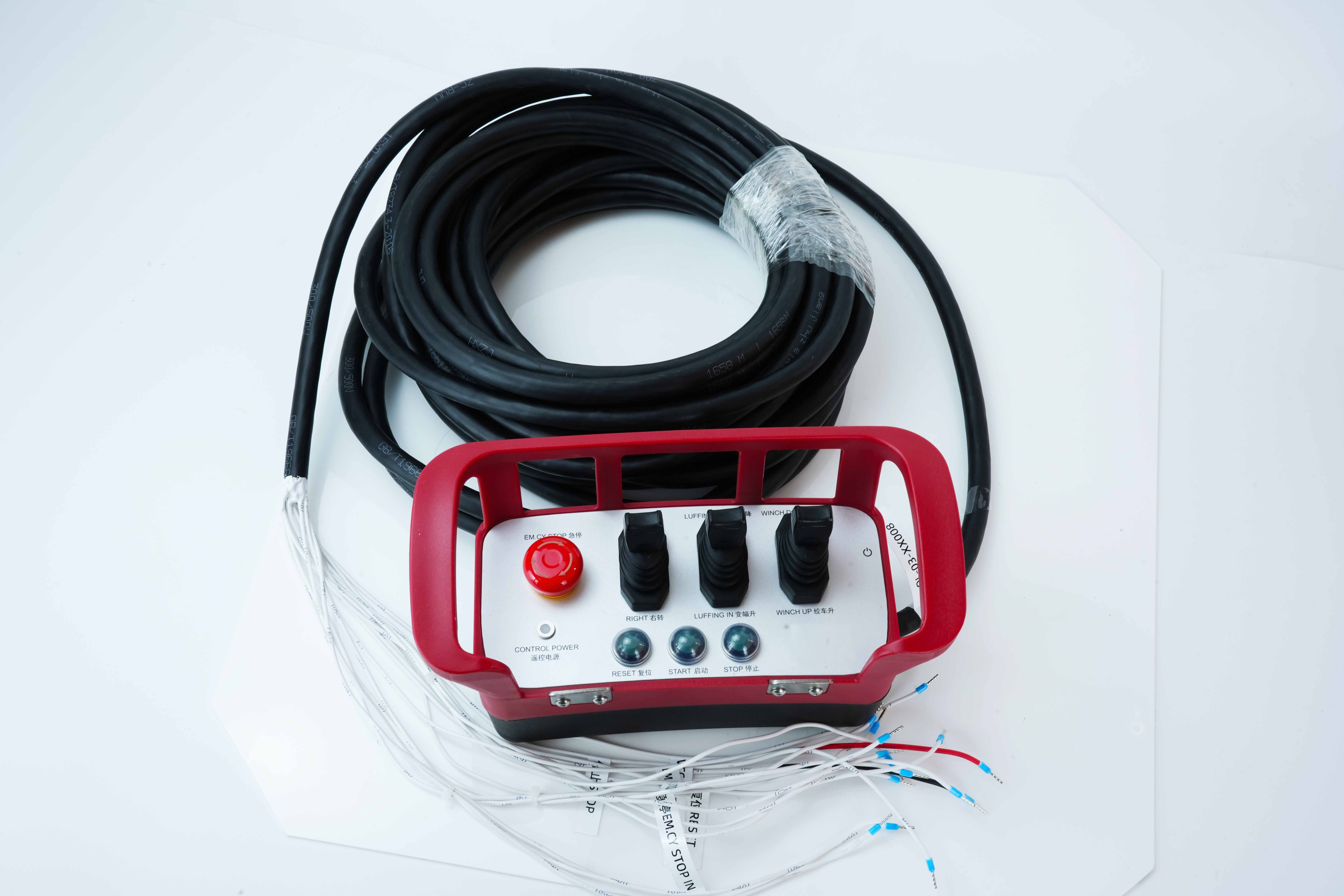

The panel of our remote control ,there have three joysticks on it,coresponding manipulation,three valve rockers on the valve.And then when we operate this up and down, Our valve will also be such an action.

Usually We will provide connectors for these wires to customers.These connectors,we will do a good job of English labelsto convenient for customers to connect.

These connectors are connected to the electrical control box on the customer's equipment,then connect the wire of the electrician box to our valve.Connect to the electromagnet on the valve.This product sales volume in China is very good at present.The order has accumulated more than 100sets.

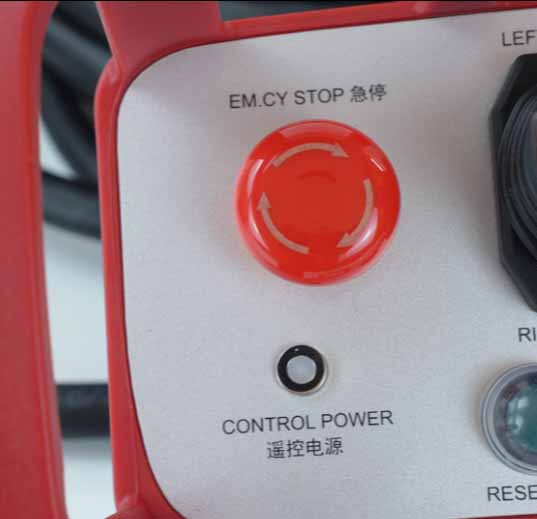

Our remote control is customized,These open and closed functions are detemined by the customer.There will also be an emergency stop button here,Here is the display light of the remote control power supply.

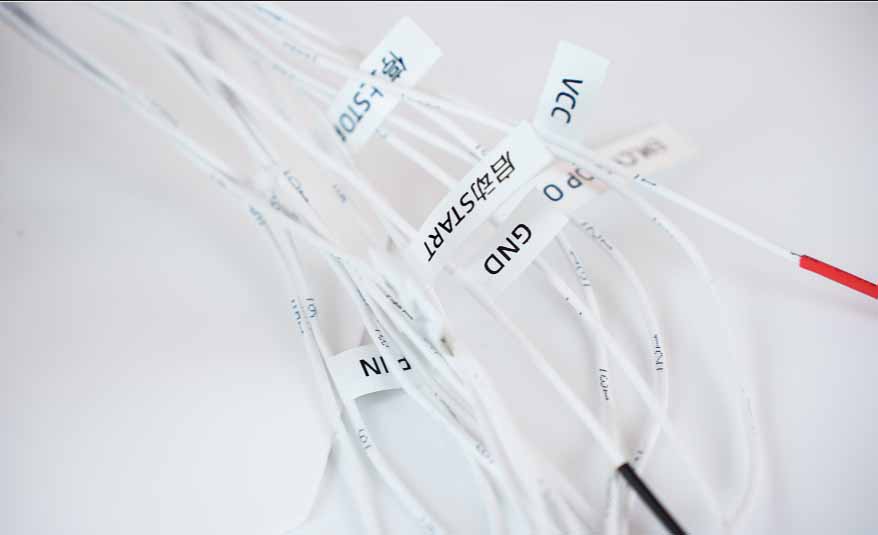

Here's a thread ,This wire is based on the function to detemine how many thin wires there are.These wires go into an electrical control box on the customer's device.When we leave the factory,Each follow-up cable has a logo in Chinese and English,Convenient for customers to connect on site.

This product don't have battery,so during transportation does not involve the transportation of this dangerous goods. The current one,We design for marine cranes, You can see it has a left turn right turn,Amplitude down Amplitude up,Winch lift winch dropthese three actions.Of course yeah,We can also add more joysticks on it.Such as amplitude first level b second level b or the like.You can line up all the way.Usually ,We will do it sixteen joystick or more,This is detemined according to customer needs.For example we can make 16 or 8 for this pole. Then we make a logical pattem in it,The joystick of each remote control can operate the joystick of two valve.
