Raw material handling equipment
3 month ago
The heavy chain plate feeder is mainly used in the raw material conveying link of the brick factory, which is suitable for the production of clay brick, folio brick, coal gangue brick and other brick types.
Equipment standard configuration：
|
l The equipment is equipped with motor, frame, pulley, belt and safety cover |
|
l Mud stick |
|
l Frequency conversion device |
|
l Operation and maintenance manual, installation drawing, foundation drawing |
Structural characteristics of the whole machine：
l The hopper for receiving the material is made of welded steel plates.
l The steel frame structure of the equipment is very strong and firm.
l The chain plate is made of steel plate, and the curve radius of each plate is consistent with the driving head. It can effectively ensure that the scraper can effectively scrape off the material stuck on the chain plate. The UPN steel plate welded under the chain plate guarantees strong strength.
l The chain plate is supported by a set of guide wheels: the side guide wheel and the middle guide wheel ensure a long service life of the chain plate under load condition.
l side slide wheel and intermediate pulley are installed under the chain plate.
l The chain guide wheel is protected by replaceable wear-resistant steel.
l The chain of the chain plate is driven by the sprocket.
l The dowels and rollers are heat treated.
l The traction shaft is equipped with double row roller bearings to ensure the function of the shaft
l The idler shaft is equipped with double row roller bearings to ensure the function of the shaft
l Adjust the bolts on the idler support to increase the tensioning progress.
l hard toothed planetary reducer with pulley.
l A gate can be adjusted to control the flow of the material to control the uniformity of the feed.
l The equipment is driven by an electric motor through a belt drive.
l The speed of the chain plate is adjusted by frequency conversion.
l The mud ejector rod is installed at the discharge port.
l The equipment is equipped with a motor.
l Central lubrication device
l The plate feeder is equipped with a switch for controlling the rotation of the chain plate.

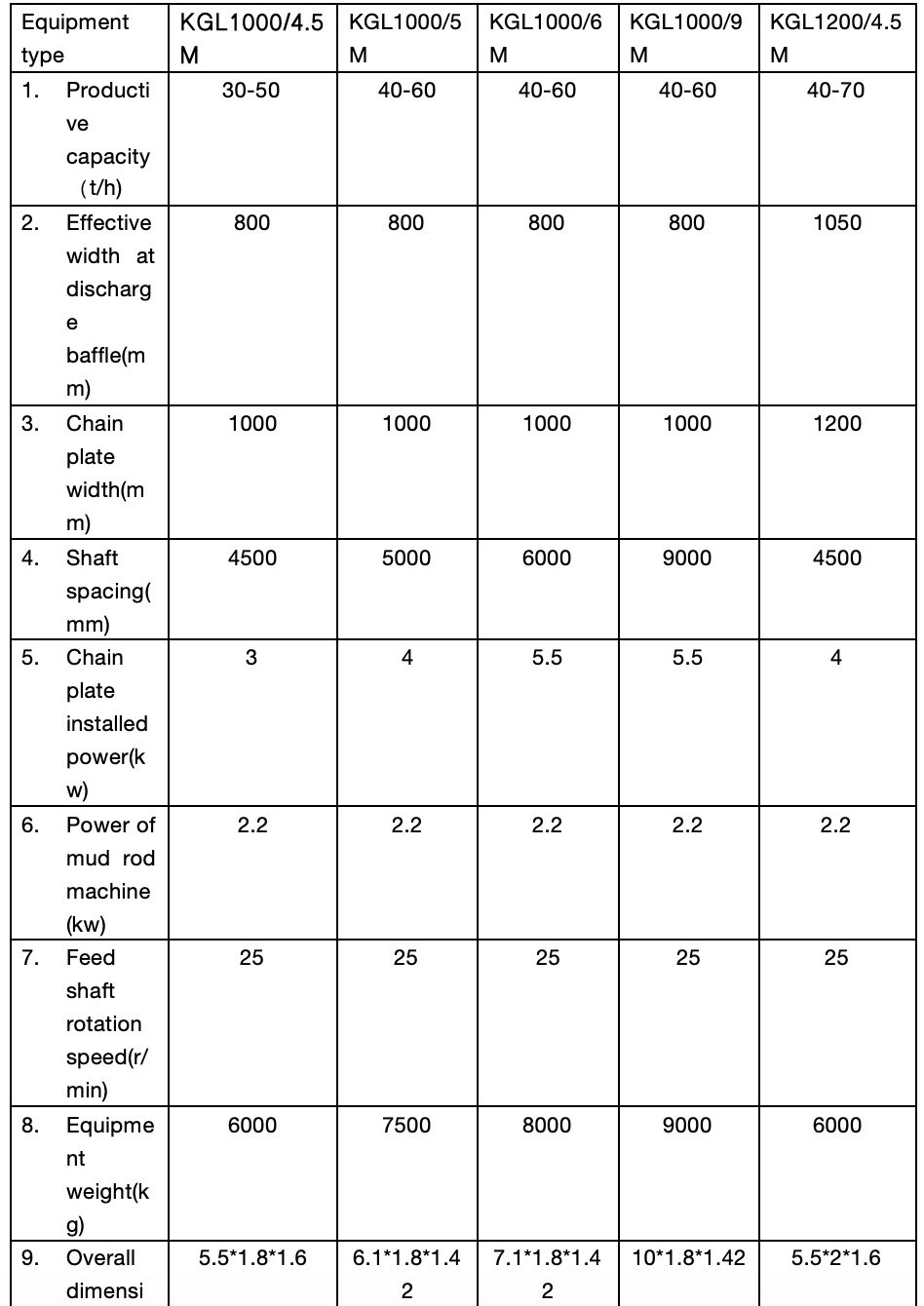

Equipment parameter：
