Laser cutting Φ2.4mm 304 endoscope bending section

3 month ago

33 0 

Changzhou Bluebird Micro Precision Technology Co., Ltd

2 year

Product details

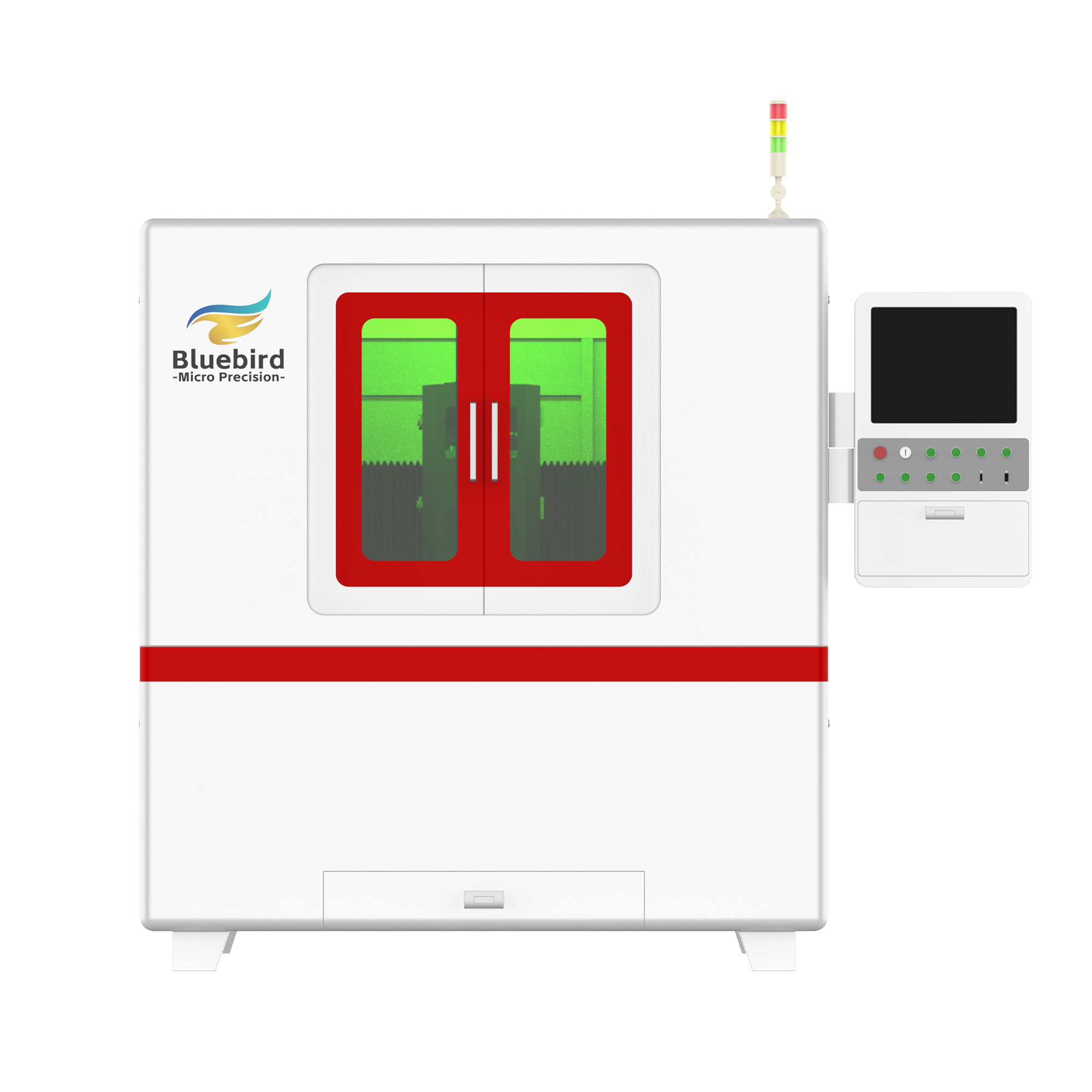

Precision fiber laser plane cutting machine is mainly used for laser cutting and drilling of various metal and non-metal plates with flat and regular surfaces. laser cutting machine output high energy density laser beam through the laser, directly acting on the surface of the workpiece, the use of numerical control system precisely control the movement of the laser beam, to achieve fast, accurate cutting and drilling. Precision fiber laser plate cutting machine is suitable for processing small diameter, thin wall and complex structure and other parts with high processing accuracy and quality requirements.

Fiber laser plane cutting machine features

With laser cutting, drilling, grooving, marking and other fine processing capabilities；

The cutting quality is good, the cutting surface is smooth without burr, and the processing precision is high；

Can process Ni-Ti, SS, Li, Mg, Al, Cu, Fe, platinum-iridium, ceramics and other materials；

The fine laser cutting head with long focal length and flat nose is equipped to meet the precise processing of different materials；

Provide machine vision positioning, receiving and closed blanking, automatic loading and unloading system, dynamic processing monitoring and other optional functions；

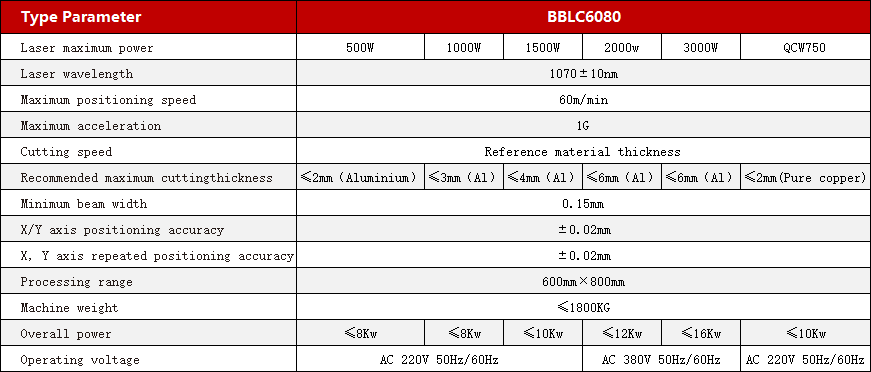

Fiber laser plane cutting machine technical parameters

Fiber laser plane cutting machine application

Fiber laser cutting machine is widely used in stainless steel, Cu, Mg, Zn, Al, molybdenum, platinum-iridium, tungsten steel, silicon steel, magnet, magnesium aluminum alloy, cobalt chromium alloy, nickel-titanium alloy, hard alloy steel, ceramics, sapphire and other metal, non-metallic sheet. Such as notebook shell, keyboard hole, mobile phone back cover, structural parts, anode aluminum cover, horn net, watch ring, PCB, COF, FPC, brass nozzles, magnetic sheets, electromagnetic sheets, endoscope clips, gold brain fixed pieces and other types of precision applications of laser processing.

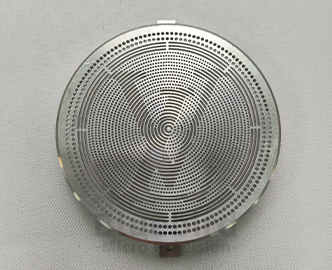

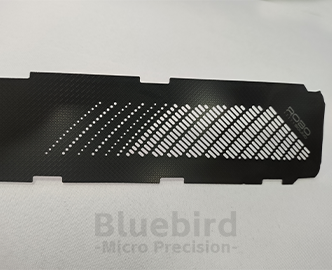

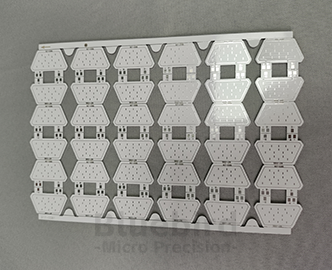

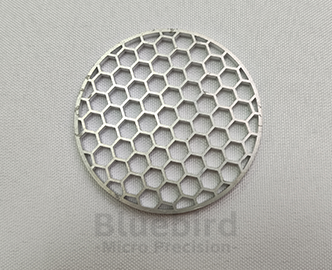

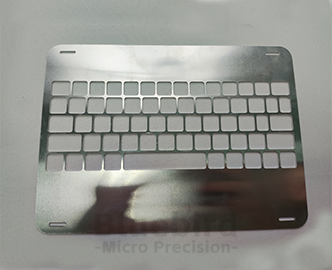

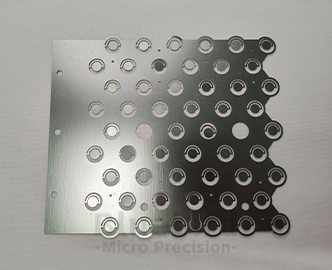

Laser cutting sample display：
