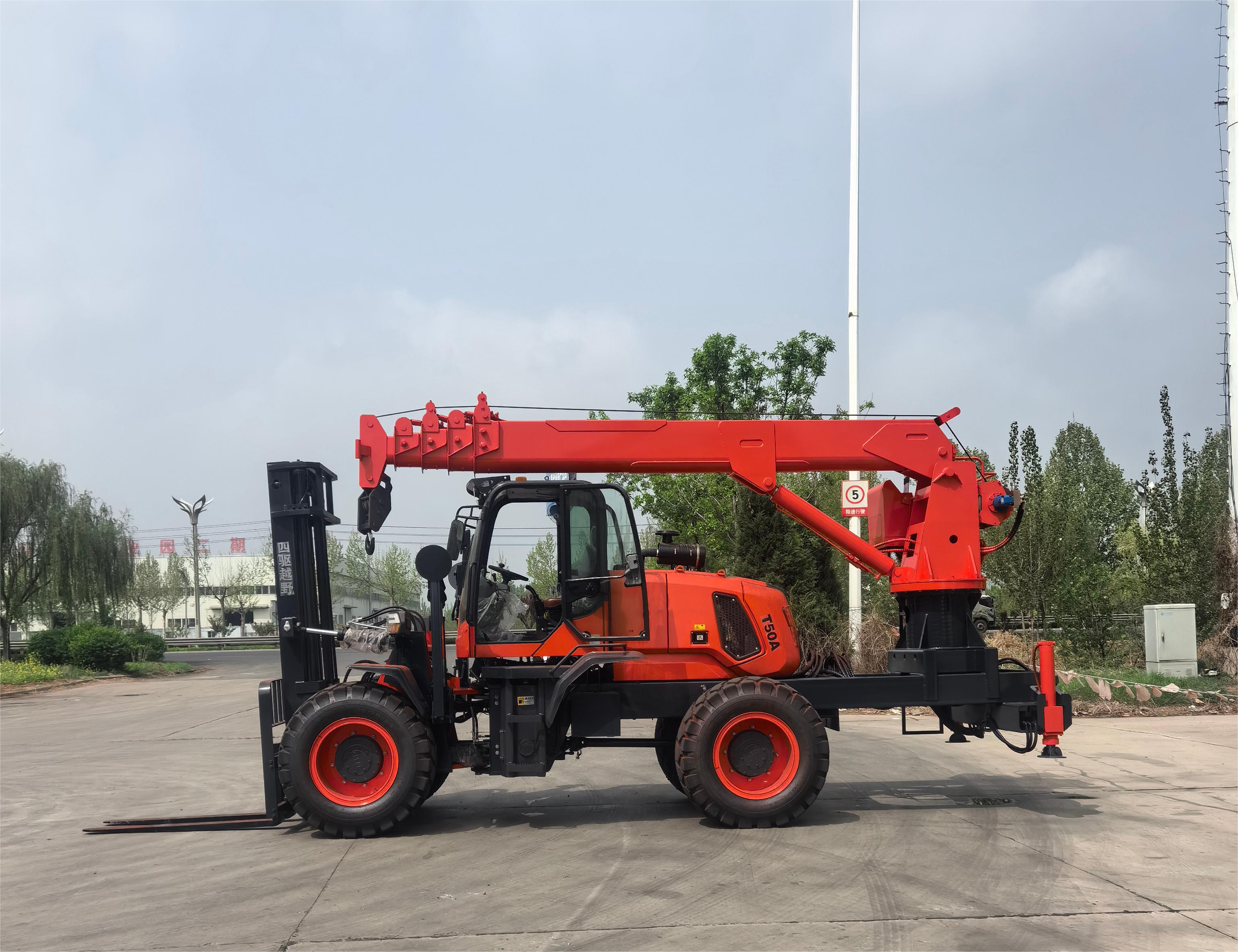

5Ton Forklift Crane

Forklift tail crane is a kind of multifunctional equipment which combines the functions of forklift truck and crane. It plays an important role in many fields such as logistics, construction and industrial production. The core advantage of this device is its high degree of flexibility and powerful lifting capacity. Forklift tail crane can move flexibly in small Spaces, with vertical lifting and horizontal handling functions, and can easily handle cargo of various shapes and weights. Compared with the traditional forklift, the lifting arm of the forklift tail crane can be telescoped and rotated, which greatly expands its operating range. It can not only handle pallet goods, but also lift large equipment or irregular objects to meet diverse handling needs. In the construction site, forklift tail crane can be used to lift construction materials and equipment; In the logistics warehouse, it can efficiently load and unload goods and improve logistics efficiency.



Forklift taillifts are designed to incorporate a variety of advanced technologies to meet complex operational requirements. Its lifting arm has good stability and durability. The telescopic function of the boom allows the forklift tail crane to flexibly adjust the operating range according to the size and position of the cargo, and the maximum lifting height can reach several meters or even higher. Forklift tail crane has good maneuverability and passability, and can drive smoothly on uneven ground or narrow channels. Its power system provides a strong power output, while equipped with advanced systems to ensure the stability of lifting and handling processes, forklift tail crane is also equipped with a variety of safety devices.

We independently design and manufacture the following four major product categories:Lifting Machinery: Truck crane, folding boom and straight boom truck-mounted crane, spider crane, rough-terrain crane.

Name	Item	Unit	Specification
5t off road forklift crane	Engine model	/	Yunnei 4102 supercharger high pressure common rail 80KW
	Axle	/	Large and medium wheel side cast steel bridge
	Transmission	/	265 dual high and low speed
	Tyre	/	216/70-24 tire
	Drive mode	/	Four-wheel drive
	Steering mode	/	Articulated
	Handle operation mode	/	Hydraulic valve control
	Standard lifting height	M	4
	Width of portal channel steel	cm	18
	Fork length	m	1.52
	Dimensions	m	4.5*2*2.95
chassis	Chassis model	/	Larger and reinforced round base

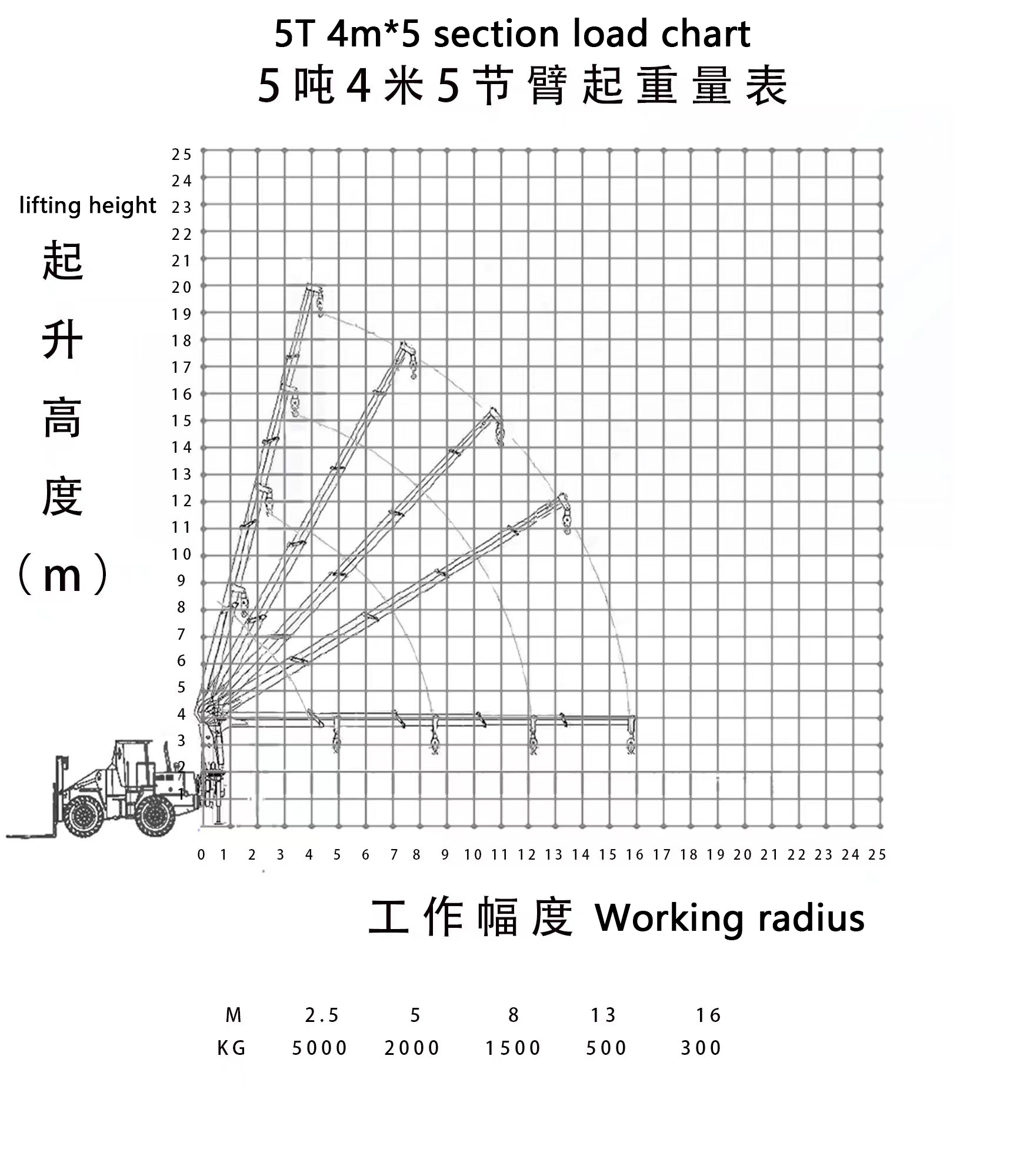

	Full extended arm length	m	4m*4 section boom
Operation model	Mid-air linkage operation
	Basic boom length	M	4
Parameter	Hydraulic oil pipe	/	Full sleeve
	Hydraulic tank	/	1set
	Hydraulic valves	/	1set
	Hydraulic winch (windlass)	T	5
	Hydraulic outriggers (enlarged and reinforced)	piece	5(2 on the sides, 3 on the back)
