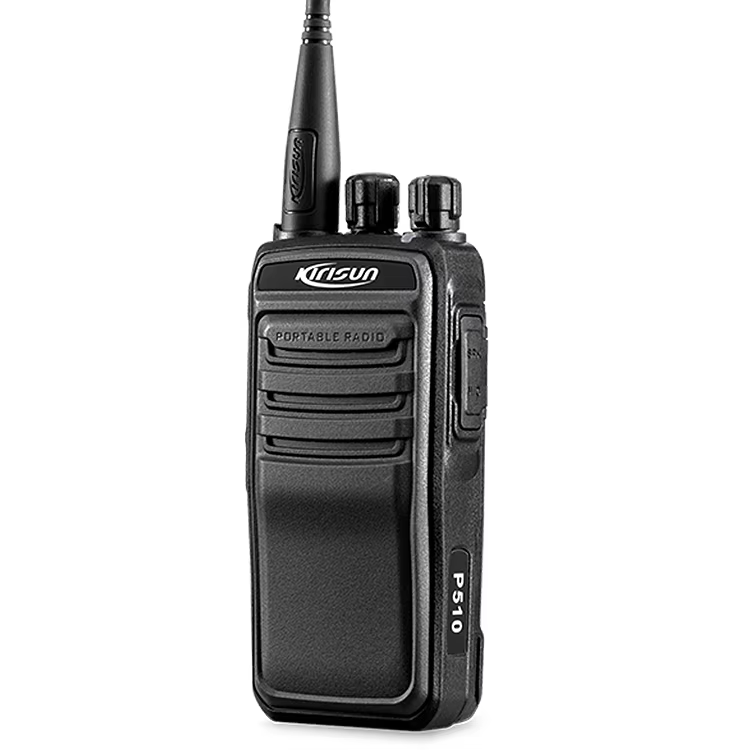

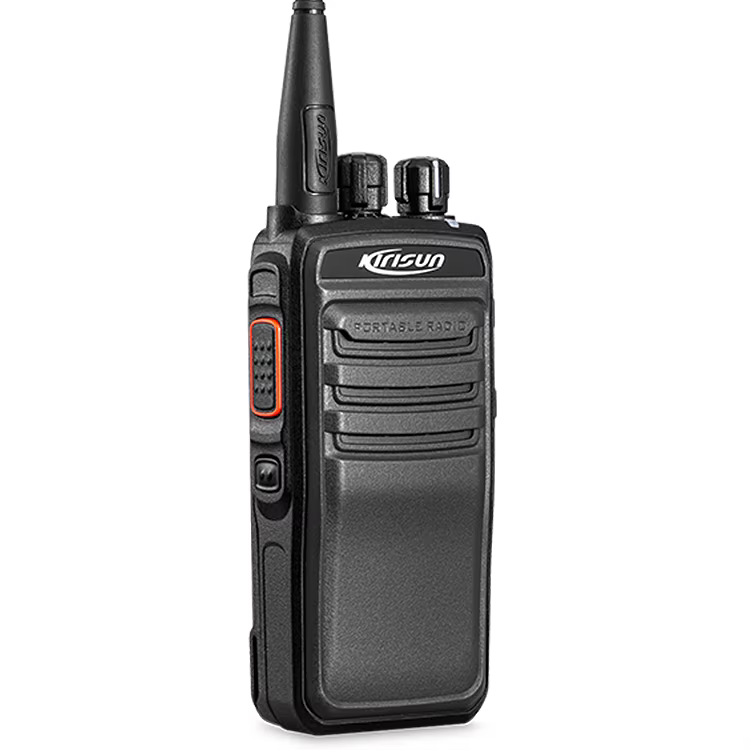

Kirisun P510 DMR VHF UHF Dual Band Two Way Radio Kirisun PT5200 Upgrade Walkie Talkie1
3 month agoKirisun P510 DMR VHF UHF Dual Band Walkie Talkie Two Way Radio Kirisun PT5200 Upgrade
-
Digital technology
- With narrowband digital speech coding and digital error correction, clear and loud voice quality is achieved even in noisy environments.
- The 40-bit digital encryption technology using the ARC algorithm ensures that the user's call content is not eavesdropped.
-
Multifunction
- Supports radio detection, remote (decoding), activation (decoding), separate work and remote monitoring (decoding) and other management business functions.
- Support color code authentication function, only machines with the same color code can communicate. When used on a relay system with color code, signals with different color codes will be rejected and transferred to prevent incoming signals.
- Supports both regular and private alarm modes for more alarm combinations.
- Support for encryption when reading and writing parameters
- In the relay mode, when the communication range of the repeater is disconnected or the repeater is not working normally, one-button off-network is supported, and the handheld radio can communicate in the direct-frequency mode.
- Press the monitor function button to force the receiver circuit to open and listen to all signals on the current channel. This feature is especially effective for receiving weak signals and can also be used when troubleshooting machine problems.
-
Connectivity
- Supports both digital and analog modes for smooth transitions in analog systems.
- With dual-slot technology, the call capacity is doubled under the same bandwidth (relay mode), which greatly alleviates the pressure of increasing spectrum resources. It also saves equipment investment and supports 2-way equipment under one relay. Simultaneous communication.
- By connecting the radio to the computer through the data line, the application parameters such as the frequency and function of the radio can be set, and the RF parameters and upgrades of the commissioning radio are not supported.
GENERAL SPECIFICATIONS | |
Band
|
VHF: 136-174MHz, UHF: 350-400MHz / 400-470MHz |
Channel Spacing | 12.5/25KHz |
Channel Capacity | 256 |
Dimensions(HXWXD) | 116 x 54 x 31mm |
Weight(Radio + Standard 1600mAh Battery) | 280g |
Power Supply(Nominal) | 7.4V DC |
TRANSMITTER SPECIFICATIONS | |
Modulation |
16KφF3E/11KφF3E(Analog) 4FSK(Digital) |
Digital Protocol | ETSI TS 102 361-1,-2,-3 |
Conducted/Radiated Emissions | -36dBm<1GHz, -30dBm>1GHz |
Adjacent Channel Power |
60dB(12.5KHz channel), 70dB(25KHz channel) |
Frequency Stability | ±0.5ppm |
AUDIO SPECIFICATIONS | |
Digital Vocoder Type | AMBE+2 |
Audio Response | TIA603D |
Rated Audio | 0.5 W |
Audio Distortion at Rated Audio | 3% |
Hum and Noise | -40 dB (12.5 kHz channel), -45 dB (25 kHz channel) |
Conducted Spurious Emissions (TIA603D) | -57 dBm |
